Auxiliary Power Outlet: Service and Repair

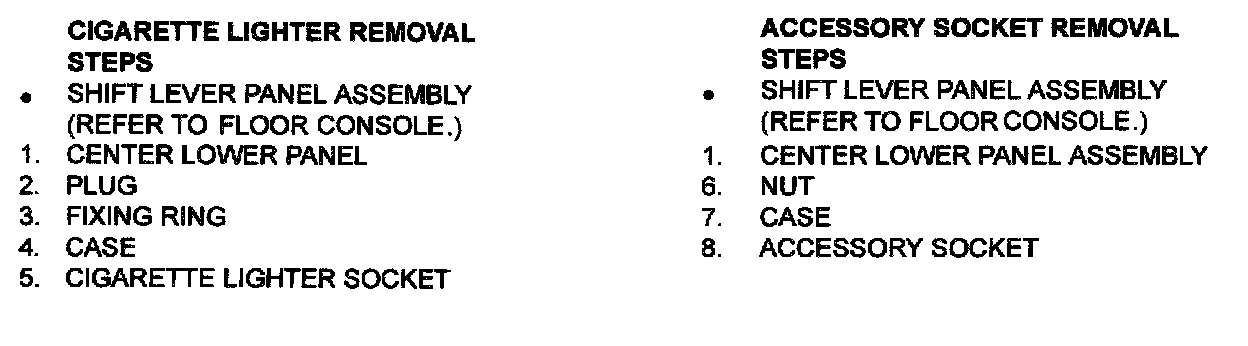

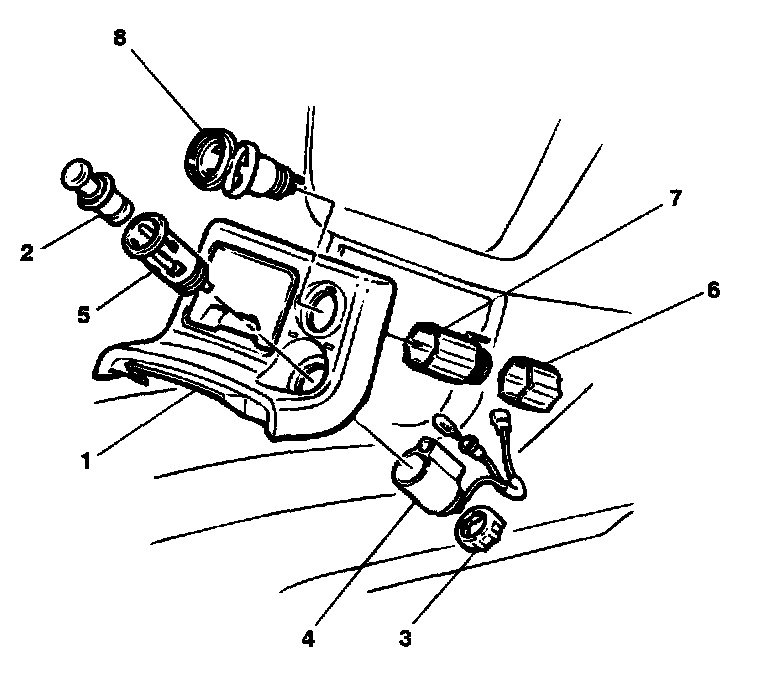

Cigarette Lighter, Accessory Socket (Part 1):



Cigarette Lighter, Accessory Socket (Part 2):
