Home >> Mitsubishi >> 2002 >> Galant ES V6-3.0L SOHC >> Repair and Diagnosis >> Power and Ground Distribution >> Grounding Point >> Locations

Grounding Point: Locations

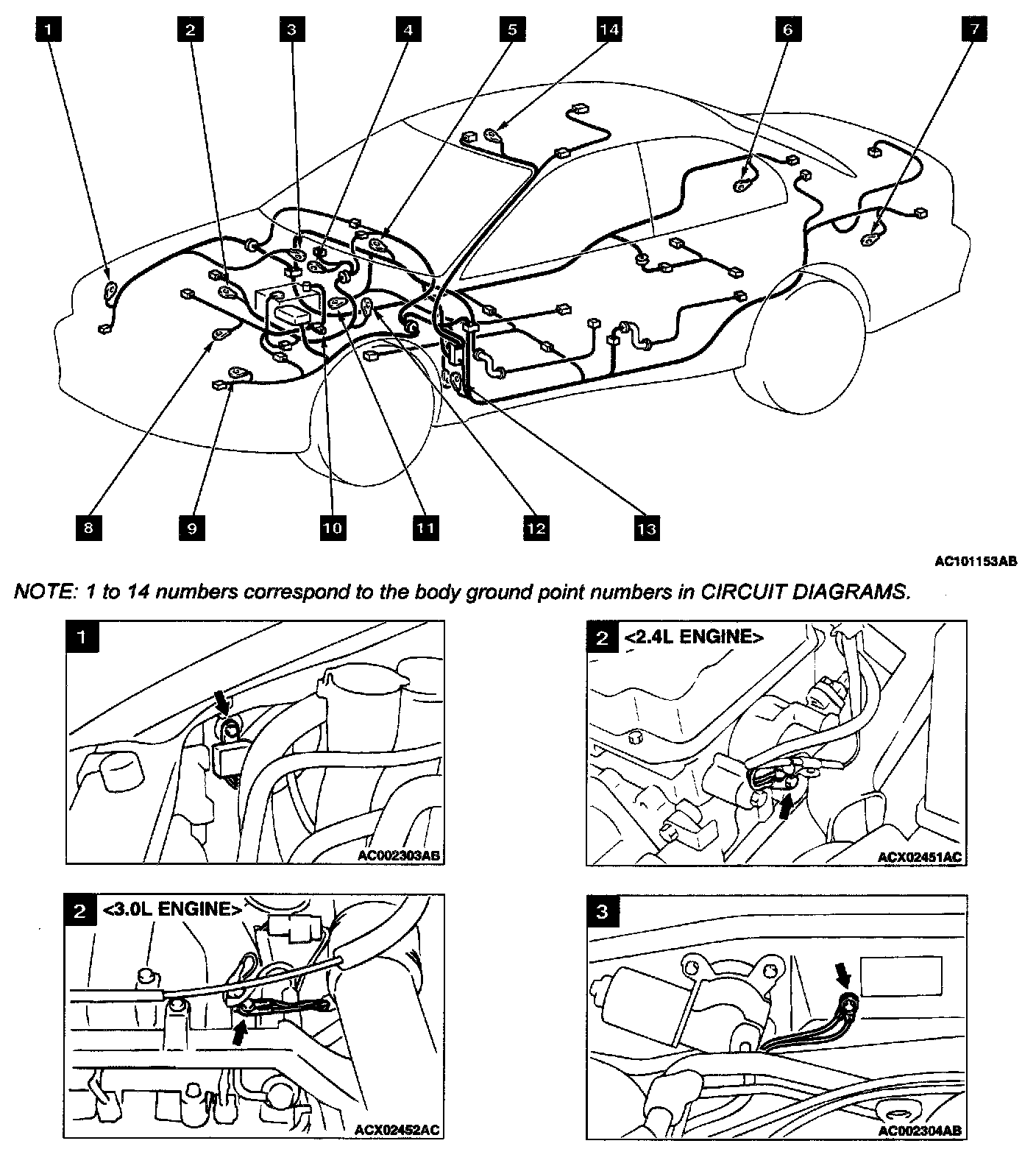

Grounding Overall View And Views 1 - 3:



Views 4 - 12:

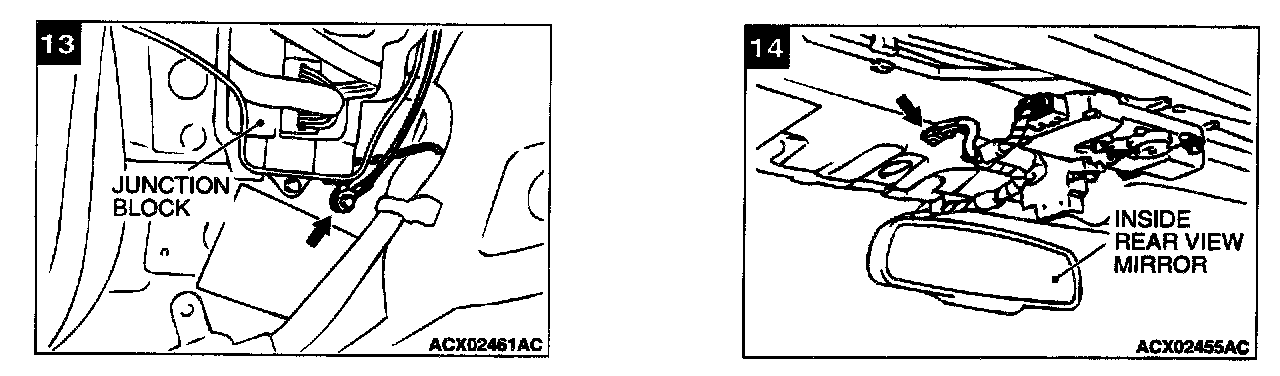

Views 13 - 14:
