Galant LS V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Sensors
Sensors
Location Index:

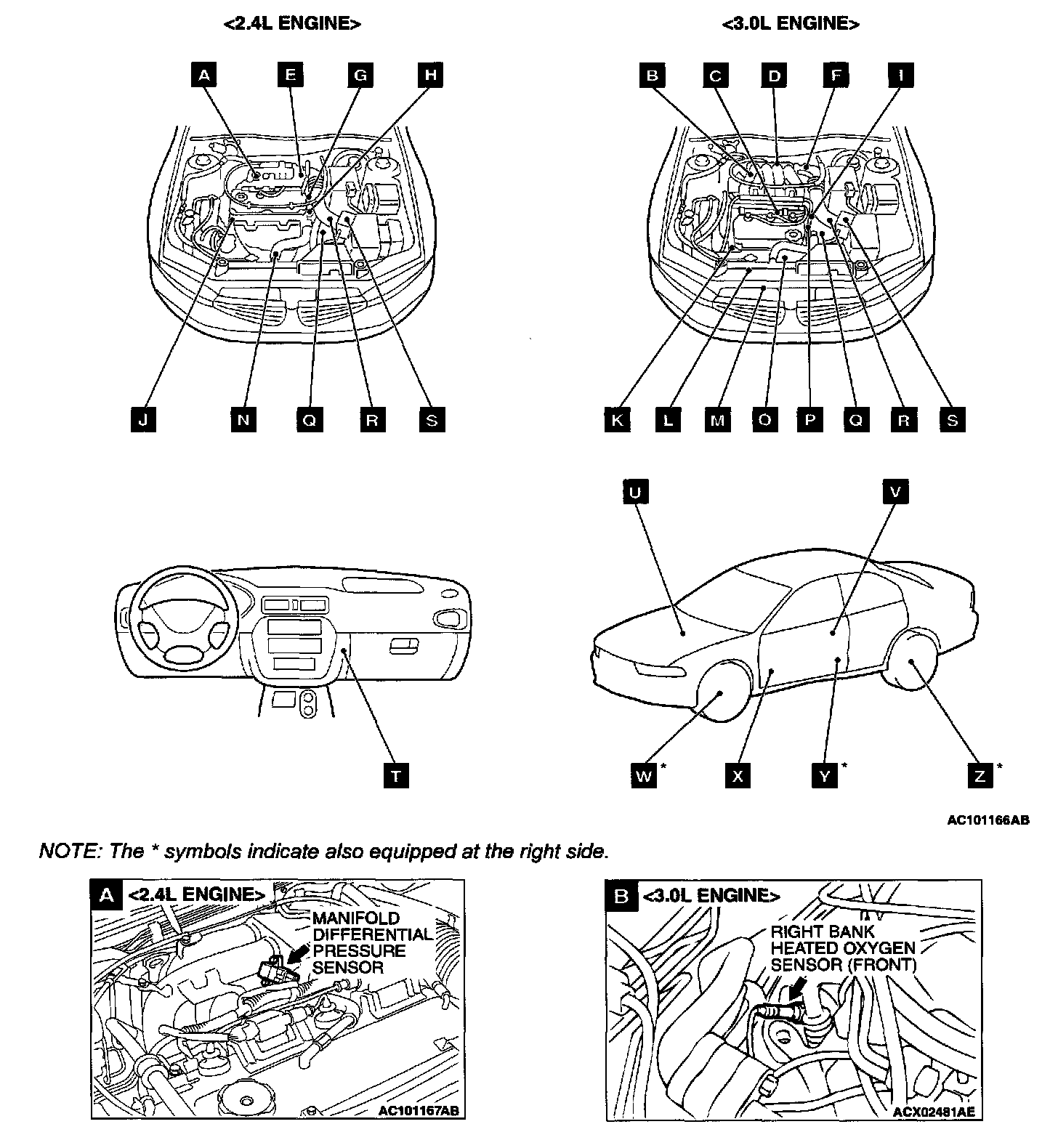

Overall View And Views A - B:

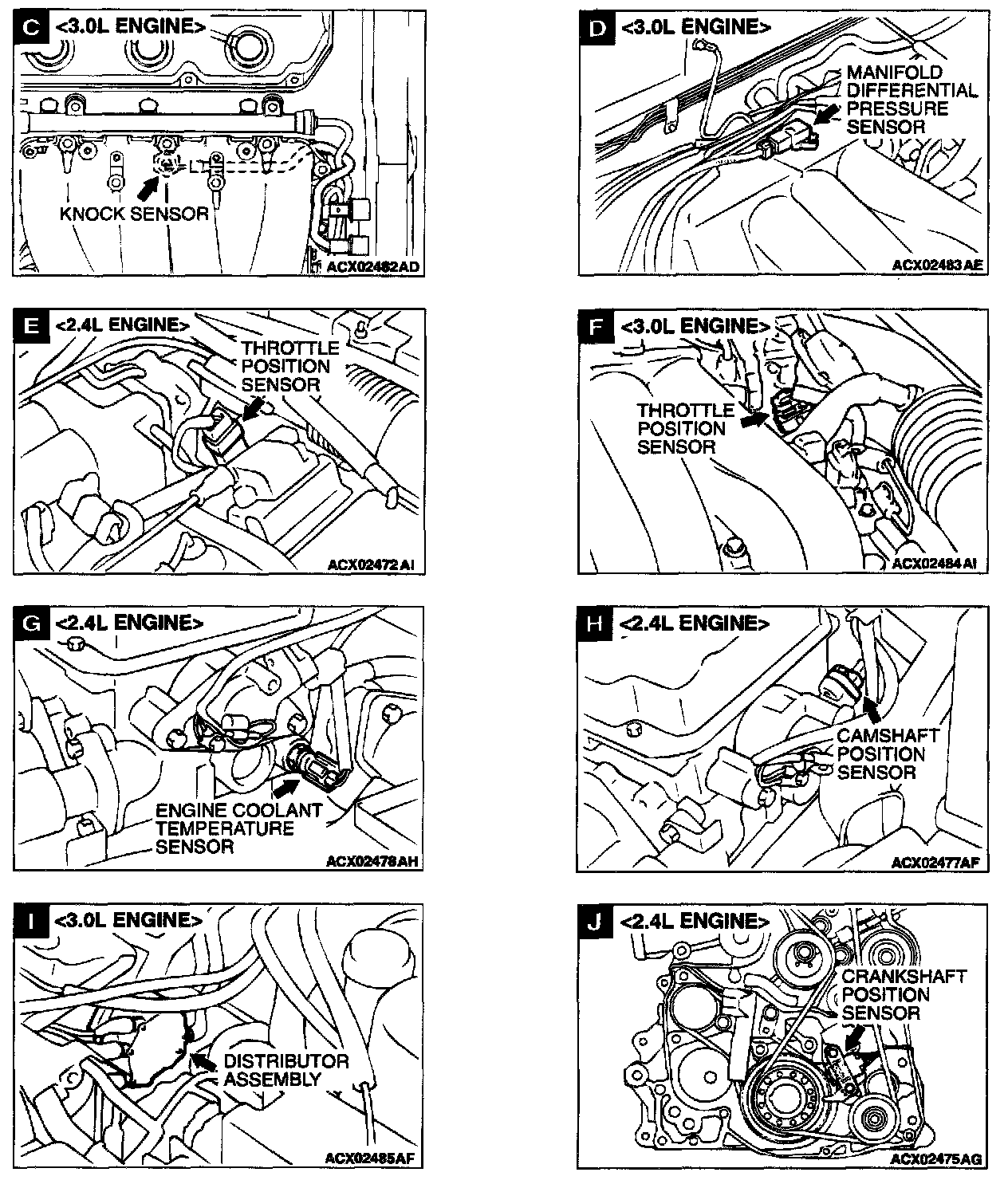

Views C - J:
Views K - R:
Views S - Z:
