Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
2002
>>
Galant LS V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Solenoids and Solenoid Valves
Solenoids and Solenoid Valves

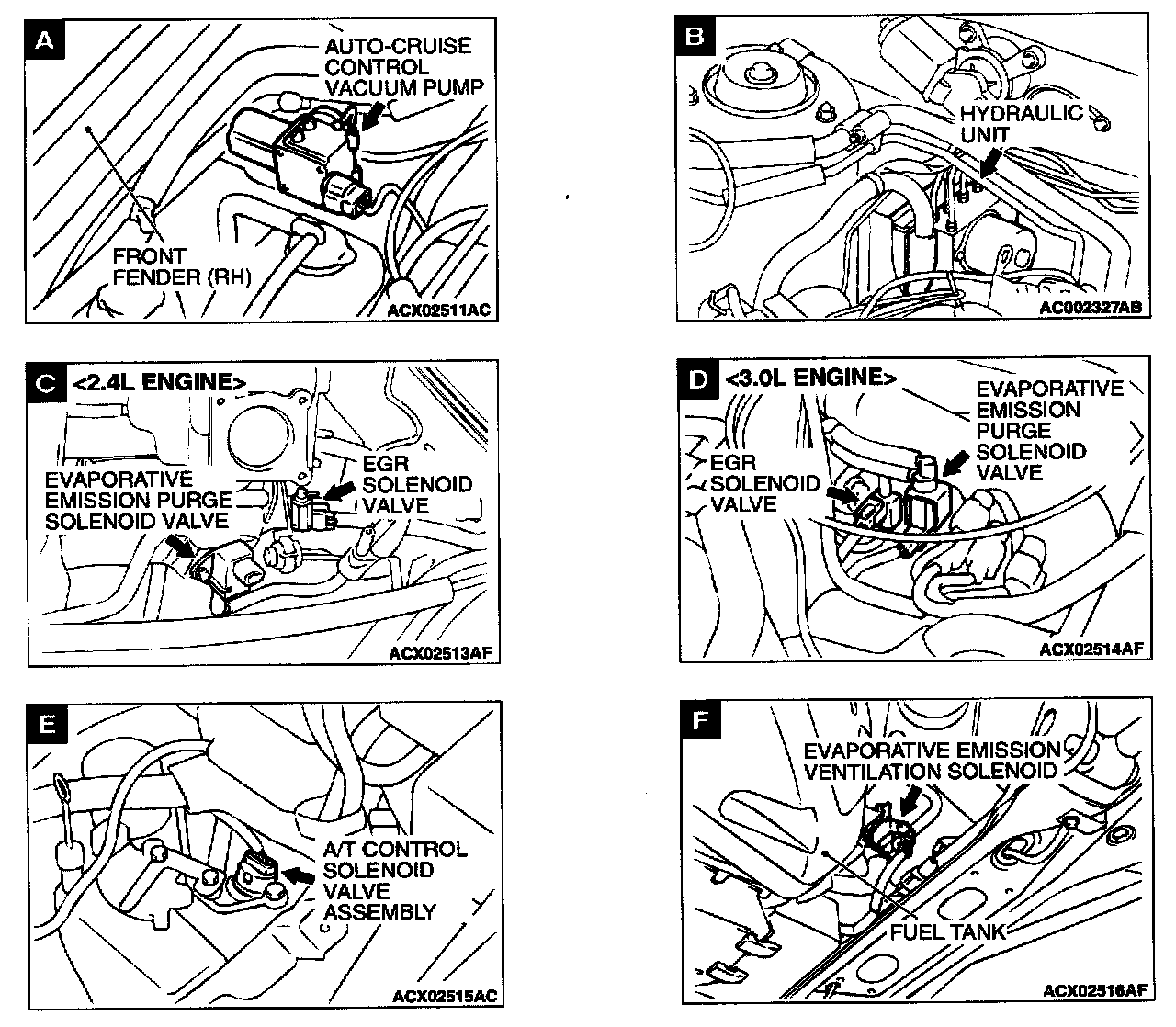

Location Index And Overall View:
Views A - F:
