F Connectors - Trunk Harness
F Connectors - Trunk Harness

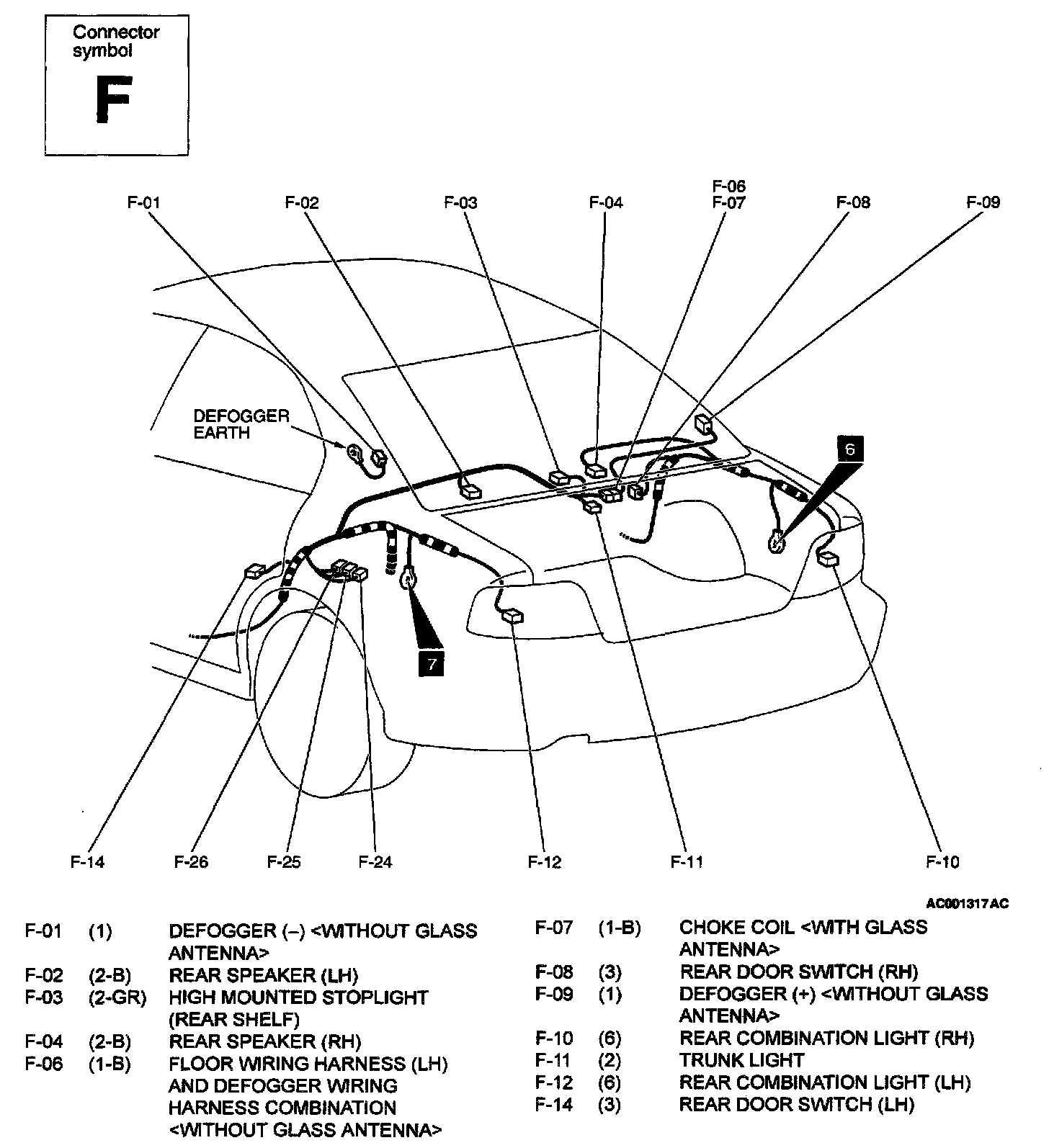

Trunk - F Connector [01 (1) Thru 14 (3)]:

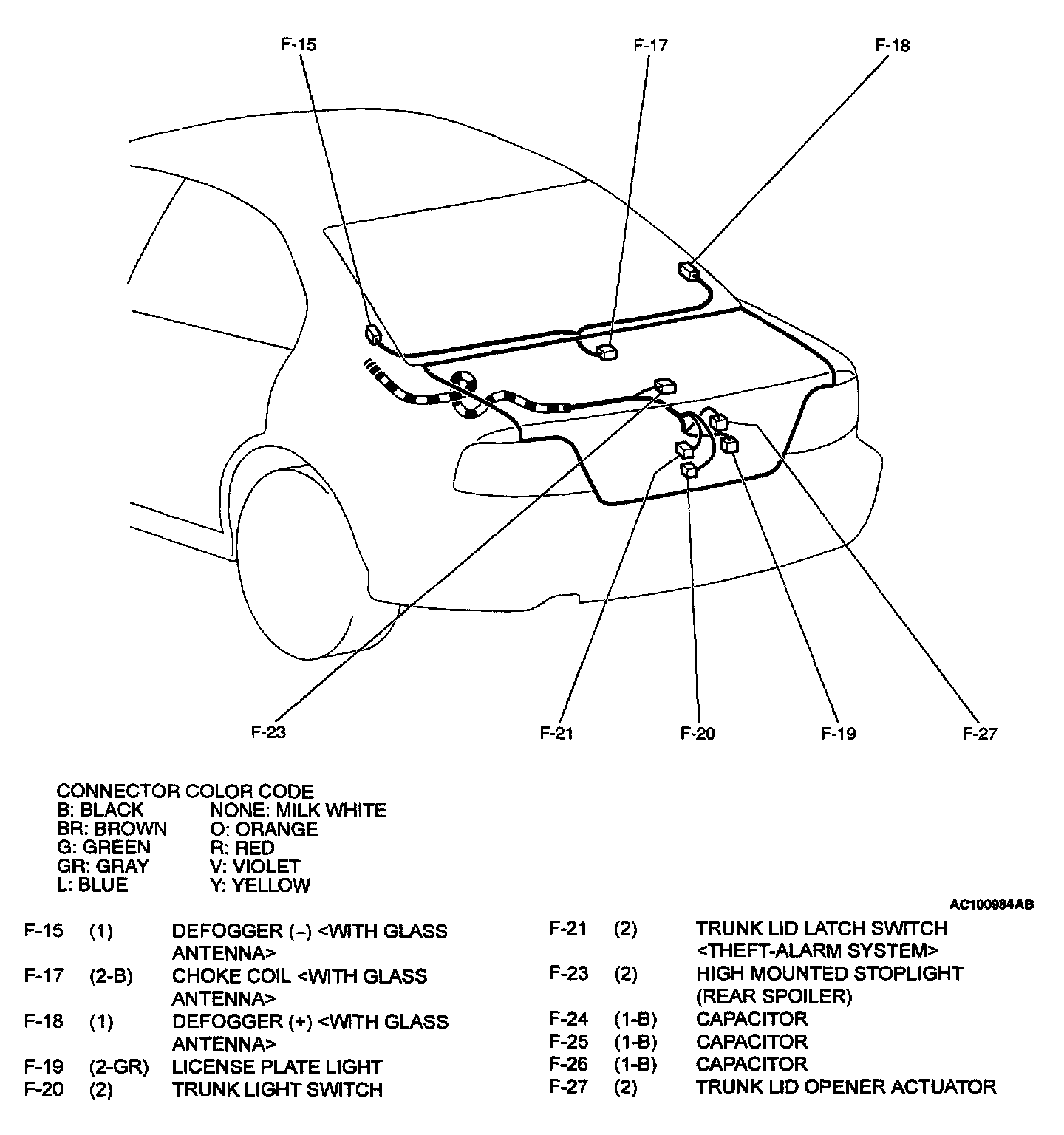

Trunk - F Connector [15 (1) Thru 27 (2)]:
