Radio, Stereo, and Compact Disc

Radio And CD Player (4-Speaker System) Part 1:



Part 2:

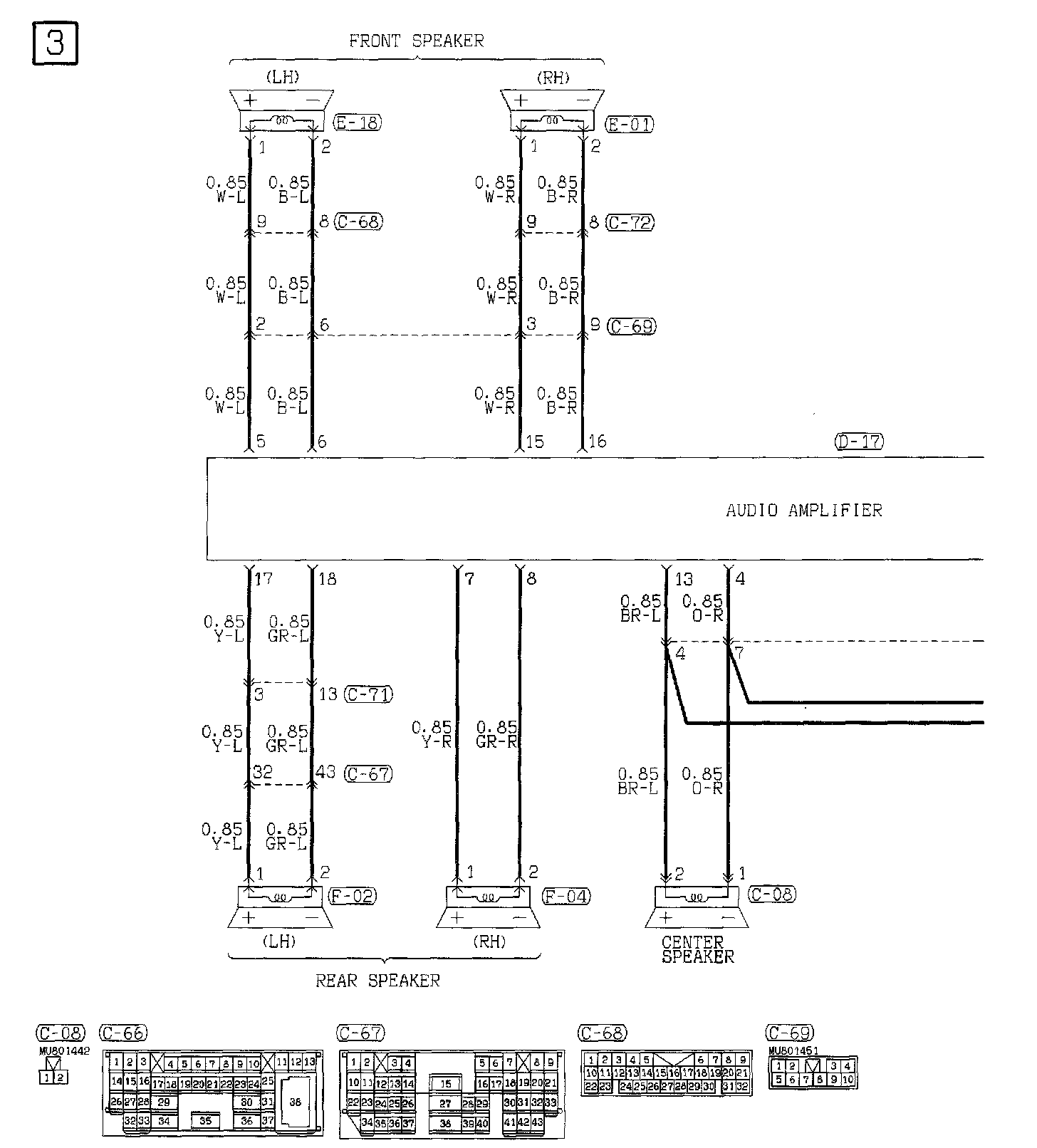

Radio And CD Player (7-Speaker System) Part 1:



Part 2:



Part 3:



Part 4:
