Trunk Lamp

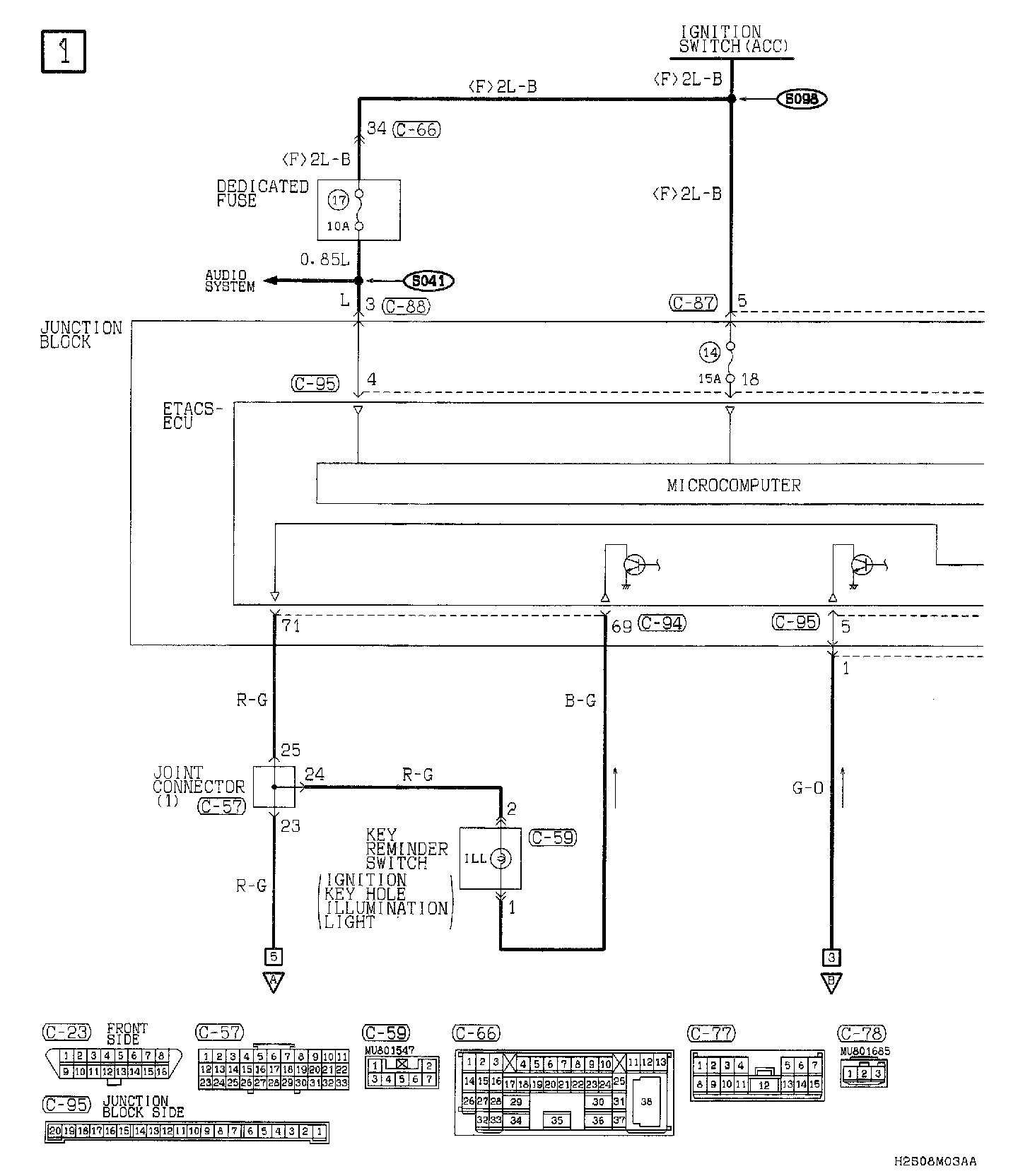

Dome, Trunk, & Ignition Key Illumination Light Part 1:

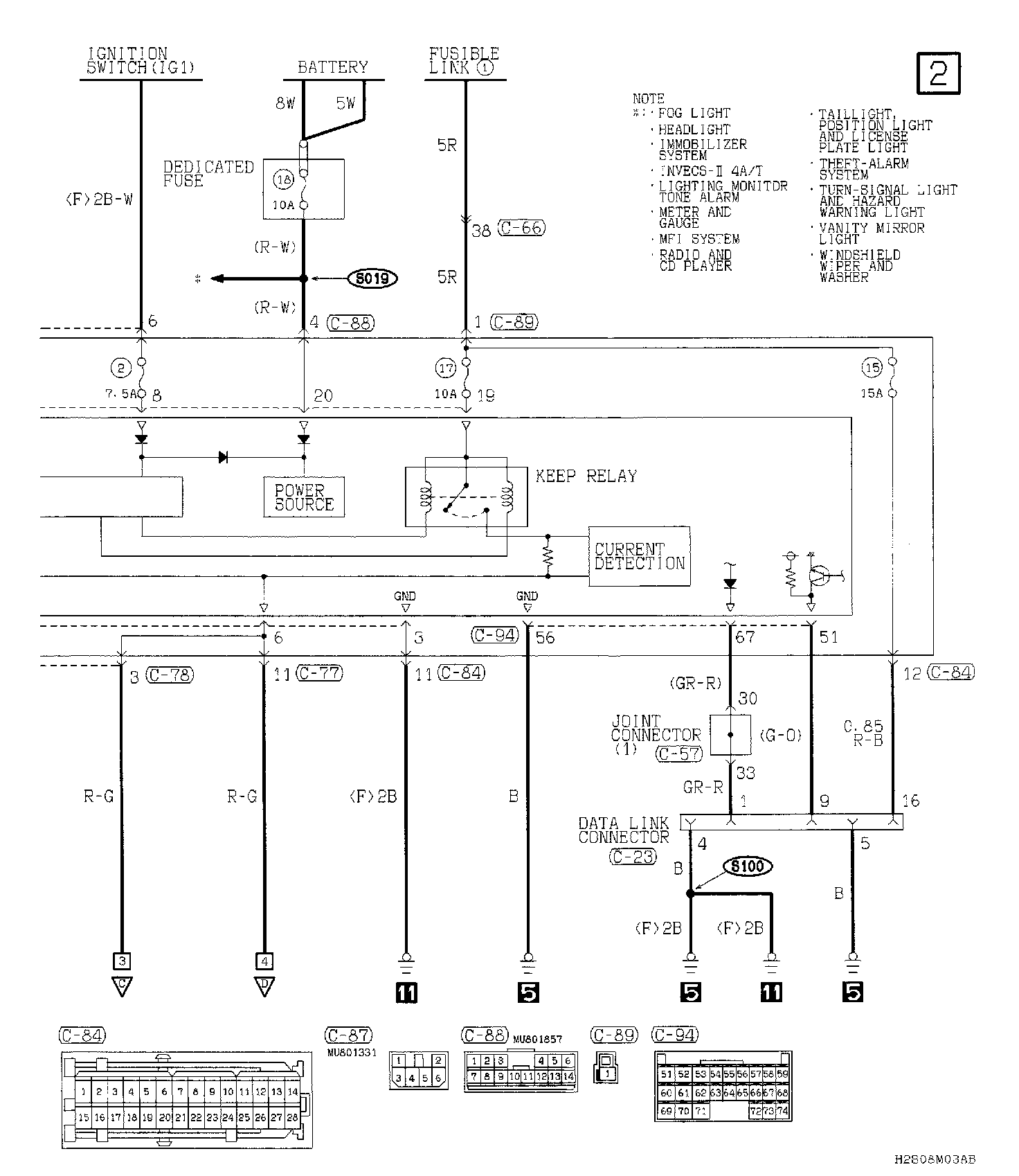

Part 2:

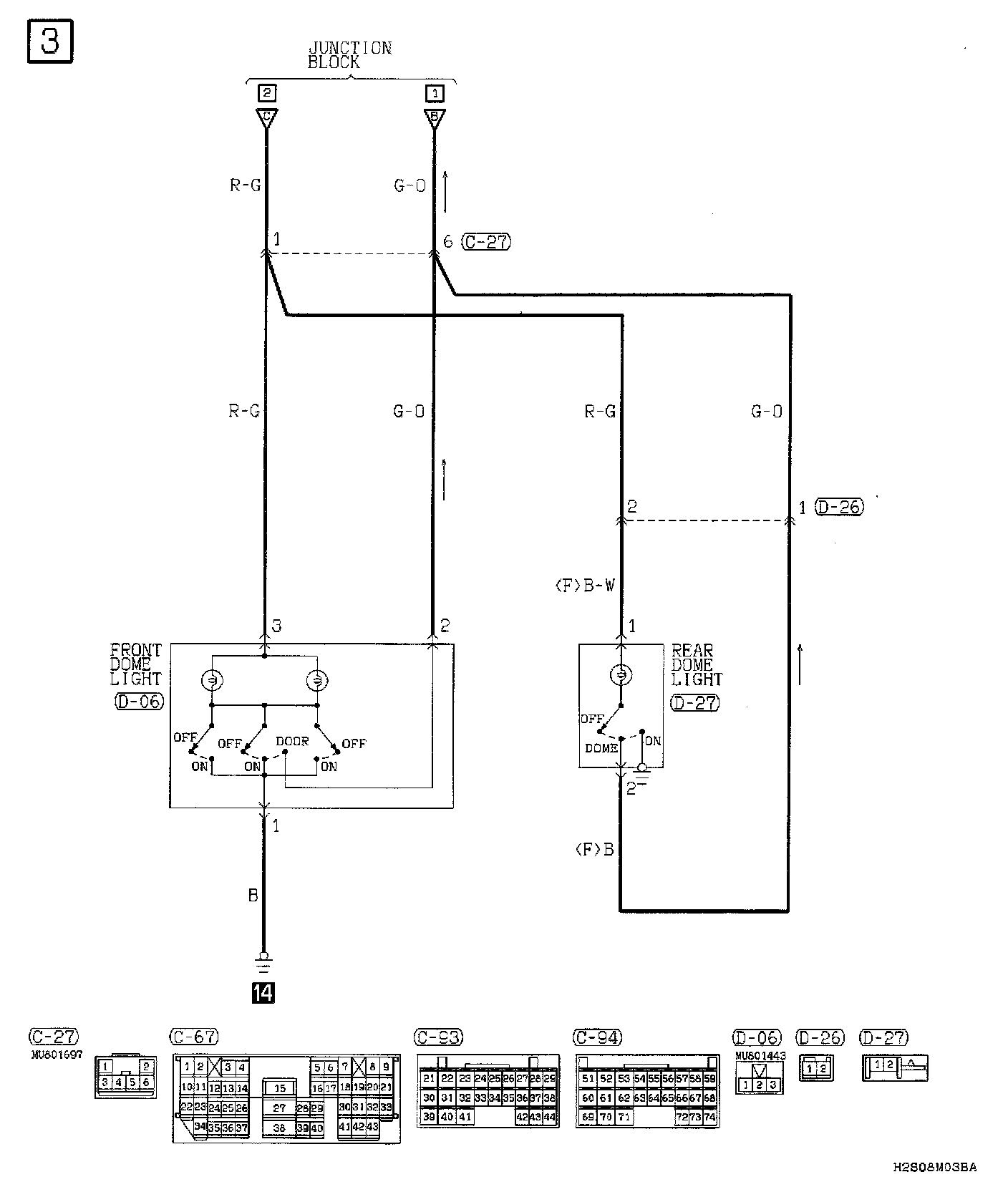

Part 3:



Part 4:



Part 5:



Part 6:
