Engine and Transaxle Harness - B Connectors

Engine And Transaxle (3.0L) - B Connector [03 (2-BR) Thru 19 (2-GR)]:

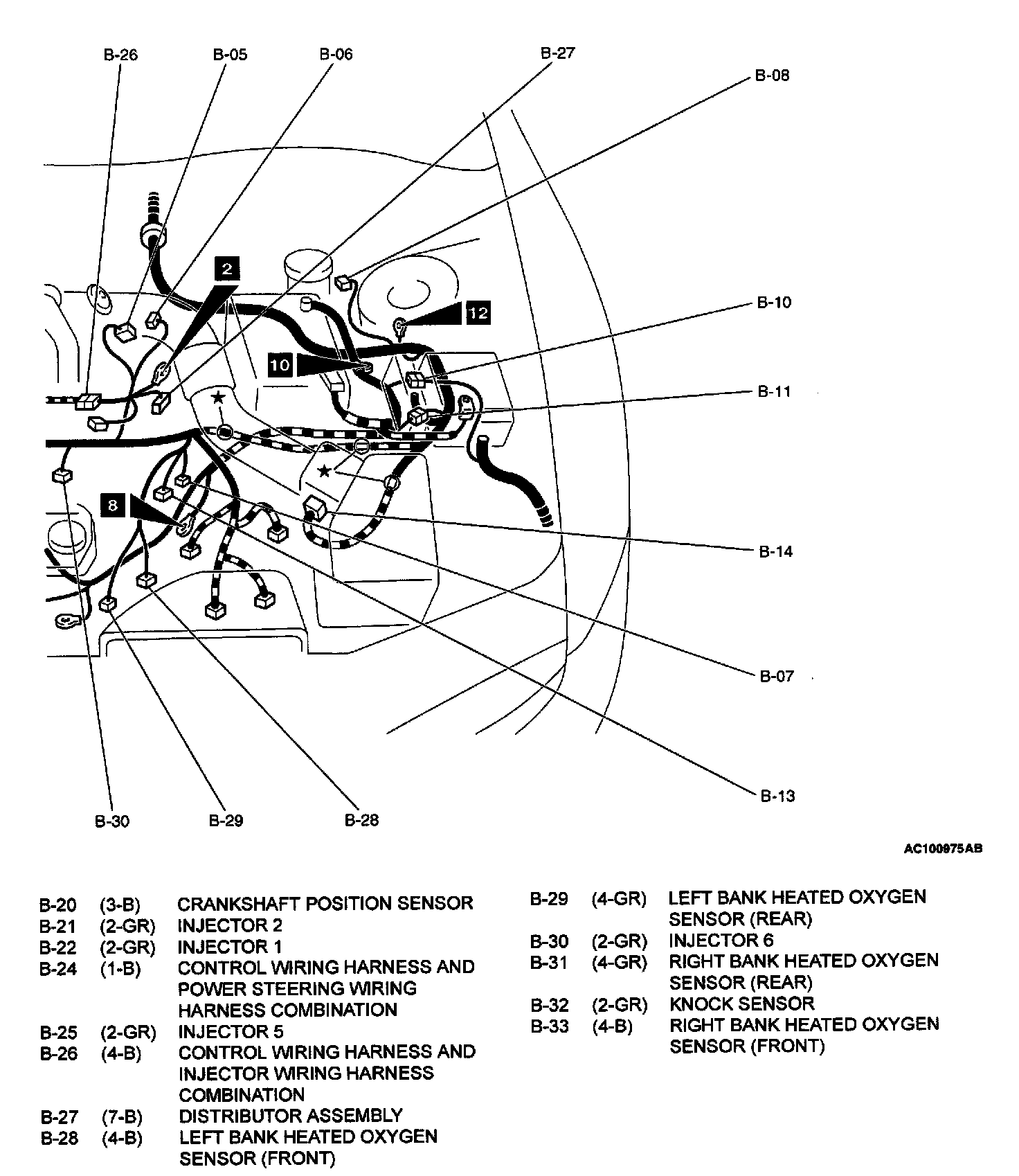

Engine And Transaxle (3.0L) - B Connector [20 (3-B) Thru 33 (4-B)]:



Engine And Transaxle (3.0L) - B Connector [34 (1-B) Thru 42 (1)]:

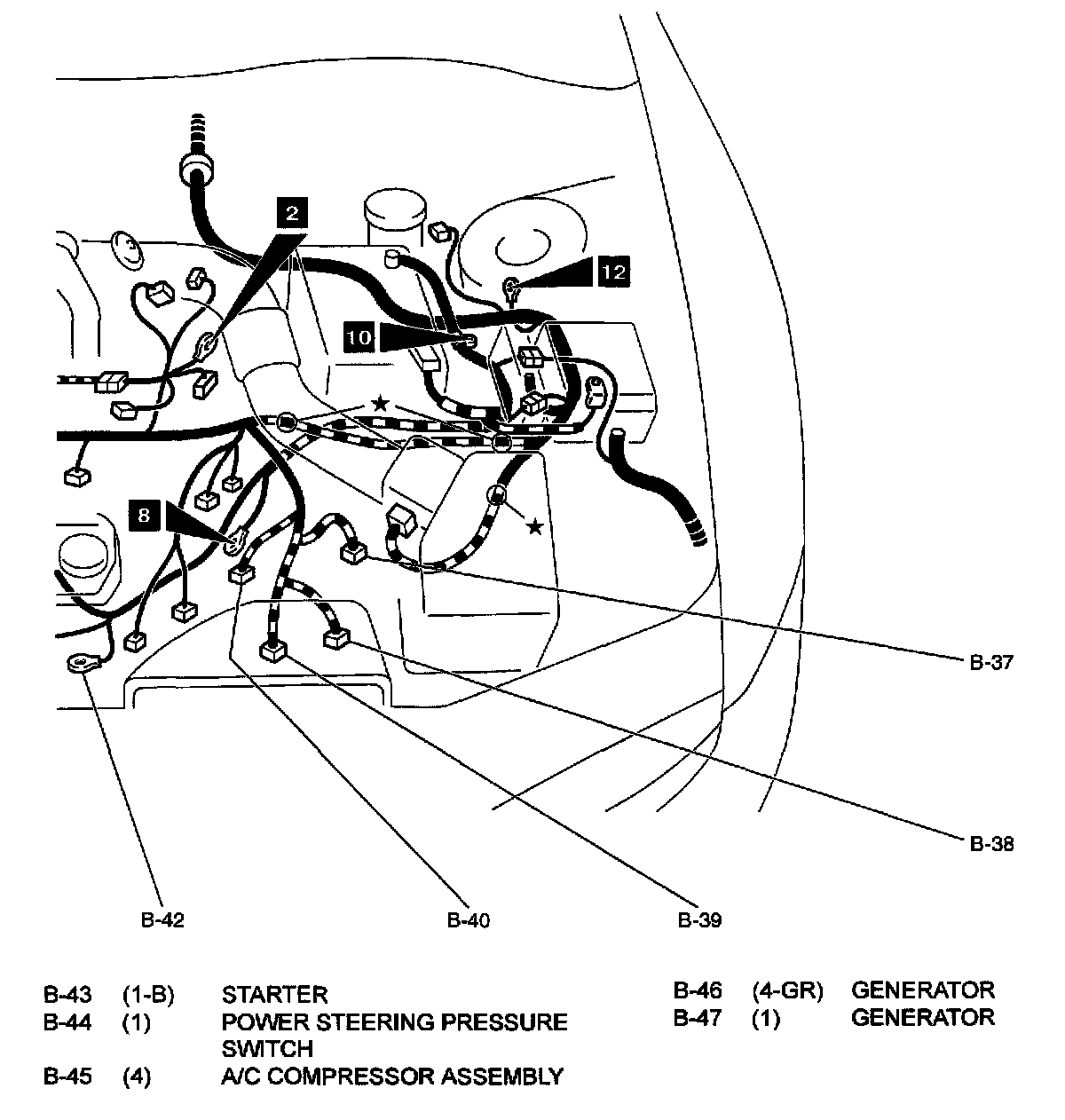

Engine And Transaxle (3.0L) - B Connector [43 (1-B) Thru 47 (1)]:
