Galant LS V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Splices
Splices
S001:

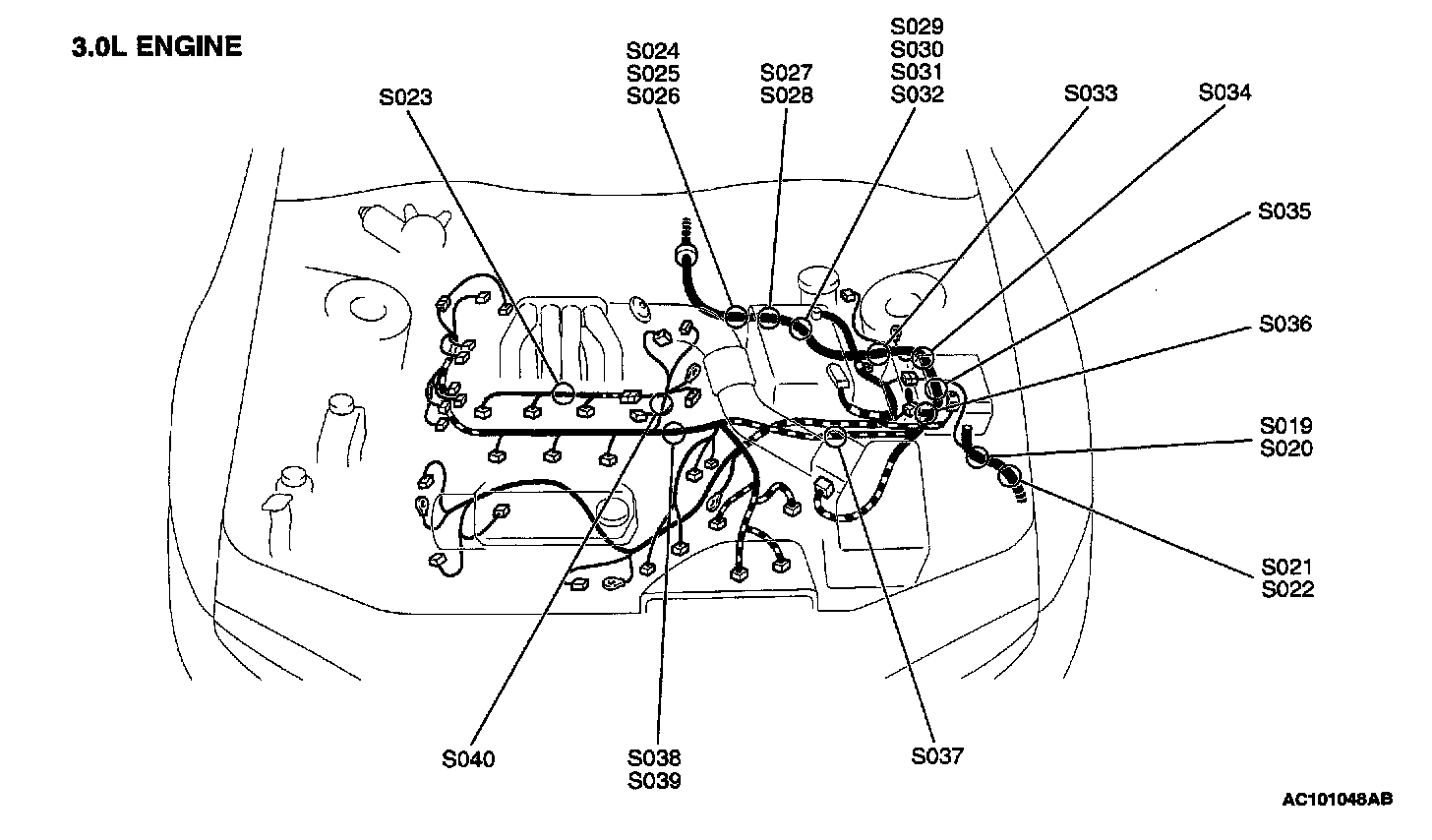

S019 - S040:

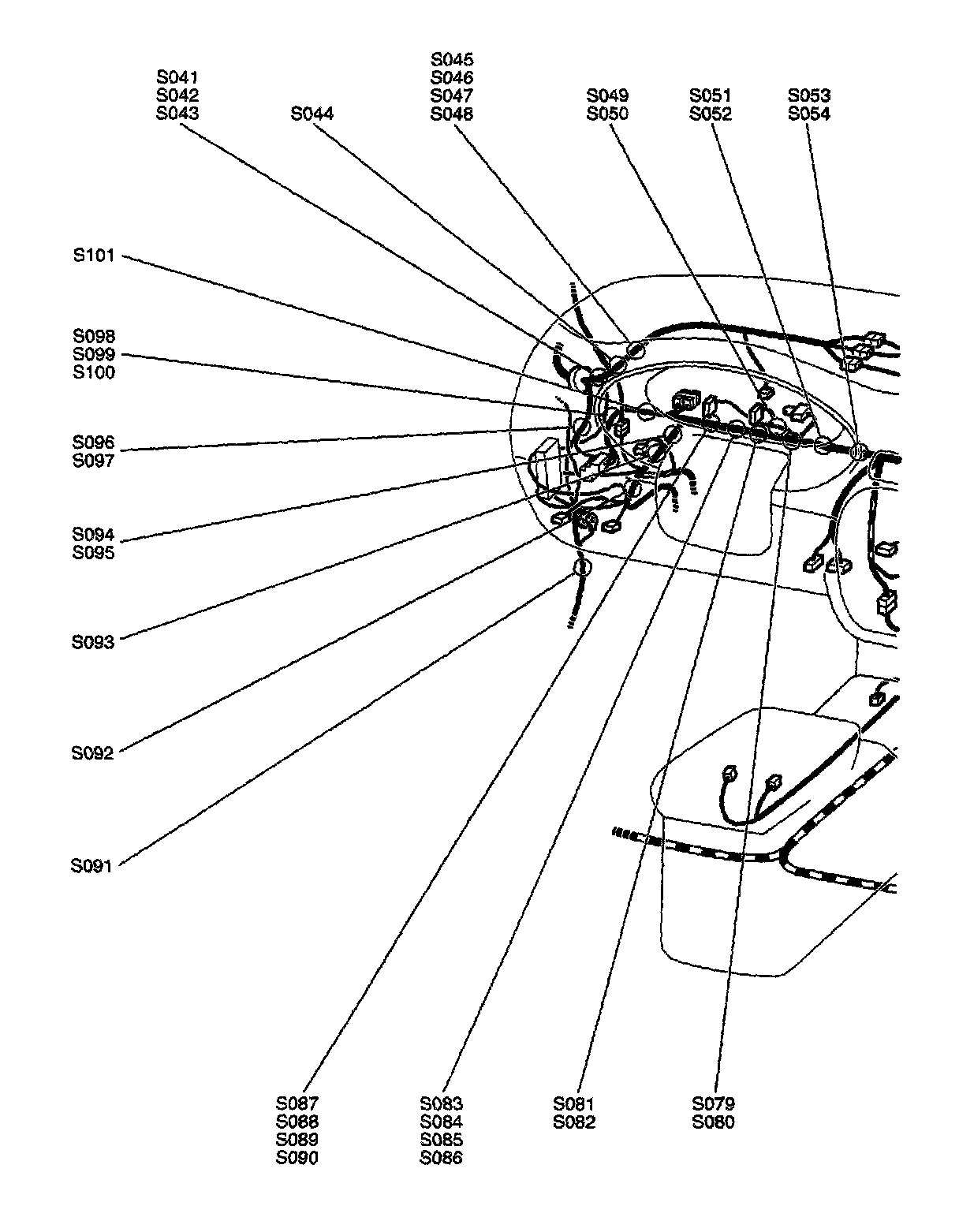

S041 - S054 And S079 - S101:
S055 - S078:

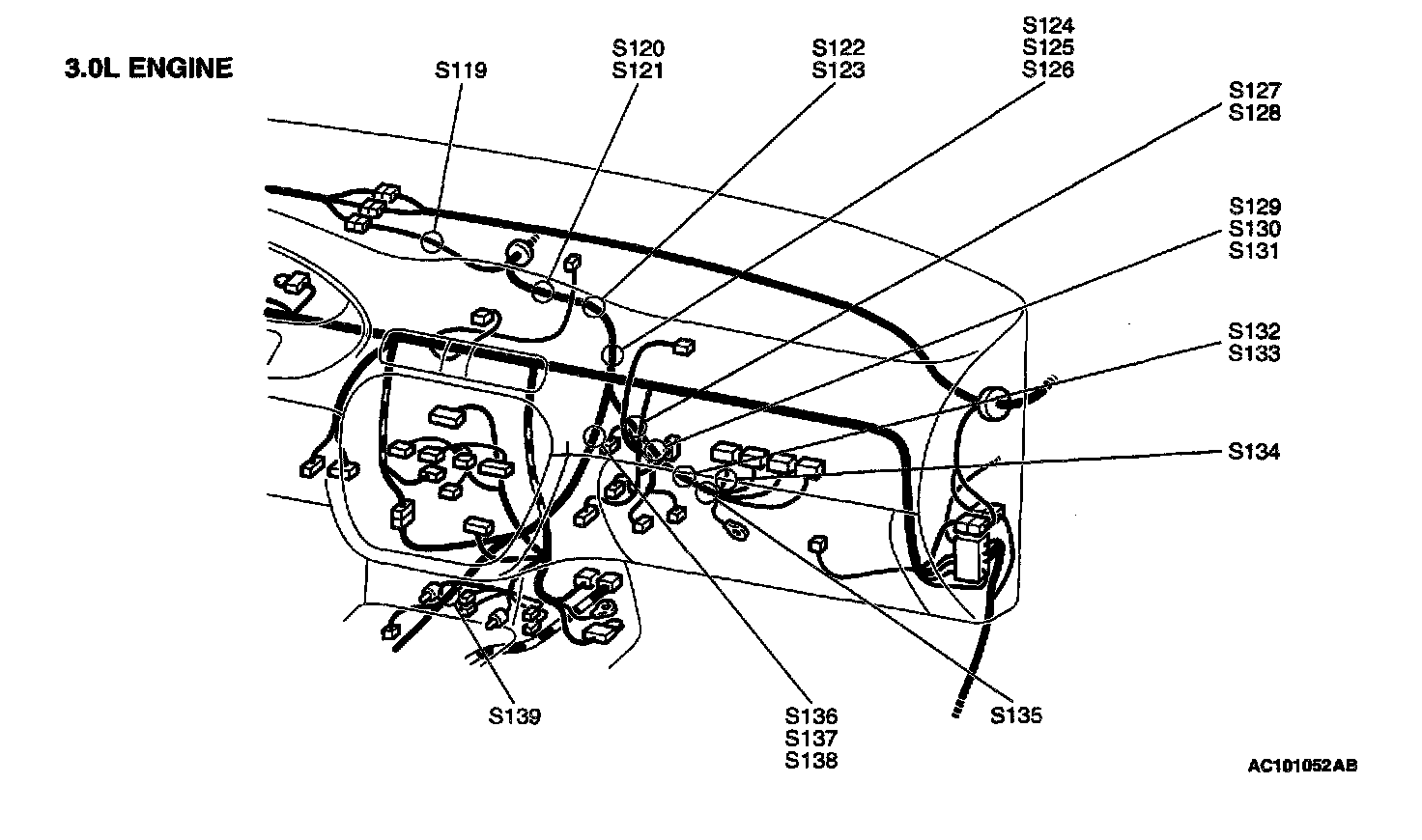

S119 - S139:

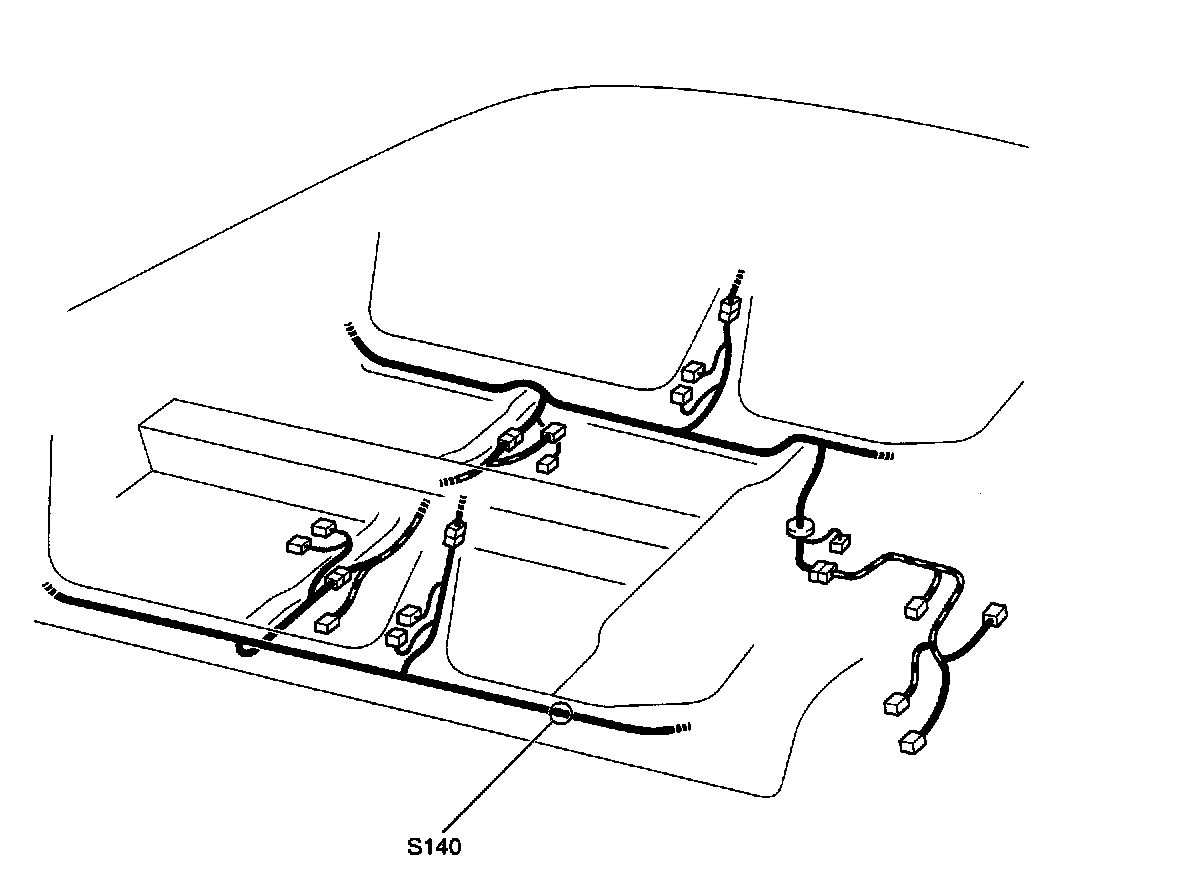

S140:

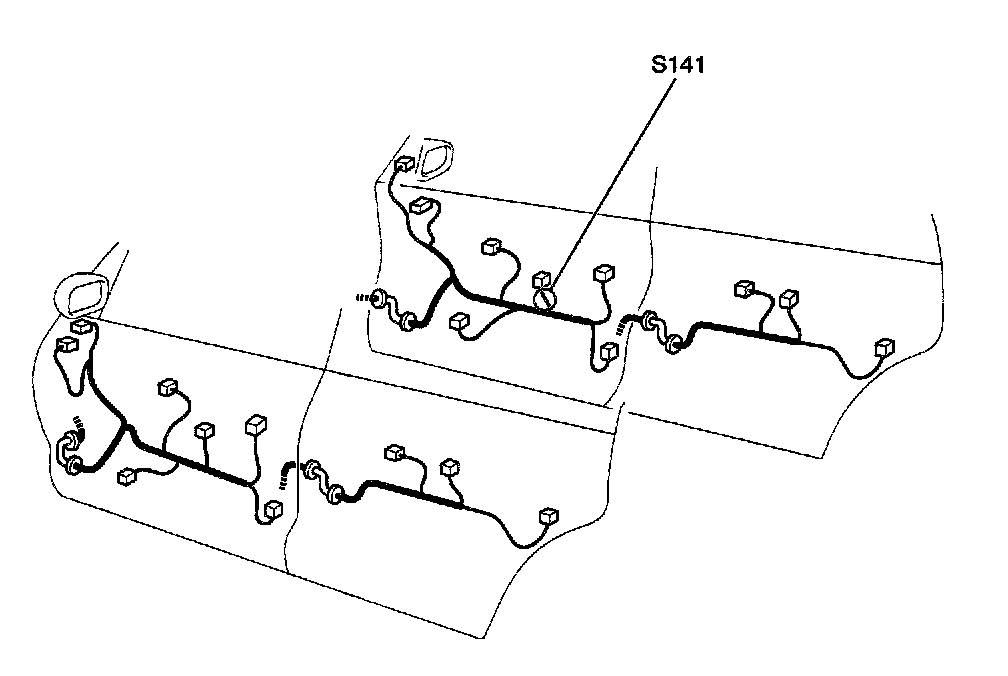

S141:

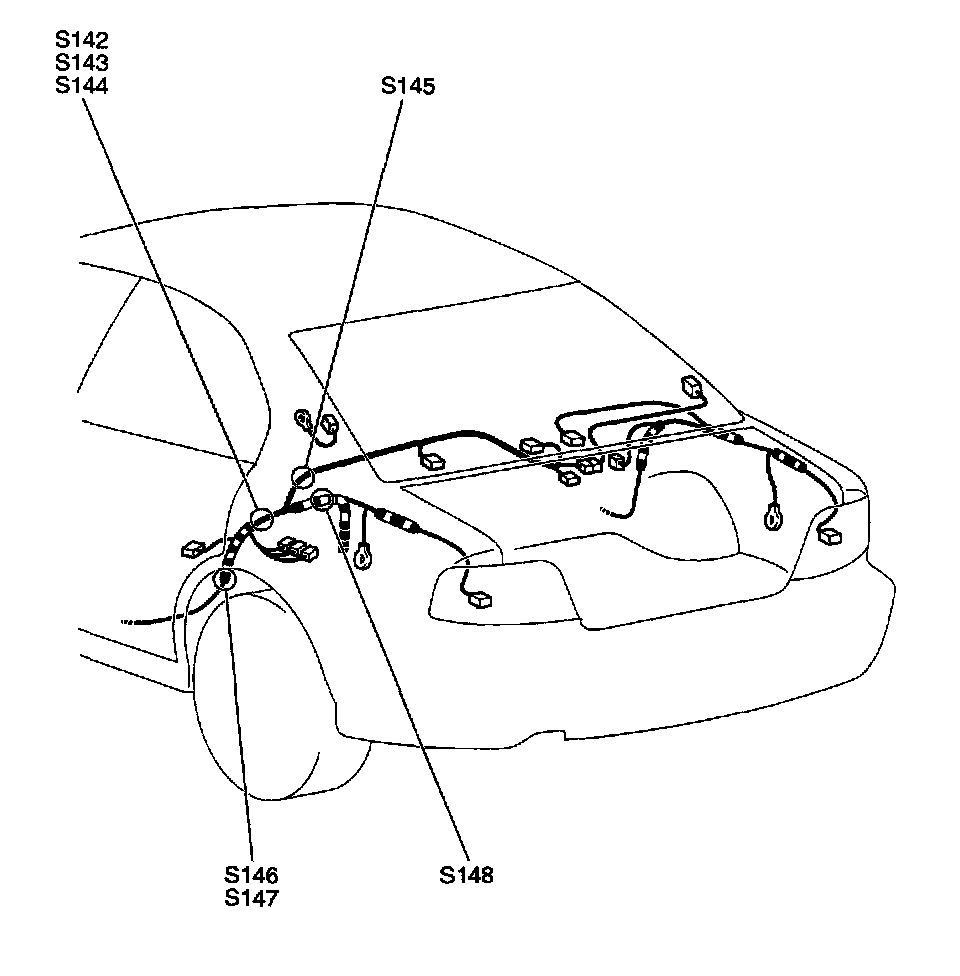

S142 - S148:
