Home
>>
Mitsubishi
>>
2002
>>
Galant LS V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fusible Link
>>
Application and ID
Fusible Link: Application and ID

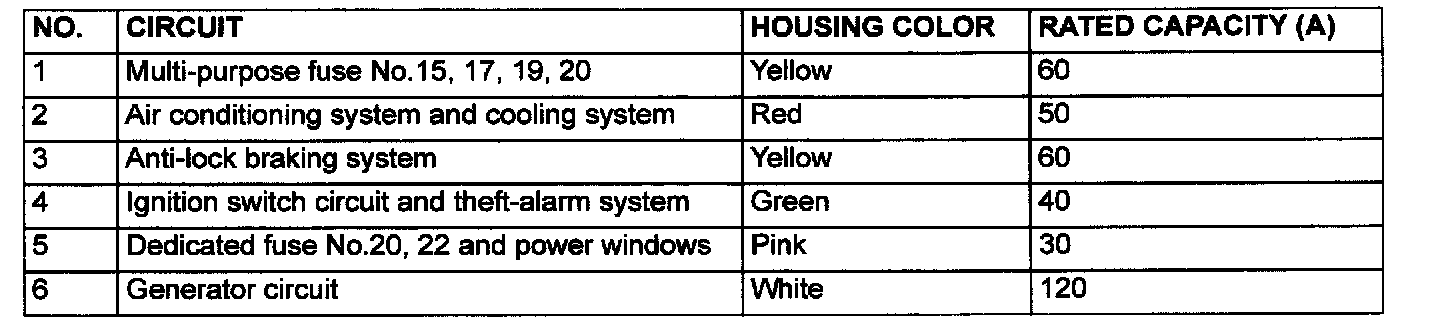

Fusible Link Location Index:

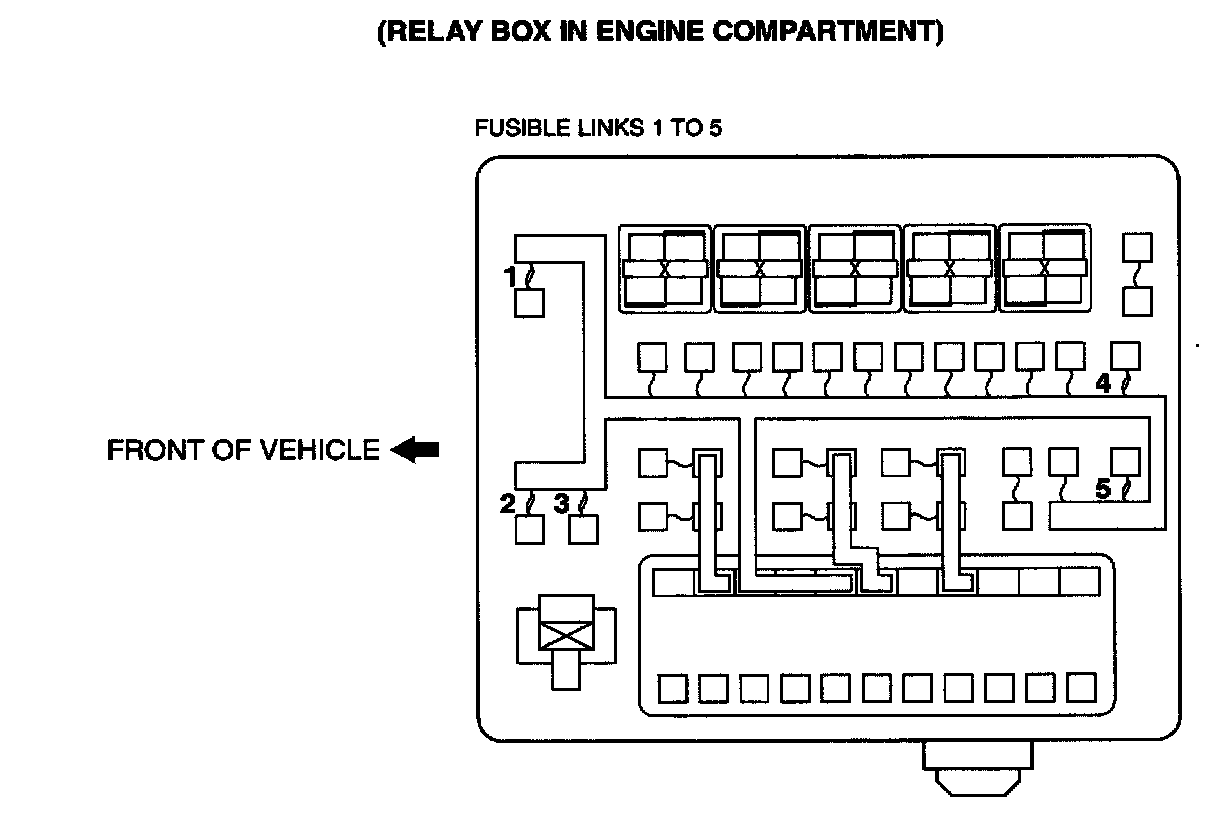

Fusible Link 1 - 5 (Relay Box In Engine Compartment):

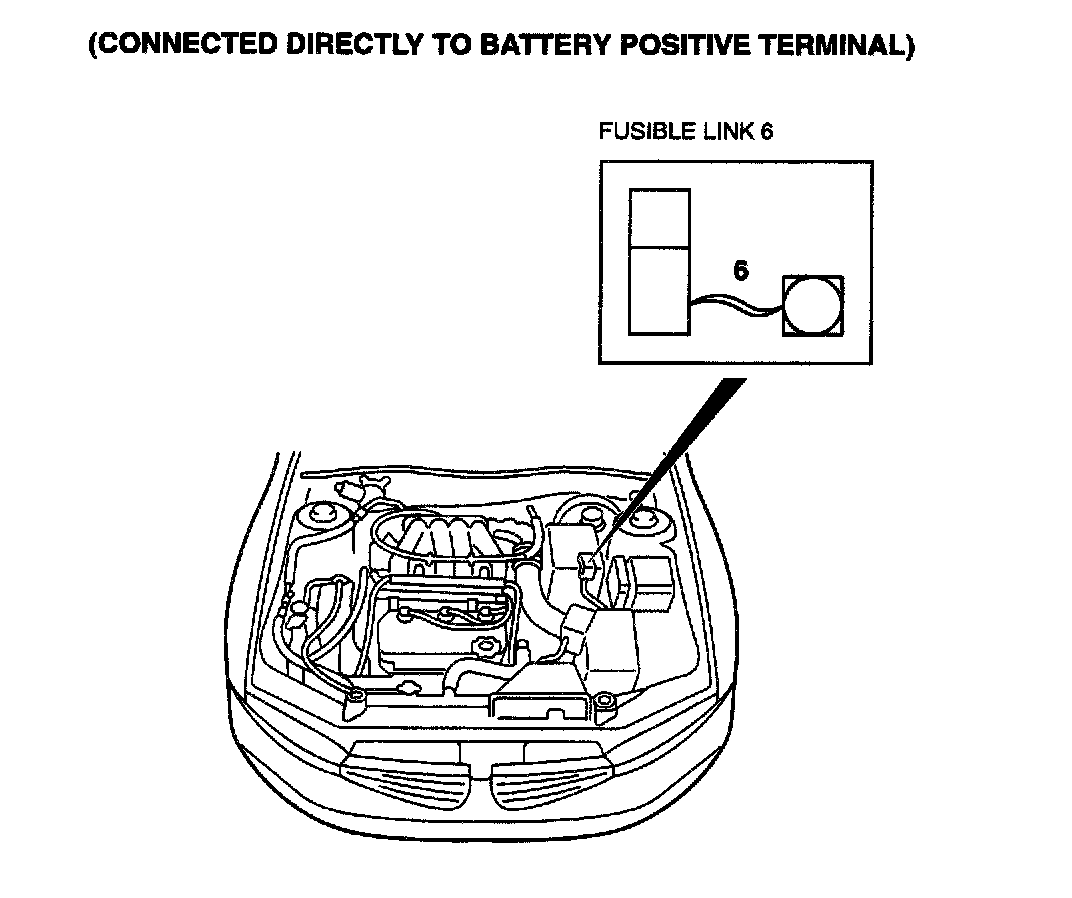

Fusible Link 6 (At Battery Positive Terminal):
