Computers and Control Systems: Diagrams

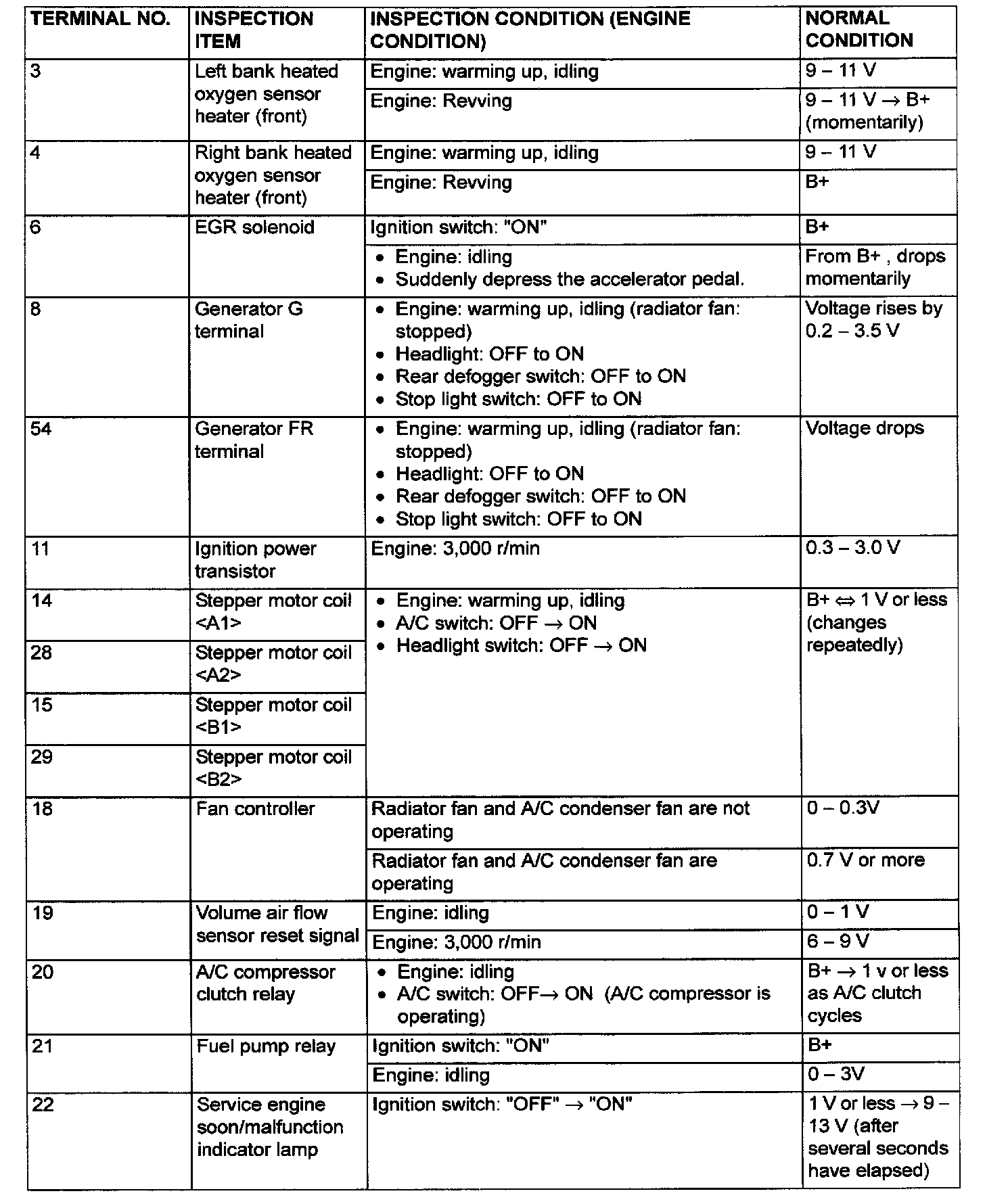

PCM Connector Terminal Arrangement And Terminals Part 1:

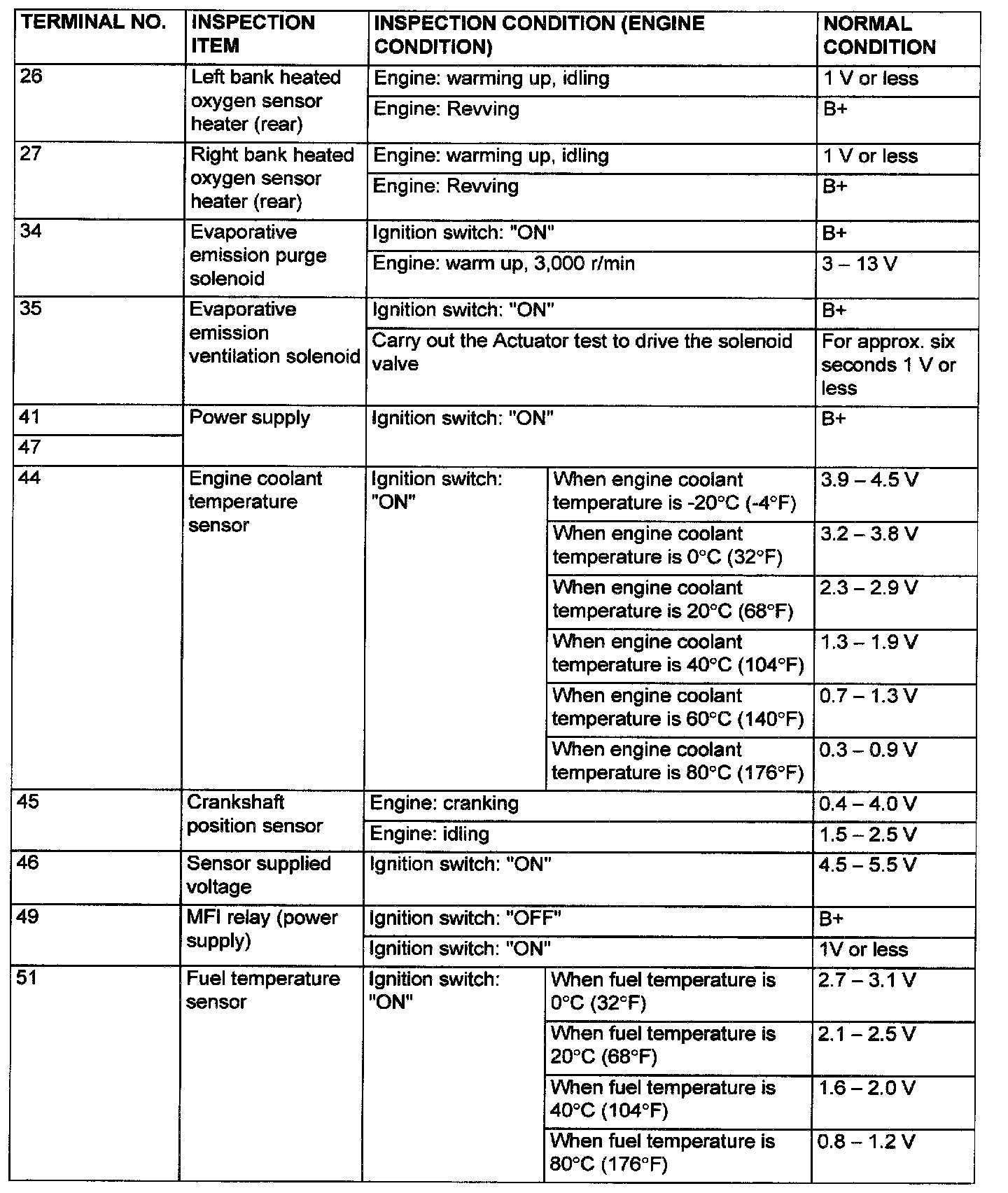

Terminals Part 2:

Terminals Part 3:

Terminals Part 4:

Terminals Part 5:

PCM Harness Side Connector Terminal Arrangement:

Terminals Part 1:

Terminals Part 2:
