Body - Sunroof Diagnostics Revision

No.: TSB-02-42A-012

DATE: August, 2002

MODEL:
2002 Galant

SUBJECT:
SUNROOF DIAGNOSIS - SERVICE MANUAL REVISION

PURPOSE

Diagnosis procedures for sunroof operation are missing in the affected service manual. This bulletin contains sunroof assembly diagnosis procedures for 2002 Galant.

Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.

AFFECTED VEHICLES
2002 Galant models equipped with factory-installed sunroof

AFFECTED SERVICE MANUAL
2002 Galant, Volume 3, page 42-51





2002 Galant, Volume 3, page 42-51

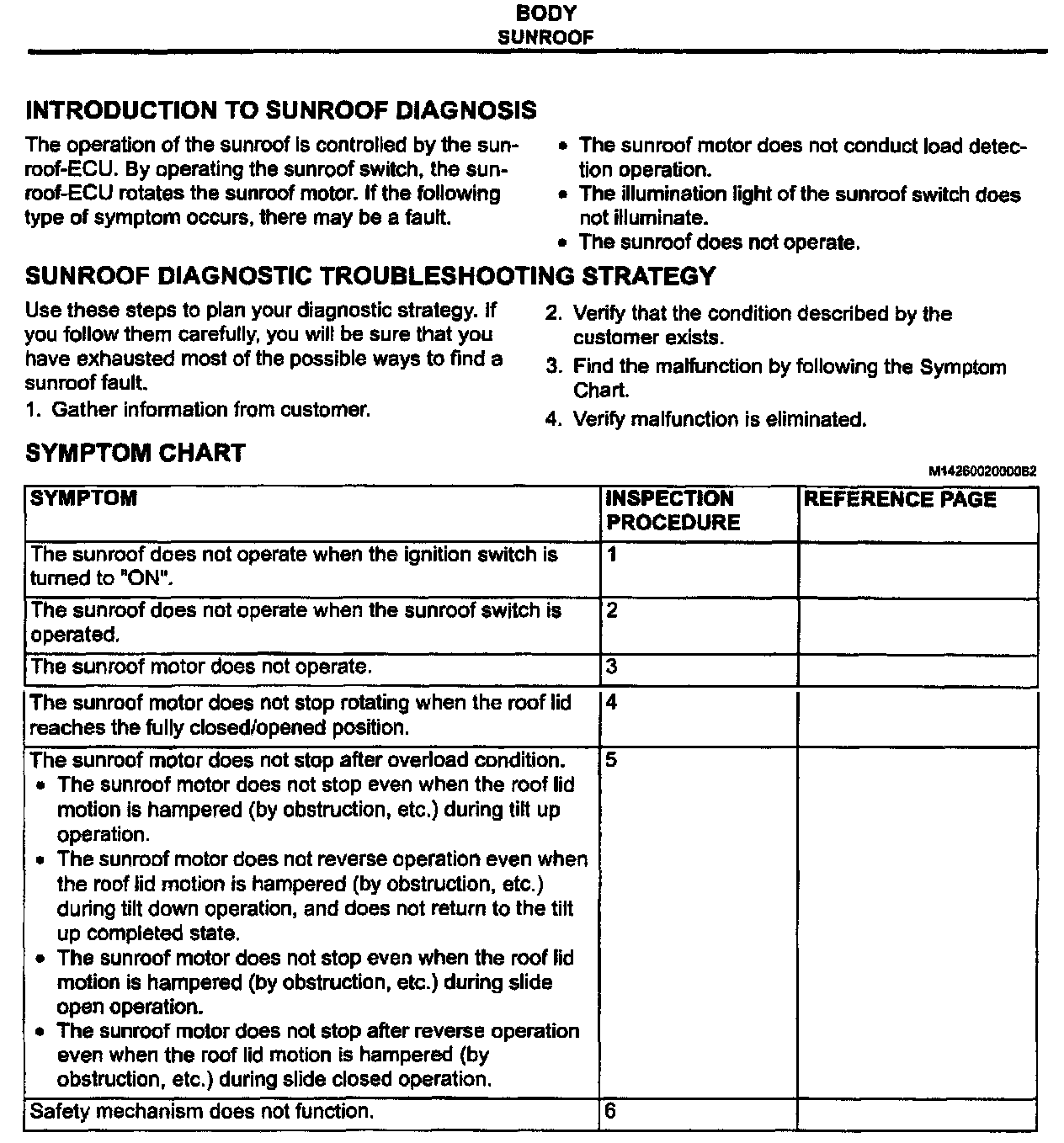

2002 Galant, Volume 3, page 42-51. Add the sunroof diagnosis procedures shown.

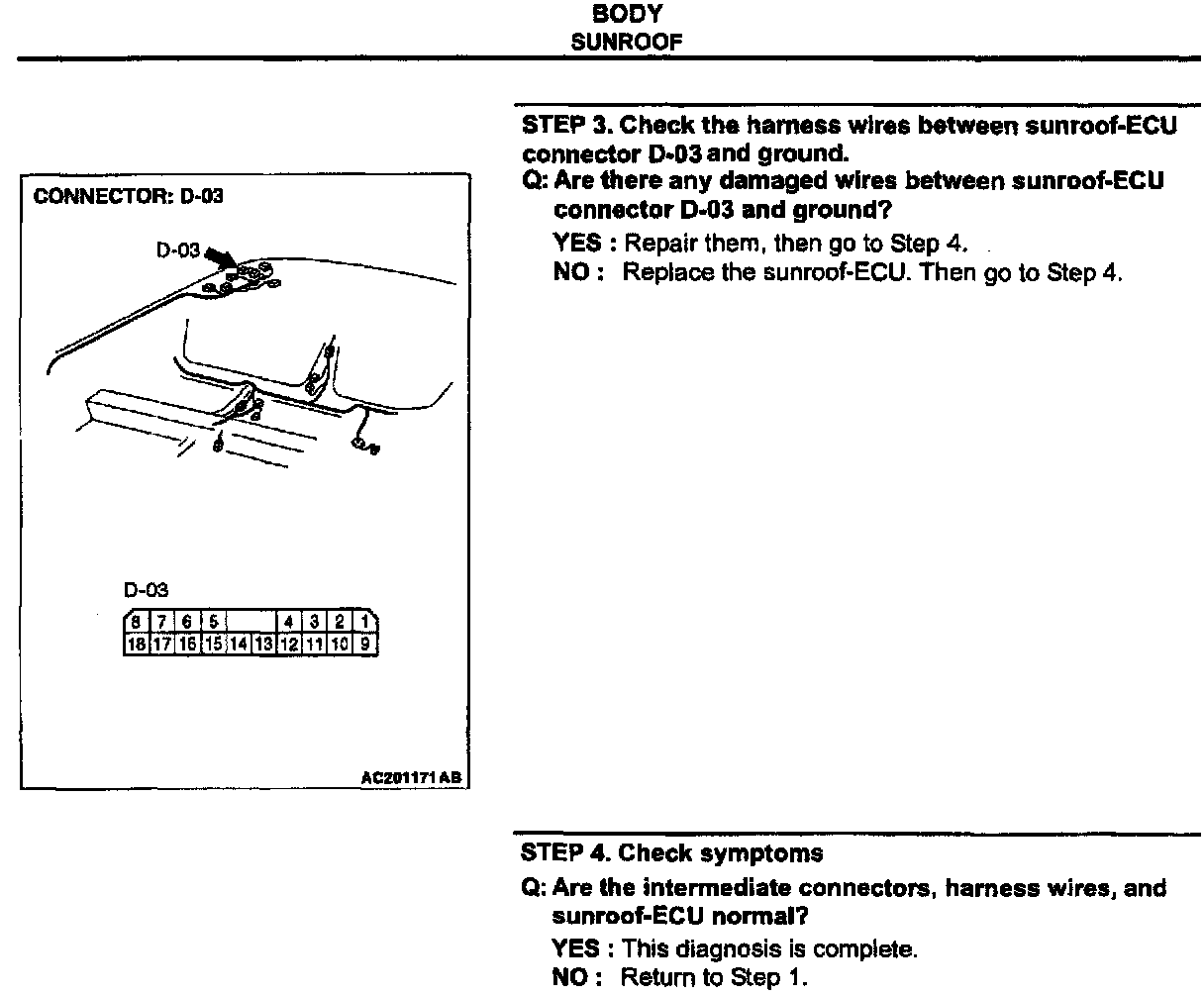

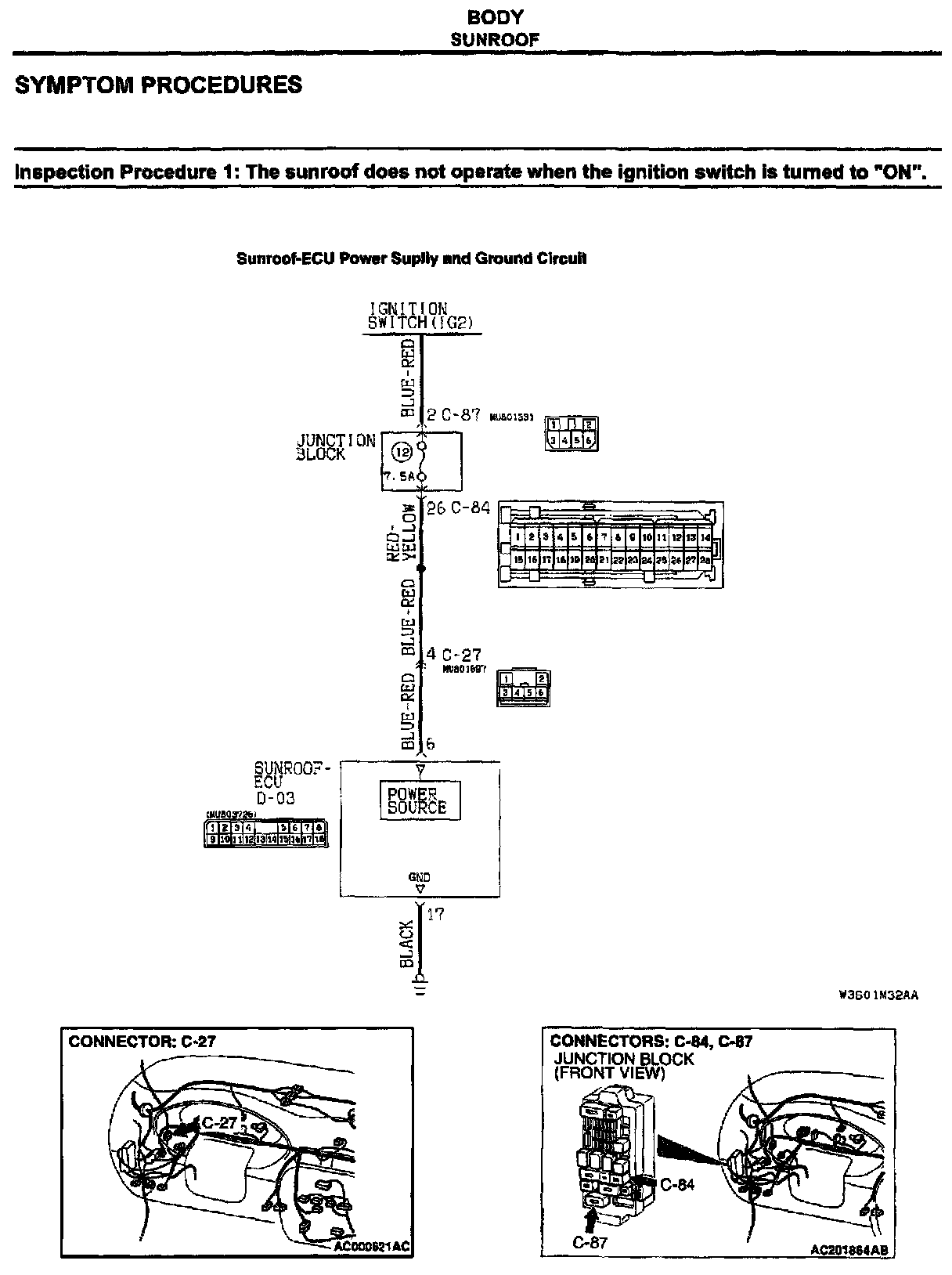

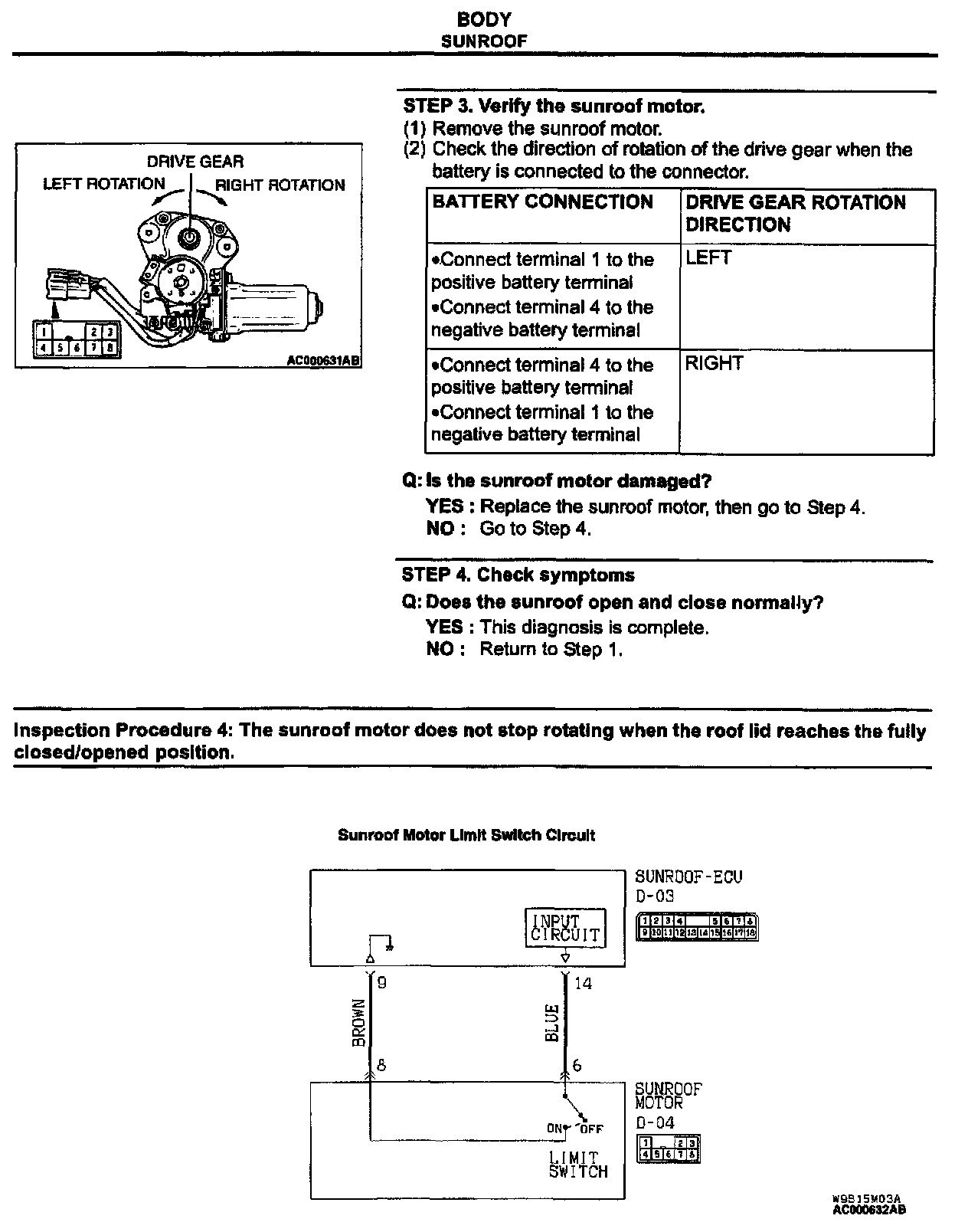

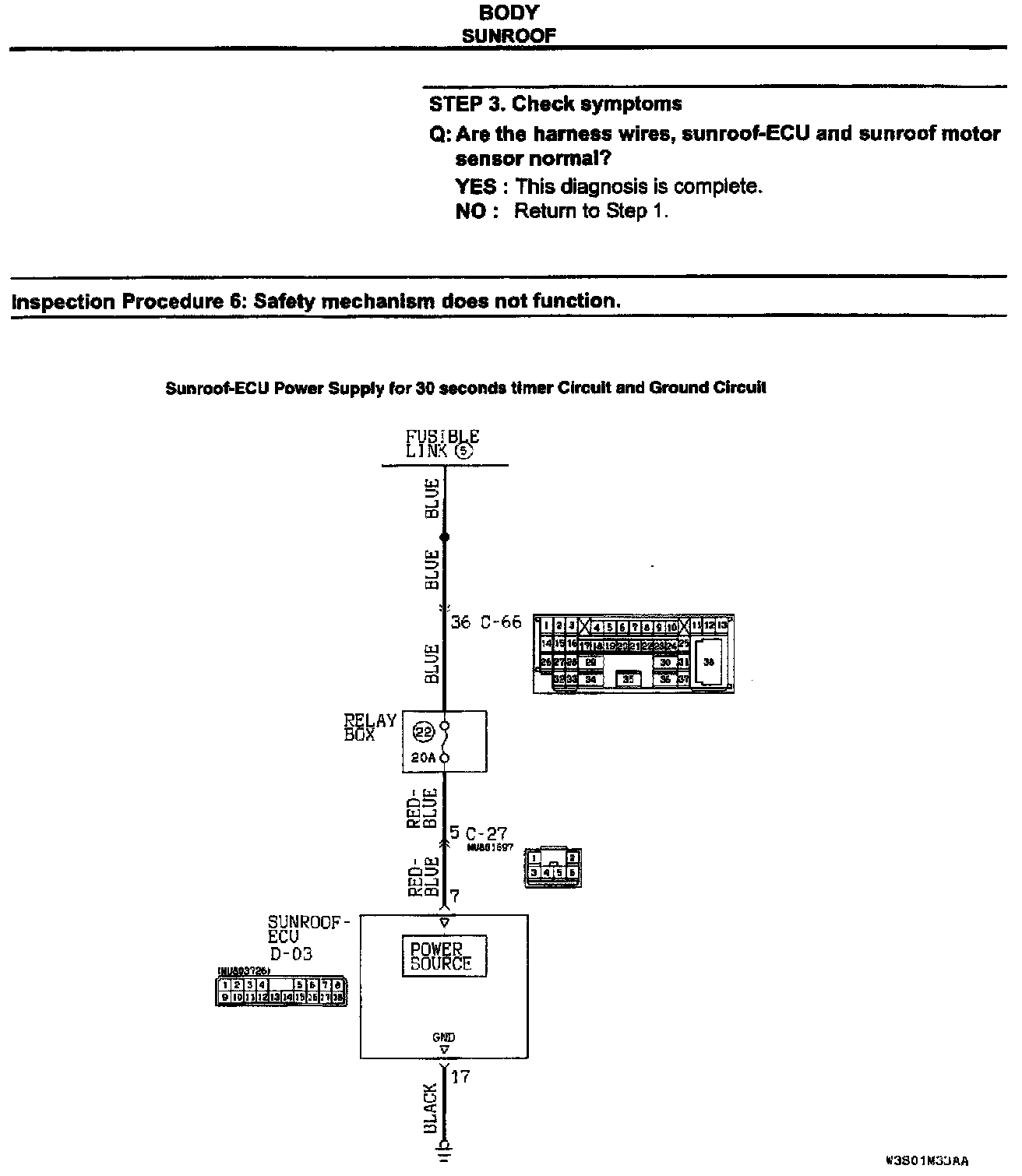

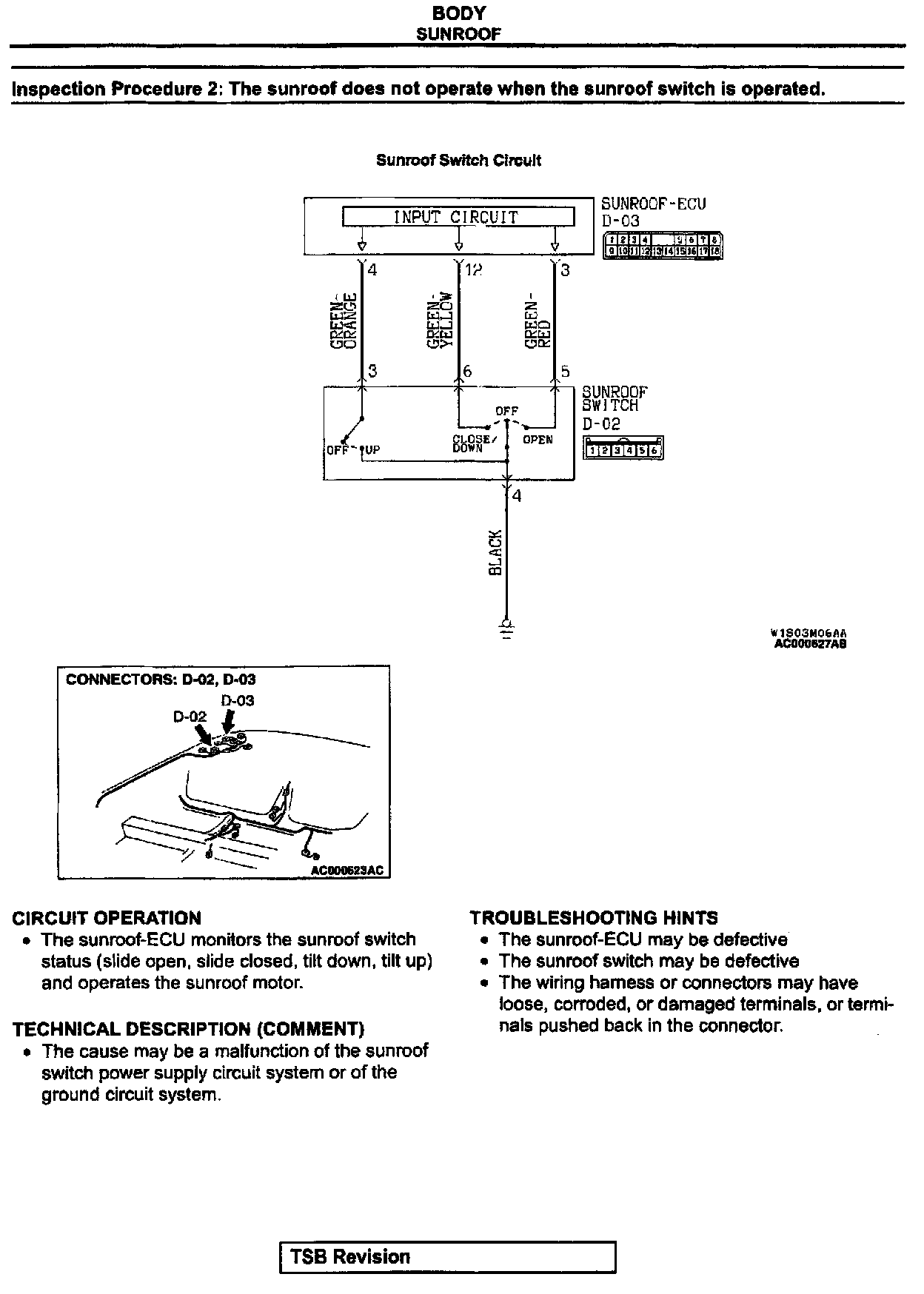

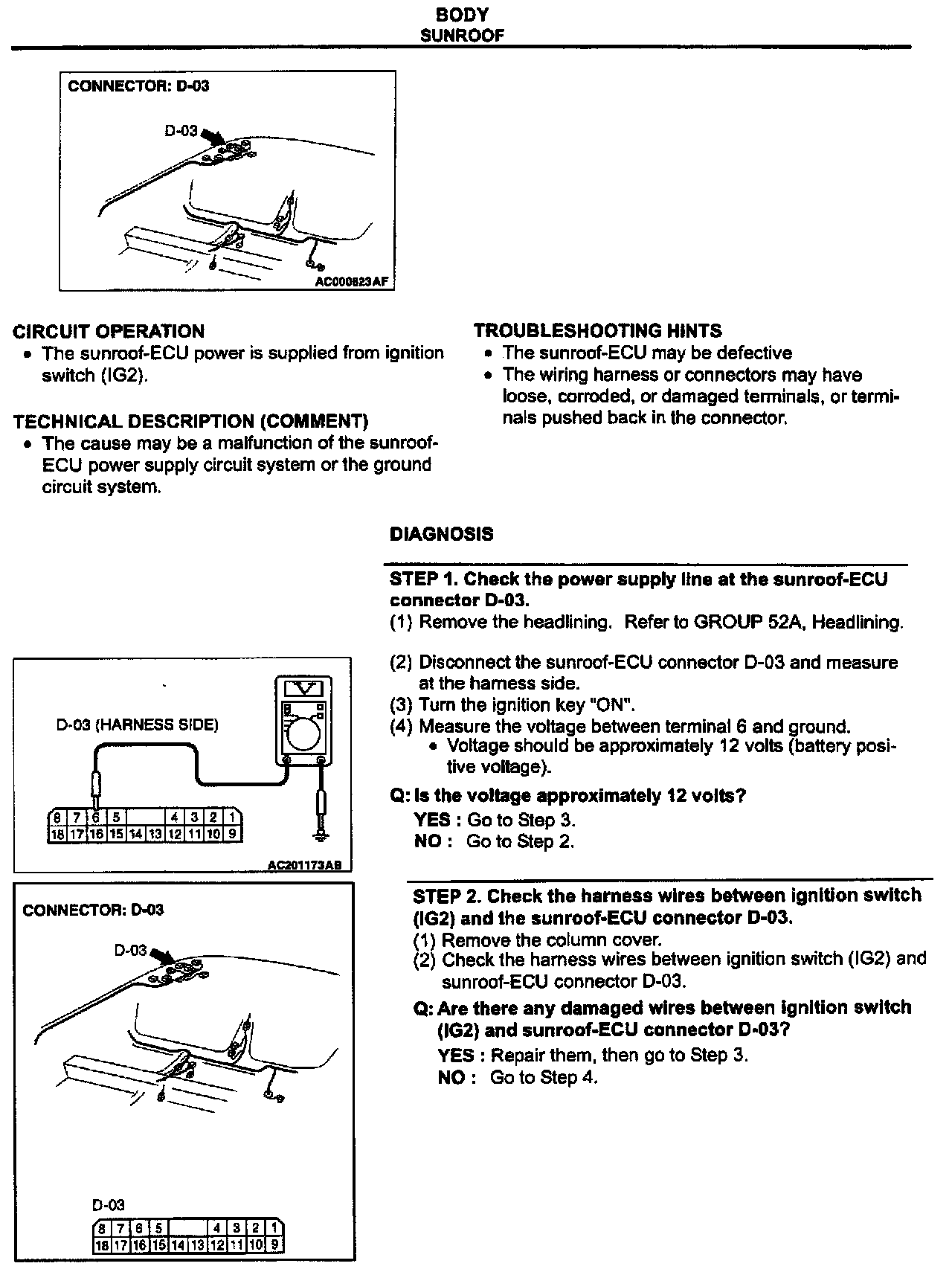

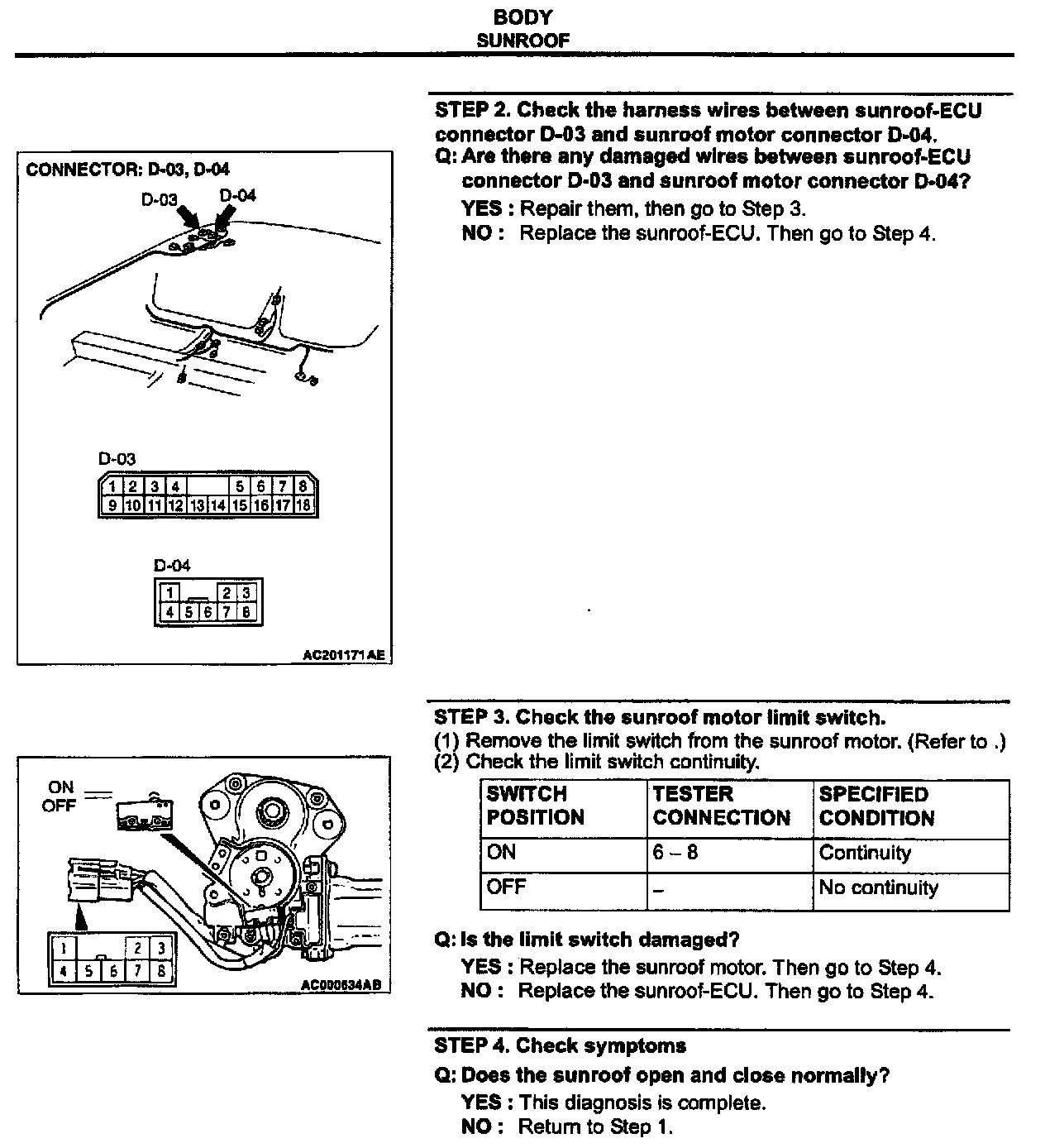

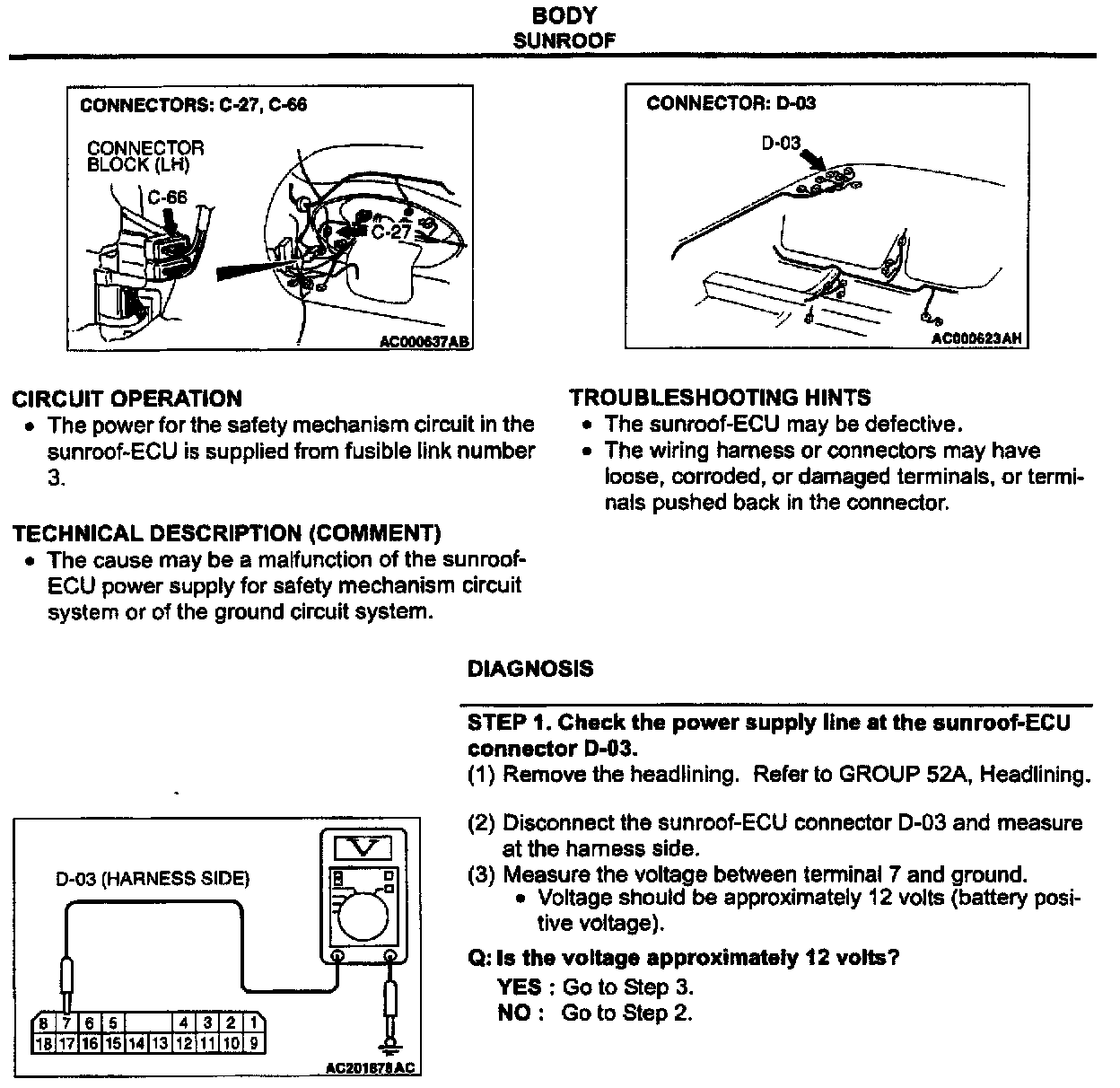

2002 Galant, Sunroof diagnosis procedures shown.

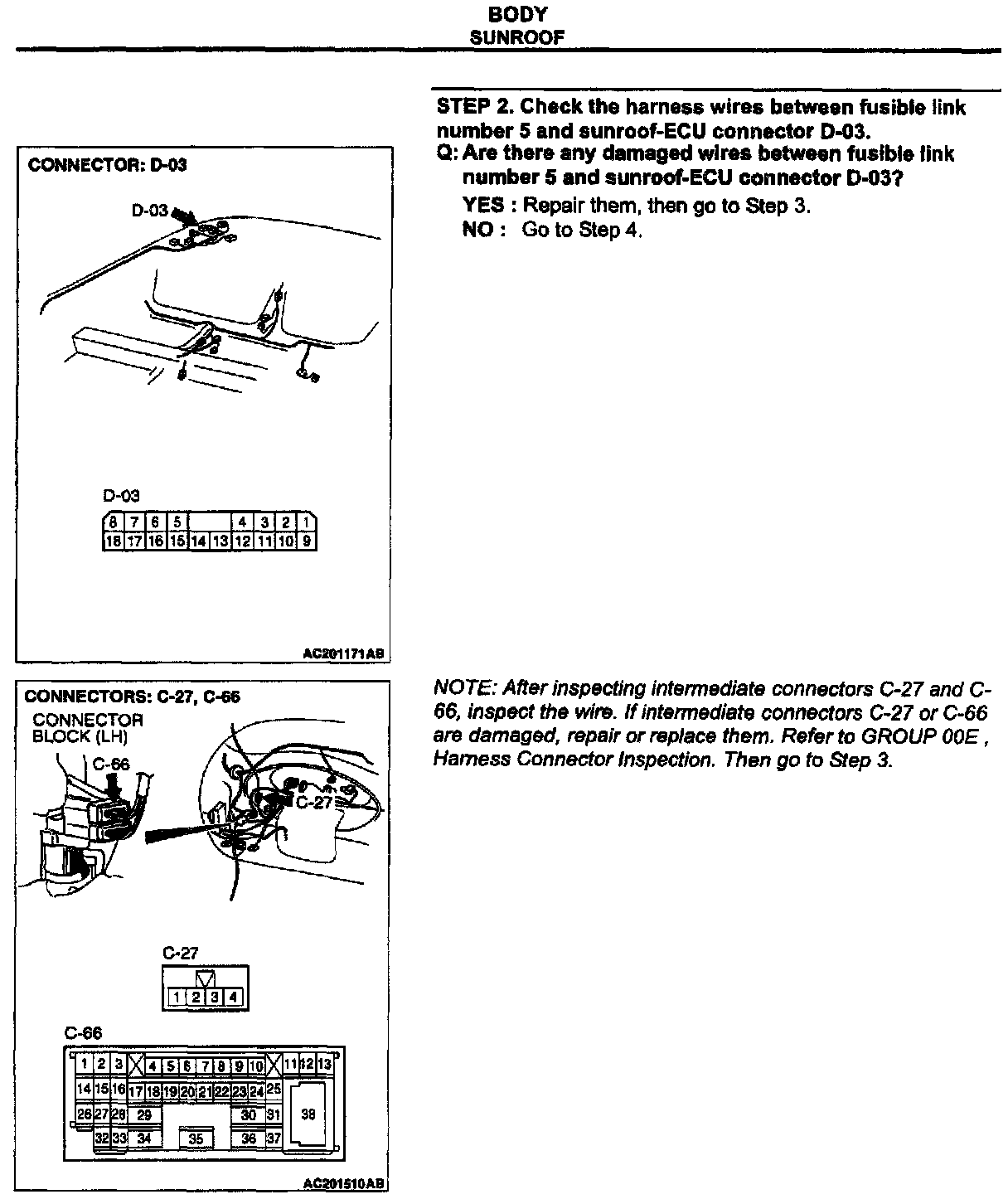

2002 Galant, Sunroof diagnosis procedures shown.

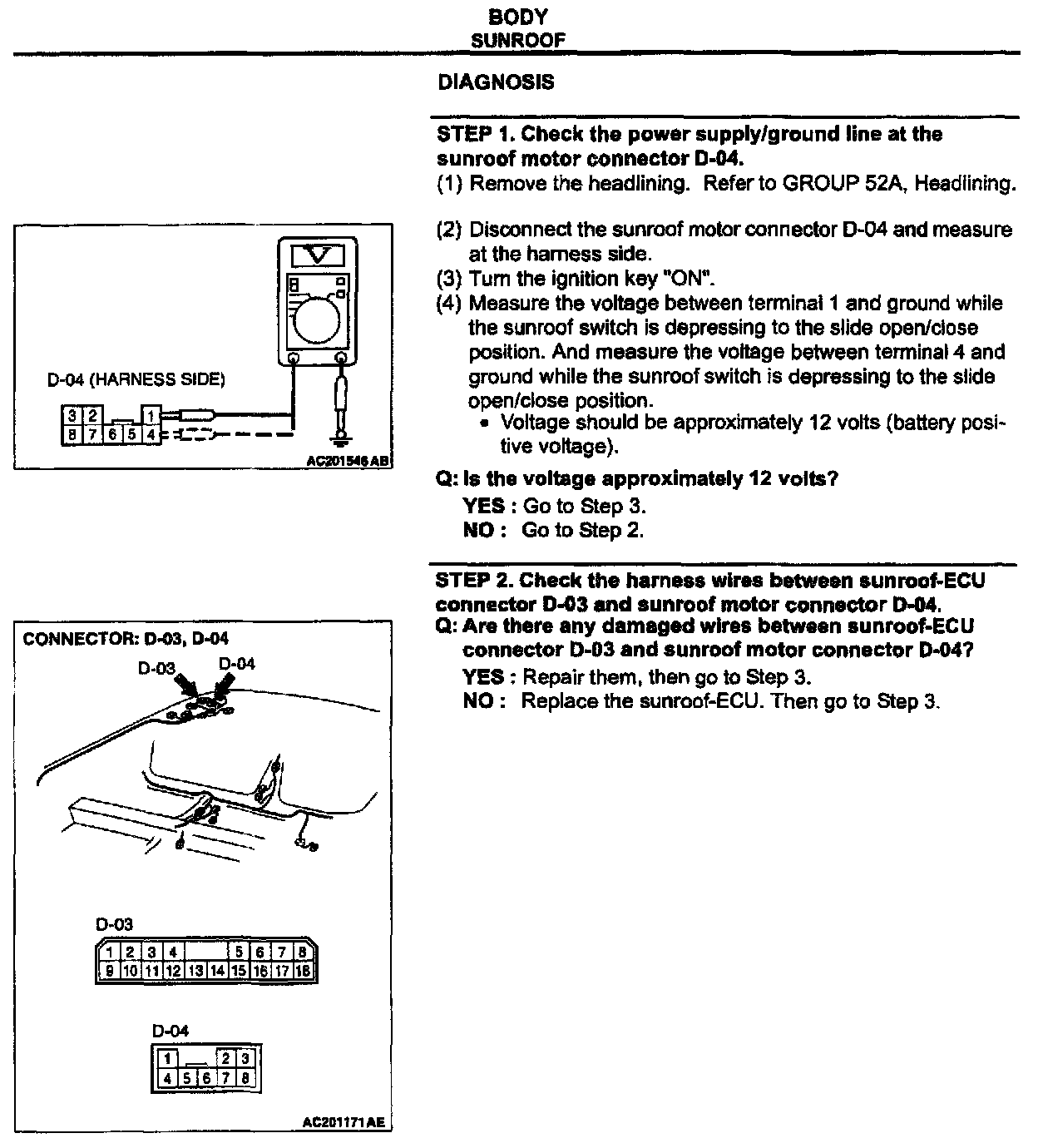

2002 Galant, Sunroof diagnosis procedures shown.

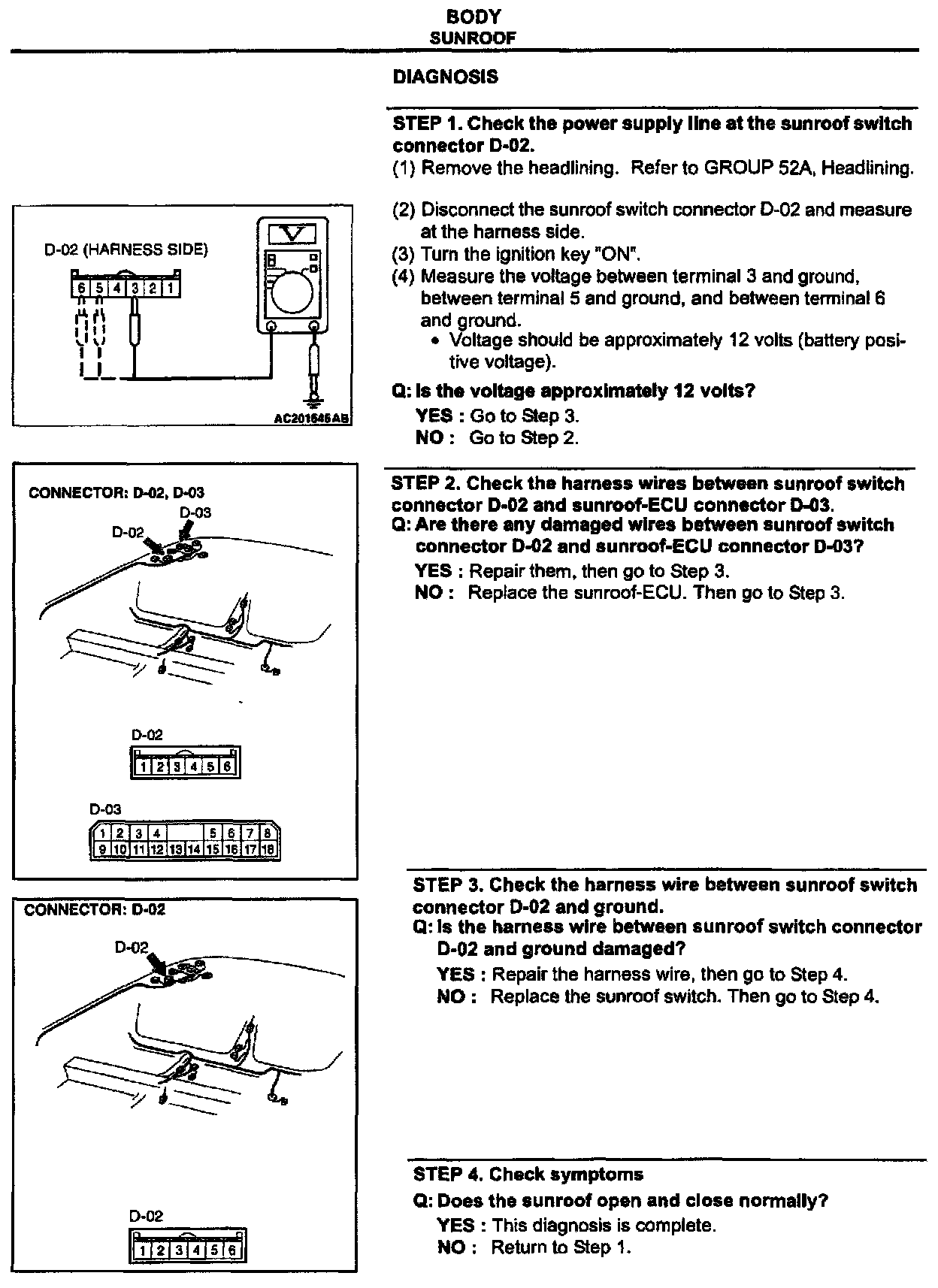

2002 Galant, Sunroof diagnosis procedures shown.

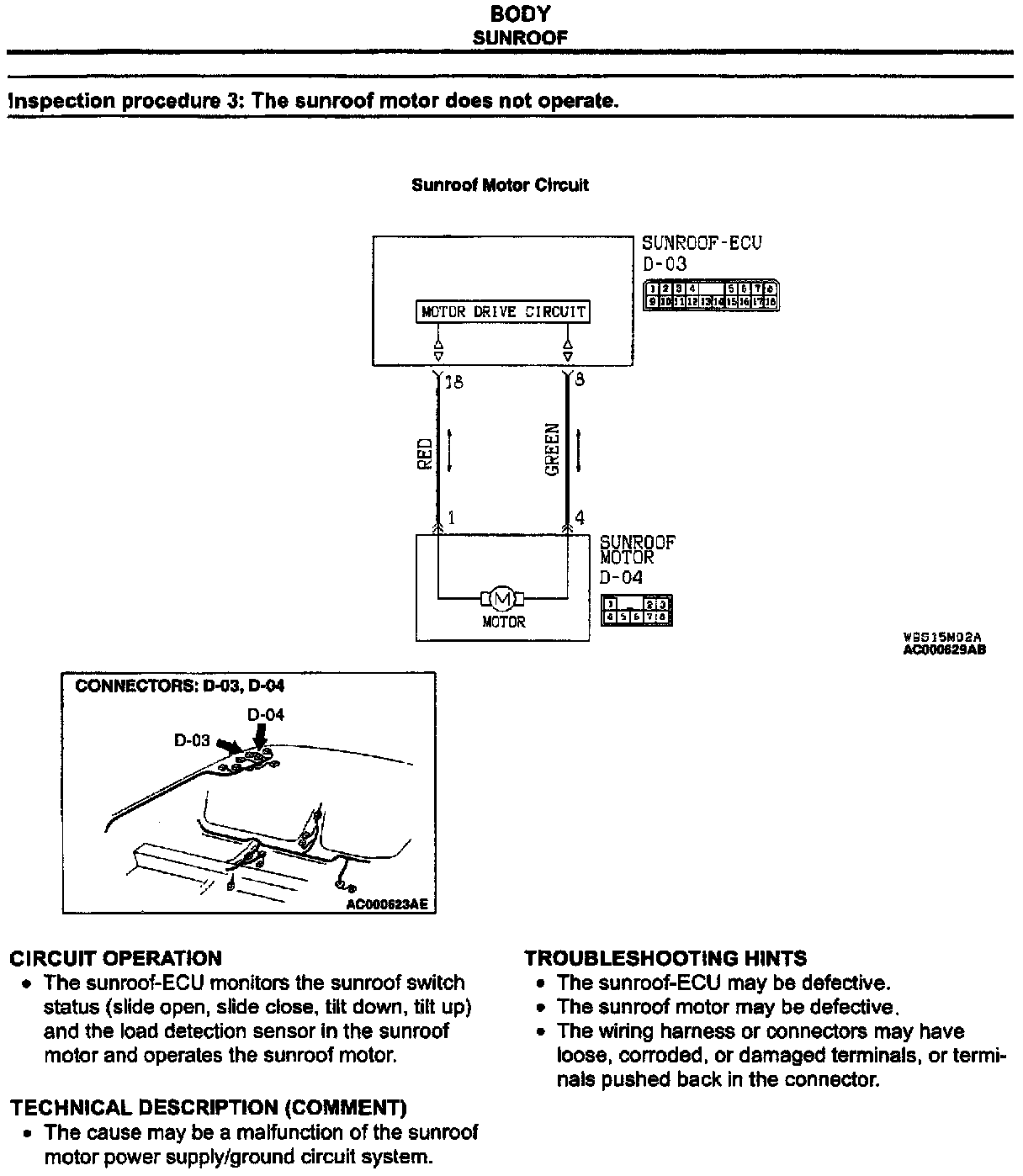

2002 Galant, Sunroof diagnosis procedures shown

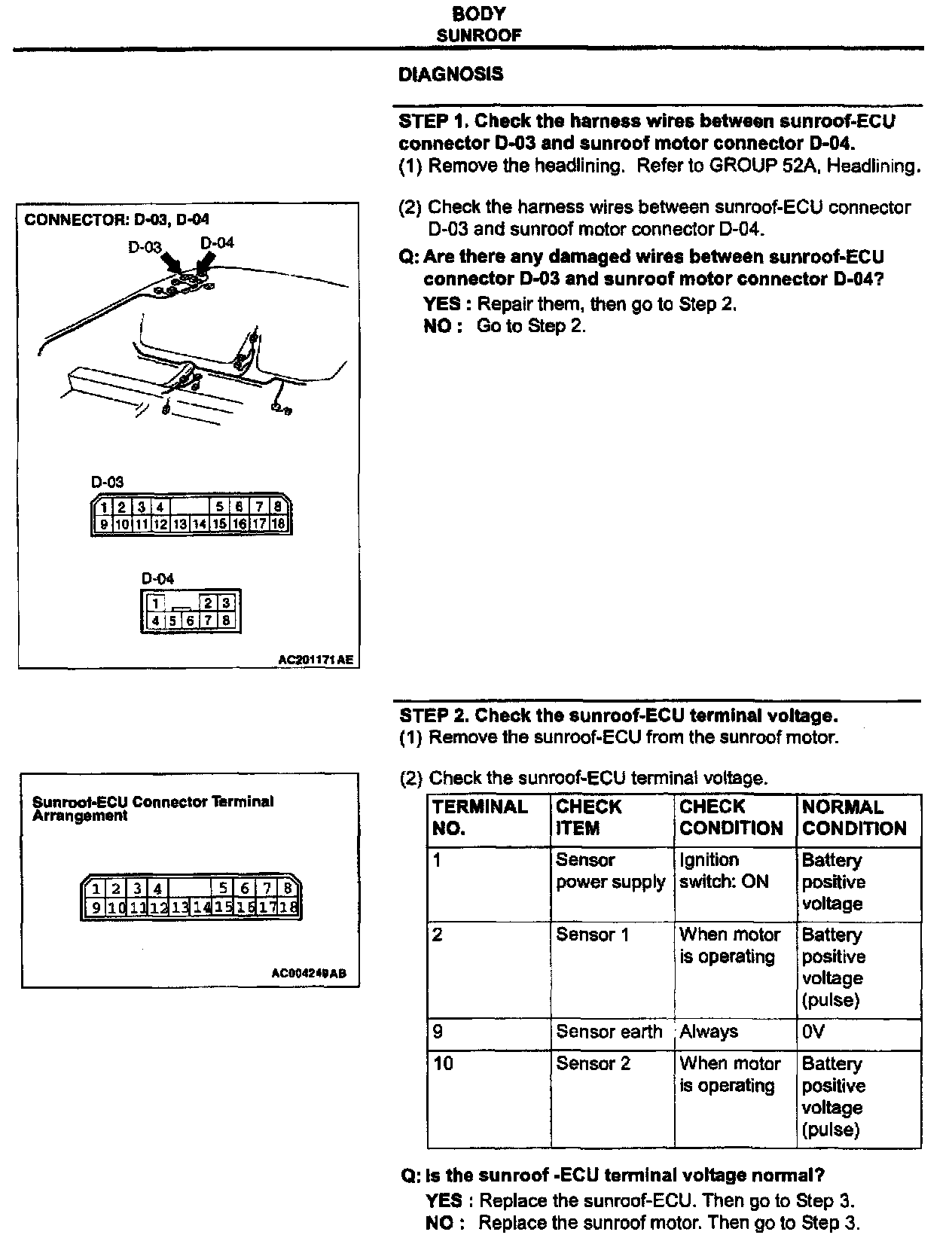

2002 Galant, Sunroof diagnosis procedures shown

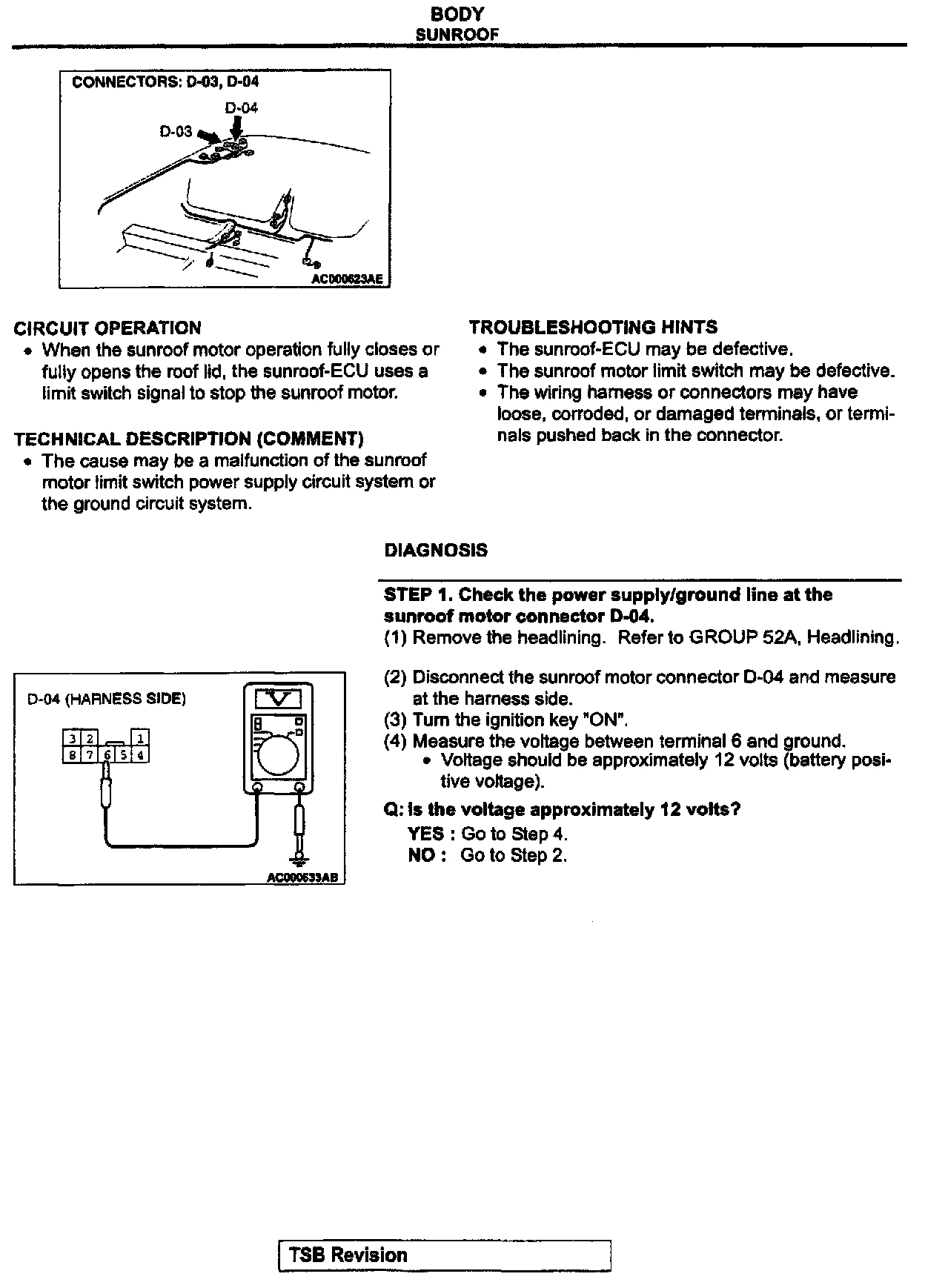

2002 Galant, Sunroof diagnosis procedures shown.





2002 Galant, Sunroof diagnosis procedures shown.





2002 Galant, Sunroof diagnosis procedures shown.





2002 Galant, Sunroof diagnosis procedures shown.





2002 Galant, Sunroof diagnosis procedures shown.





2002 Galant, Sunroof diagnosis procedures shown.





2002 Galant, Sunroof diagnosis procedures shown.





2002 Galant, Sunroof diagnosis procedures shown.





2002 Galant, Sunroof diagnosis procedures shown.





2002 Galant, Sunroof diagnosis procedures shown.
