PCM - Power Circuit Manual Revision

No.: TSB-02-13-009

Date: May, 2002

MODEL: 2002 Galant

SUBJECT:
CORRECTED PCM BACKUP POWER SUPPLY CIRCUITS (GALANT)
- SERVICE MANUAL REVISION

PURPOSE

This bulletin contains corrections to the backup power supply circuit for the powertrain control module (PCM). These corrections affect both 2.4L, I4 and 3.0L, V6 equipped vehicles.

Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.

AFFECTED VEHICLES

2002 Galant

AFFECTED SERVICE MANUALS

2002 Galant Service Manual, Volume 1, Pages 13A-410 through 413, 485, 486, 490

2002 Galant Service Manual, Volume 2, Pages 13B-483 through 486, 564, 565, 568

2002 Galant Service Manual, Volume 3, Pages 23A-240 through 243

2002 Galant Service Manual, Volume 4, Pages 90-30, 40, 52

SERVICE MANUAL REVISIONS

2002 Galant, Volume 1, Page 13A-410





Delete the original page 13A-410 and replace it with the new page shown.

2002 Galant, Volume 1, Page 13A-411

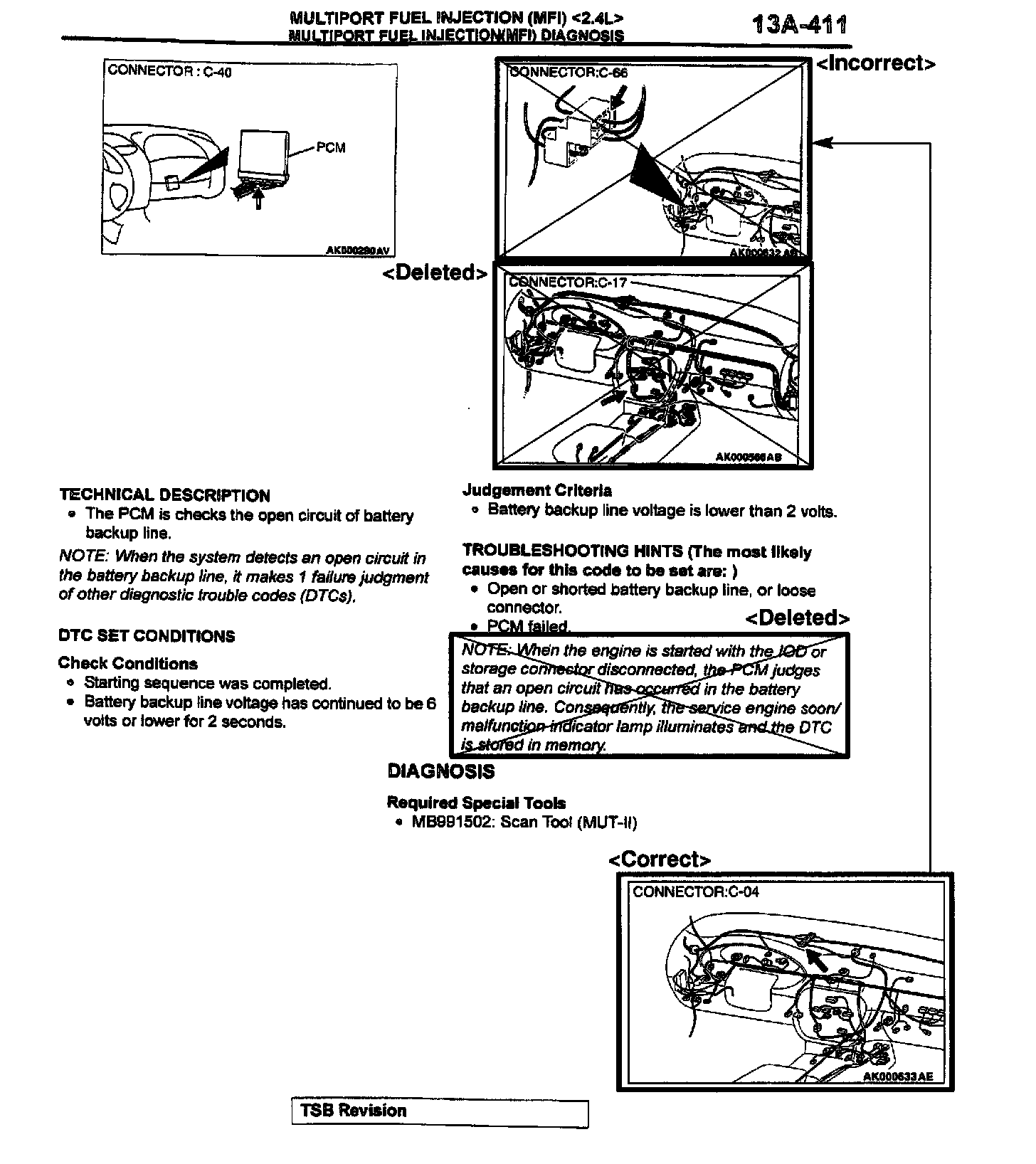

Delete the indicated note and revise the illustrations as shown.

2002 Galant, Volume 1, Page 13A-412





Change the connector numbers as shown.

2002 Galant, Volume 1, Page 13A-41 2





Change the connector numbers as shown.

2002 Galant Volume 1, Page 13A-485





Delete the original page 13A-485 and replace it with the new page shown.

2002 Galant, Volume 1, Page 13A-486





Delete the indicated illustration as shown.

2002 Galant, Volume 1, Page 13A-490

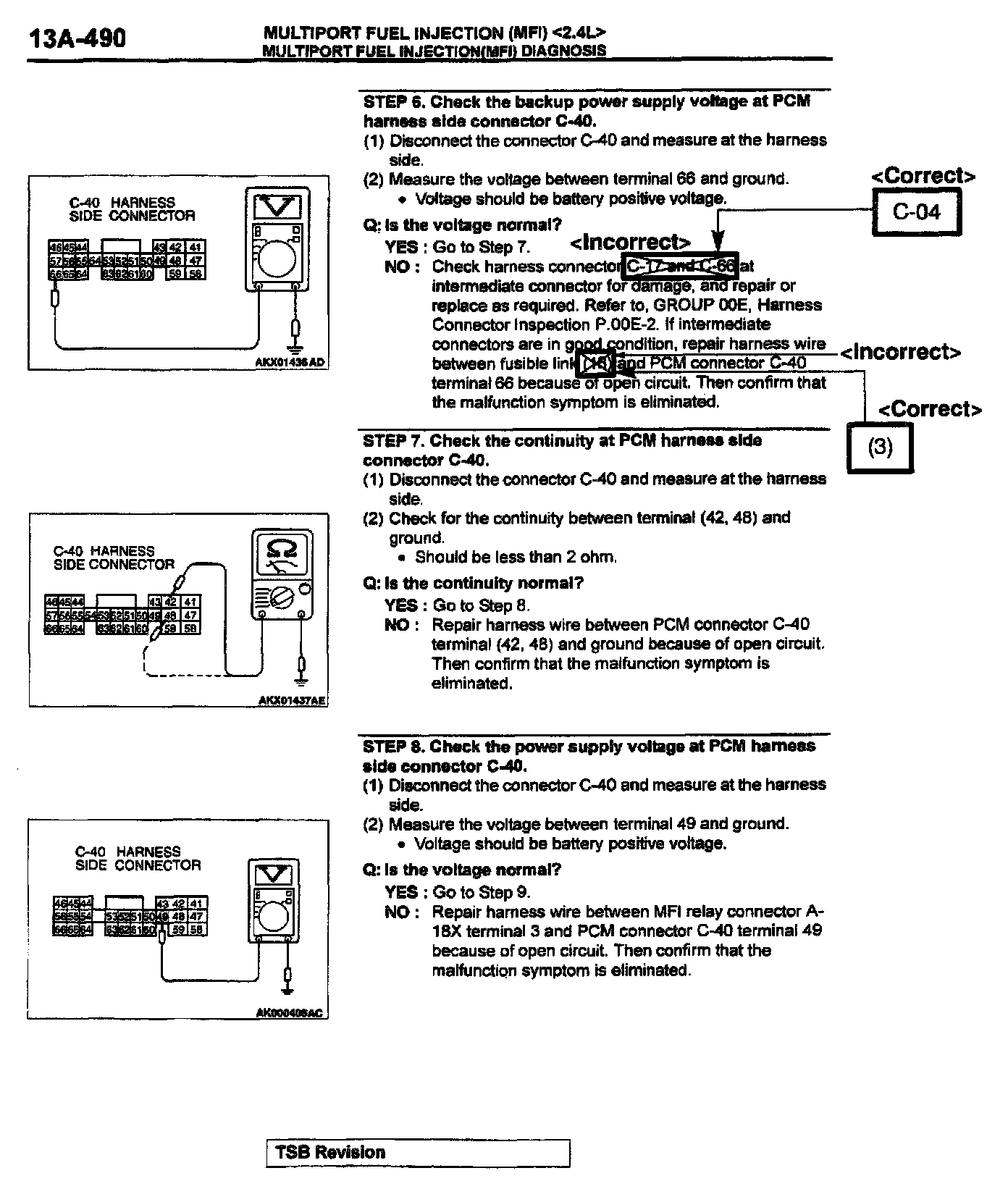

Correct the fusible link and connector reference numbers as shown.

2002 Galant, Volume 2, Page 13B-483





Delete the original page 13B-483 and replace it with the new page shown.

2002 Galant, Volume 2, Page 13B-484





Delete the indicated note and revise the illustrations as shown.

2002 Galant Volume 2, Page 13B-485





Change the connector numbers as shown.

2002 Galant, Volume 2, Page 13B-486





Change the connector numbers as shown.

2002 Galant, Volume 2, Page 13B-564





Delete the original page 13B-564 and replace it with the new page shown.

2002 Galant, Volume 2, Page 13B-565





Delete the indicated illustration as shown.

2002 Galant, Volume 2, Page 13B-568





Correct the fusible link and connector reference numbers as shown.

2002 Galant, Volume 3, Page 23A-240





Delete the indicated illustrations and replace them with the new illustration in this bulletin.

2002 Galant, Volume 3, Page 23A-240





Replace the illustrations deleted with the new illustrations.

2002 Galant, Volume 3, Page 23A-241





Delete the indicated illustration as shown.

2002 Galant, Volume 3, Page 23A-242





Revise step 3 as shown.

2002 Galant, Volume 3, Page 23A-243

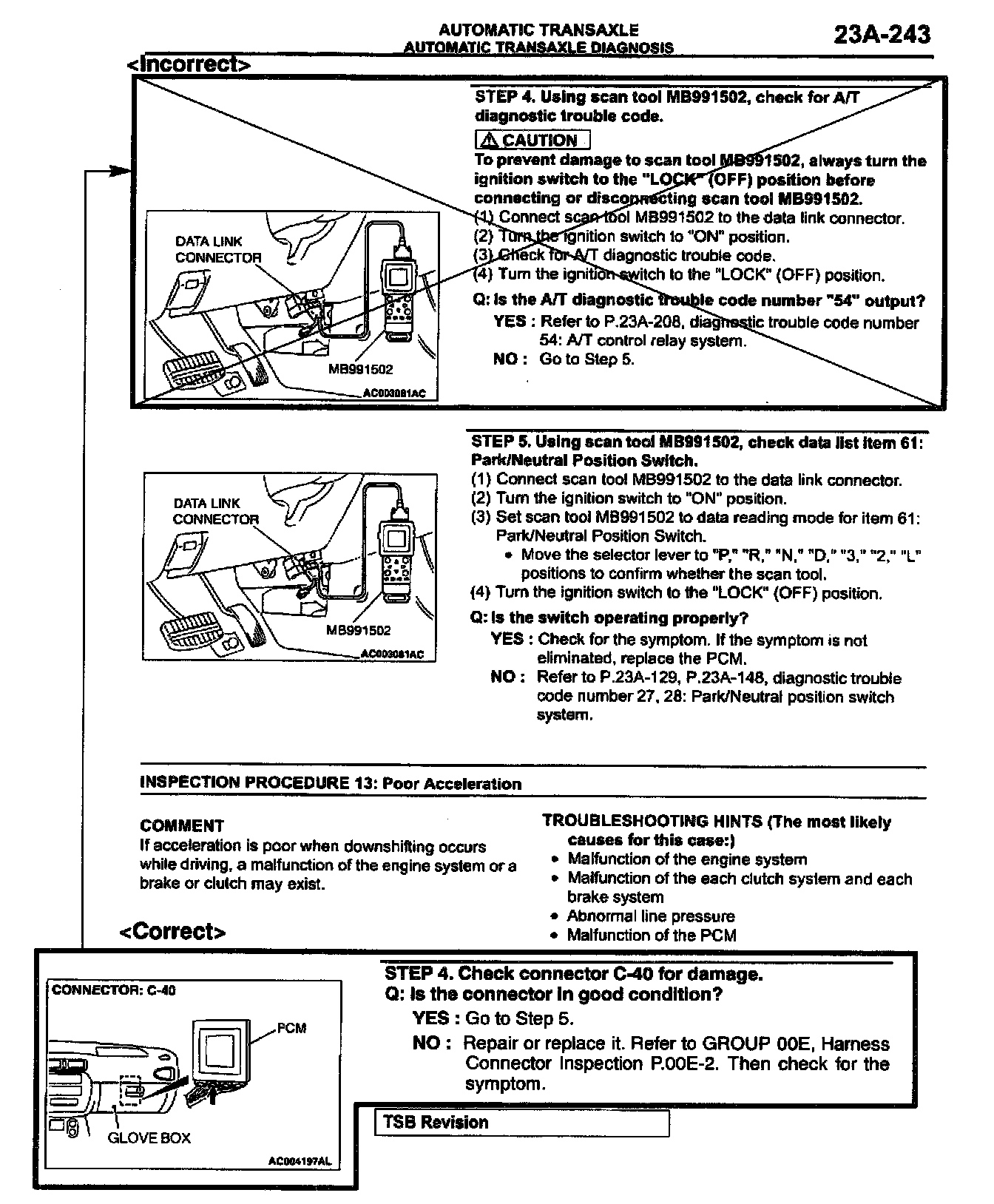

Revise step 4 as shown.

2002 Galant, Volume 4, Page 90-30





Correct the circuit diagram as shown.

2002 Galant, Volume 4, Page 90-40





Correct the circuit diagram as shown.

2002 Galant, Volume 4, Page 90-52





Correct the circuit diagram as shown.
