Electrical Diagrams

Auto-Cruise Control System <M/T> Part 1:

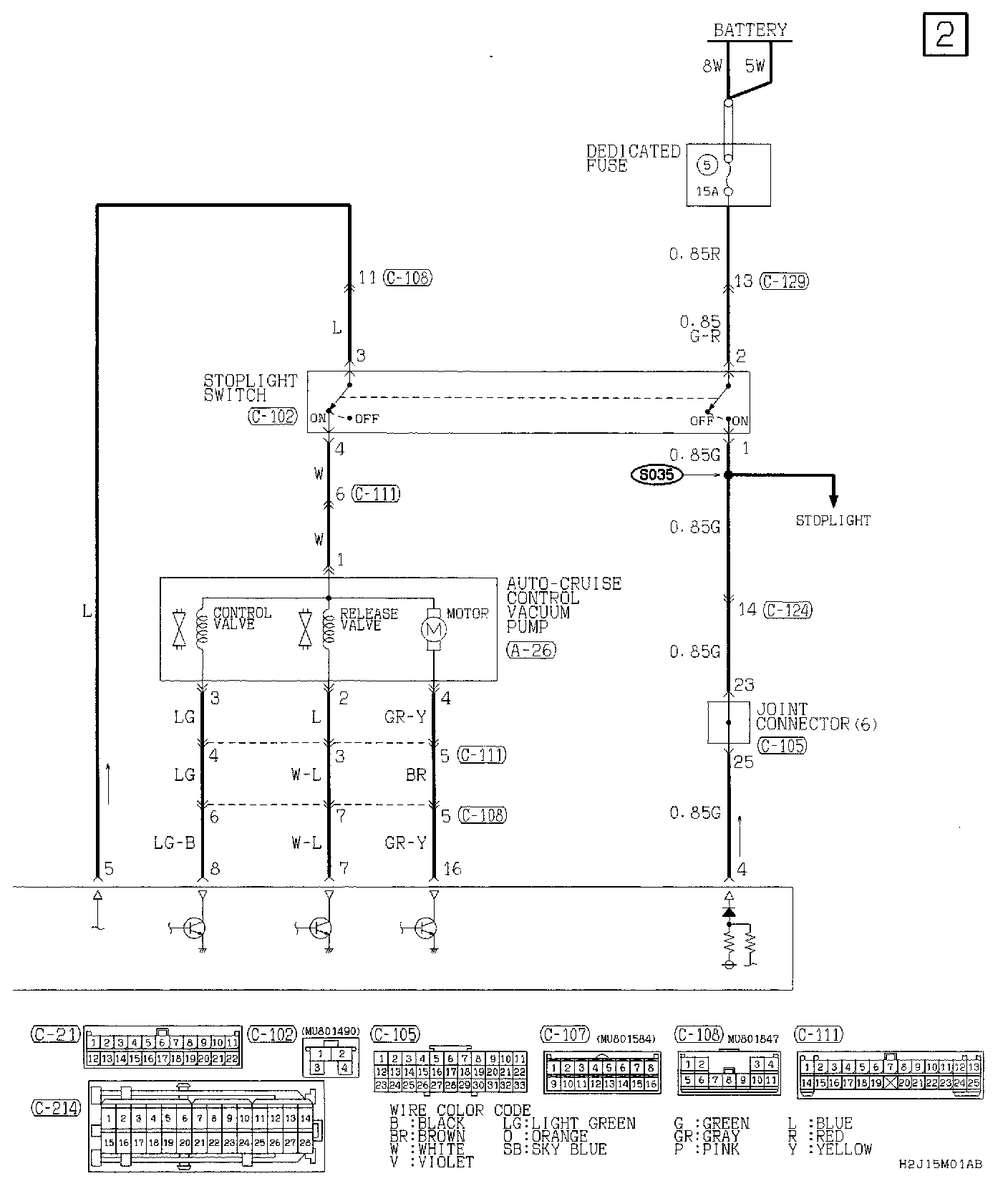

Part 2:

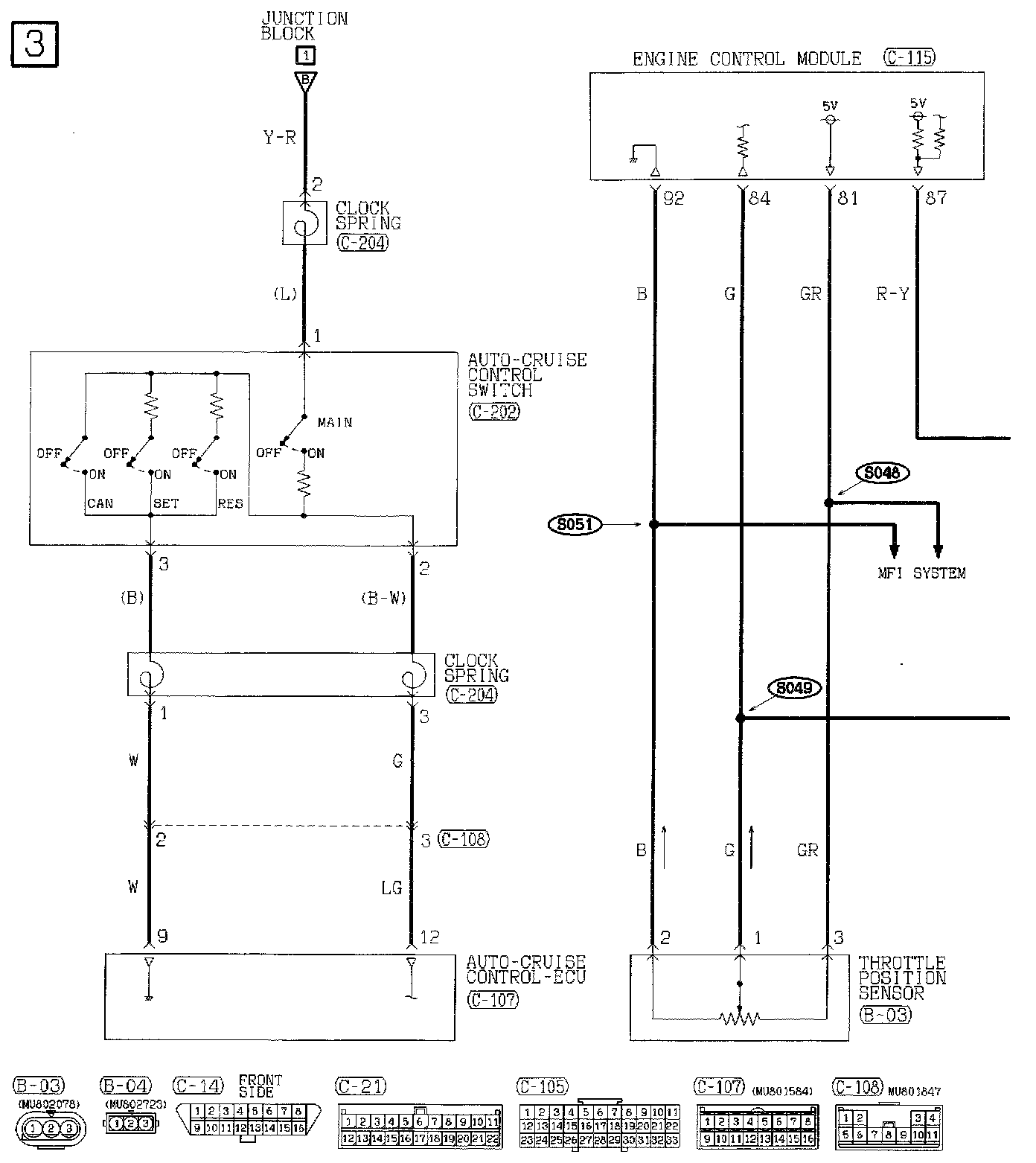

Part 3:

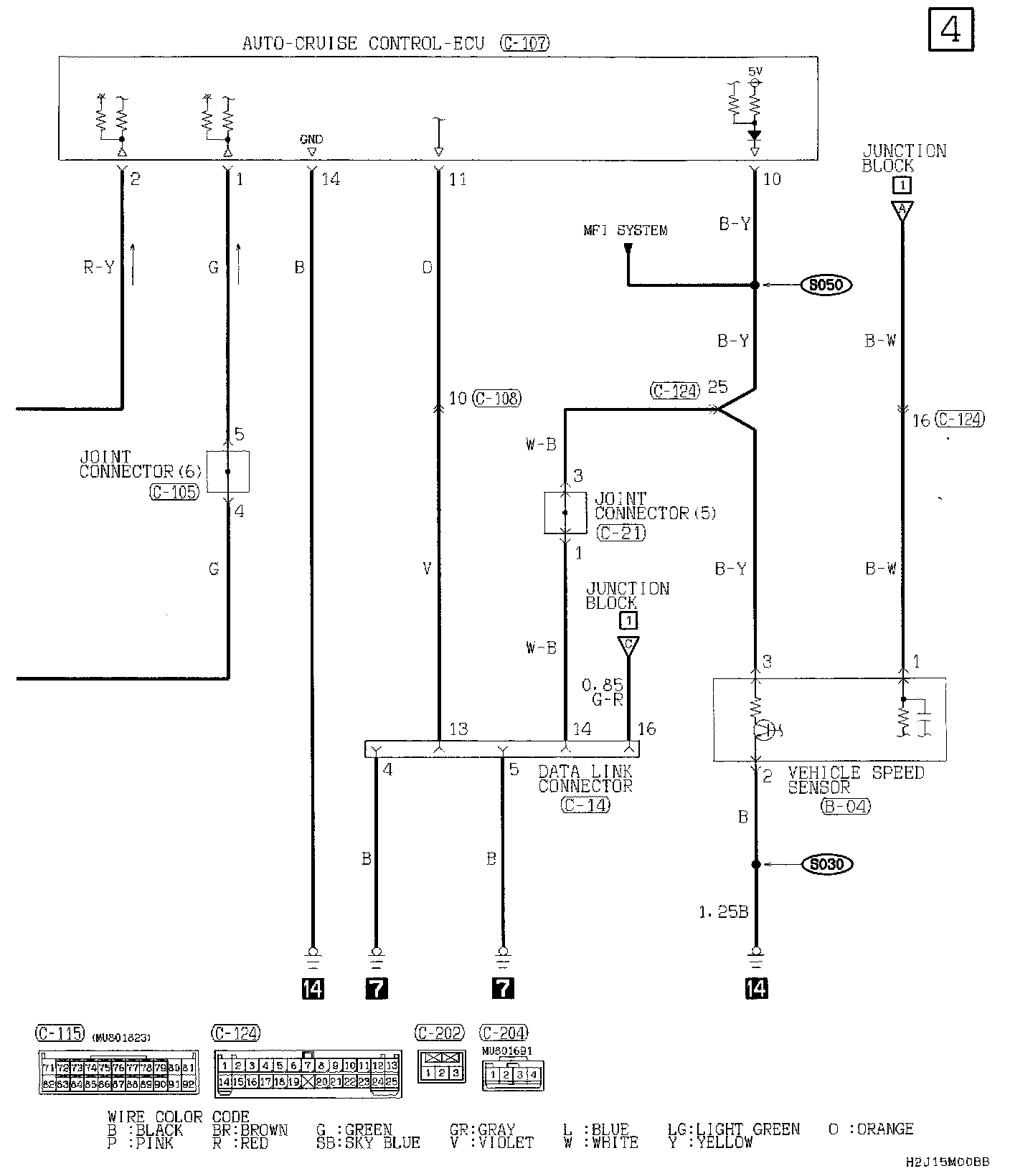

Part 4:



Auto-Cruise Control System <A/T> Part 1:



Part 2:



Part 3:



Part 4:
