F Connectors - Luggage Compartment Harness
F Connectors - Luggage Compartment Harness

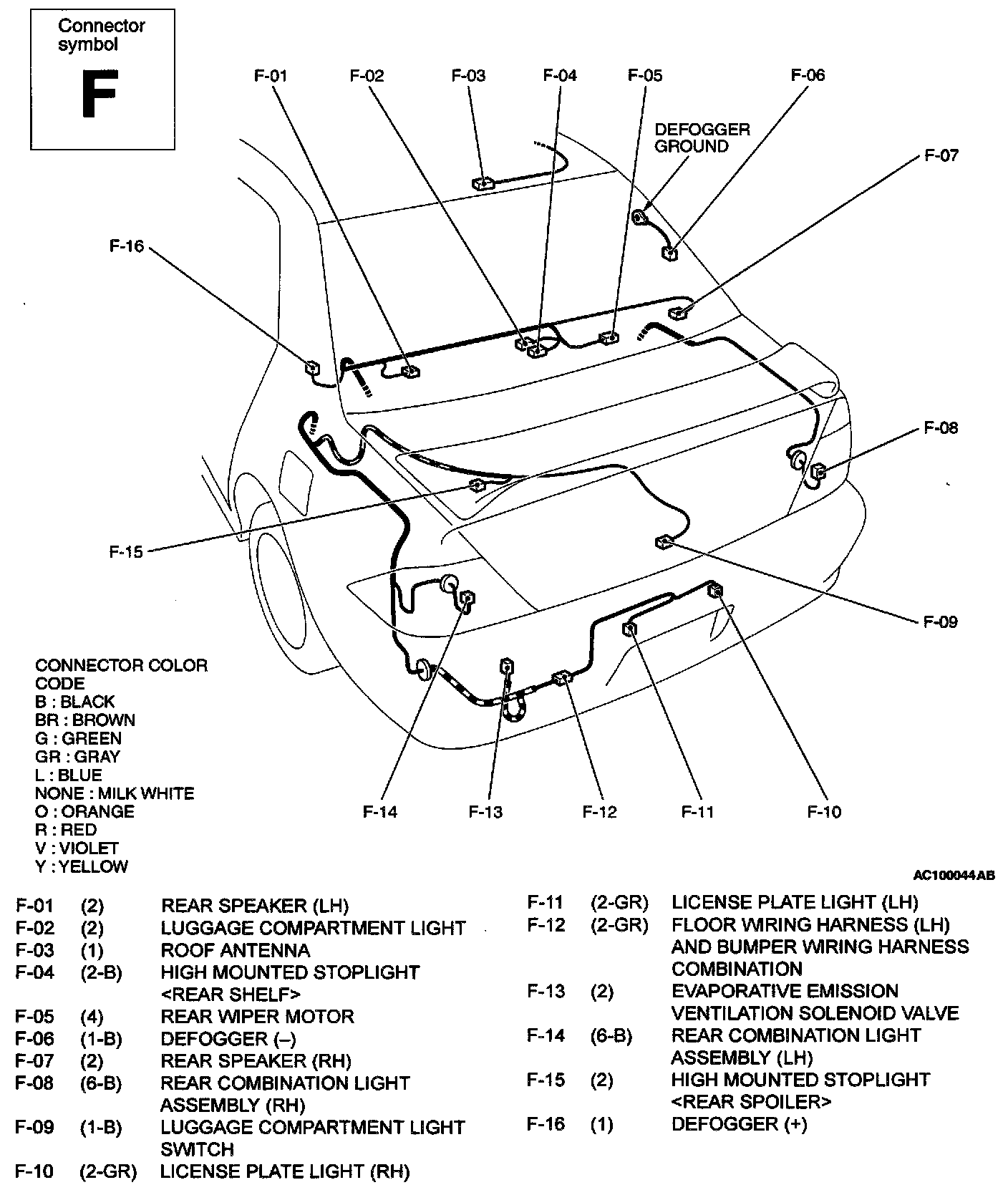

Luggage Compartment - F Connector [01 (2) Thru 16 (1)]:
