Wiper and Washer Systems

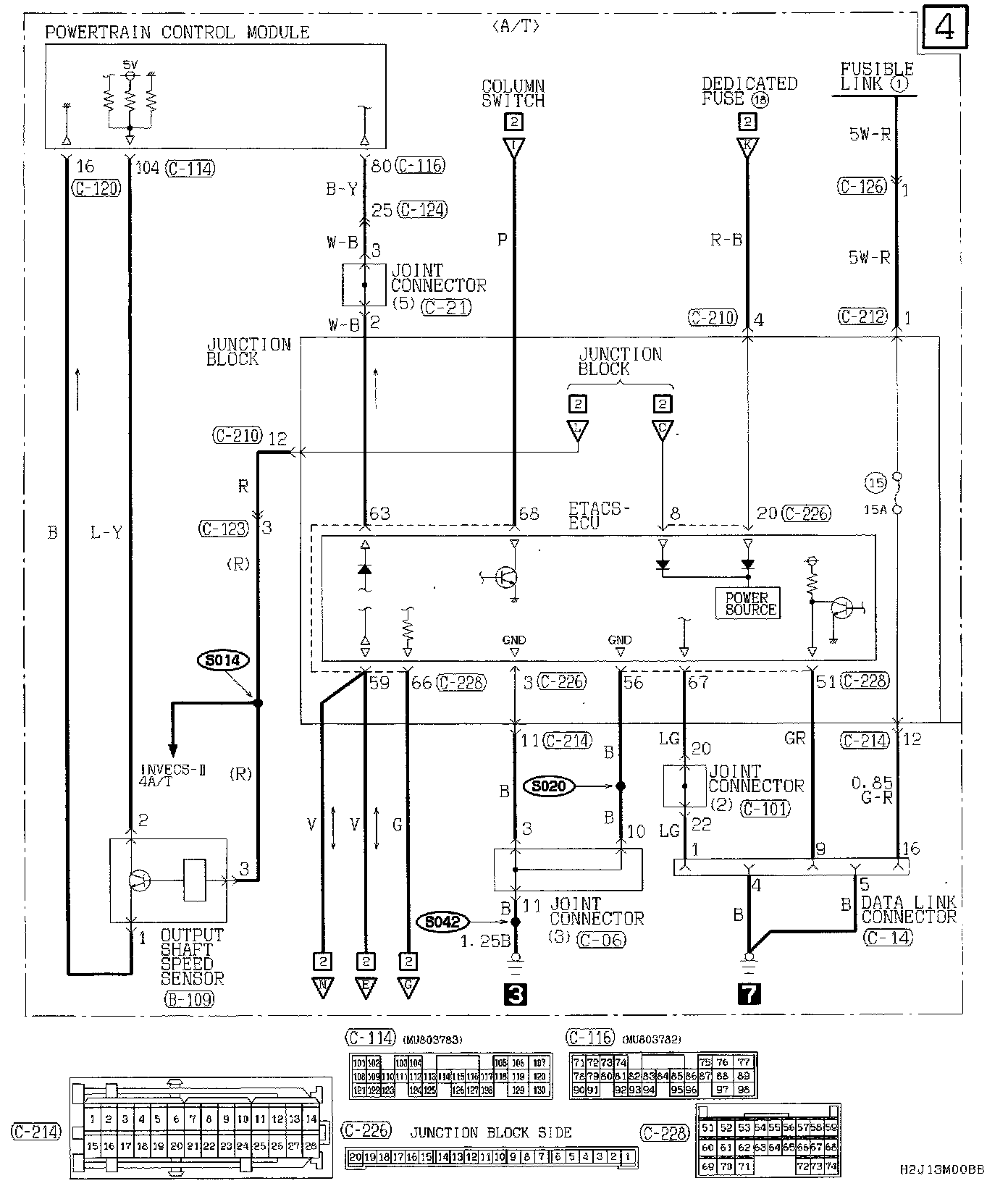

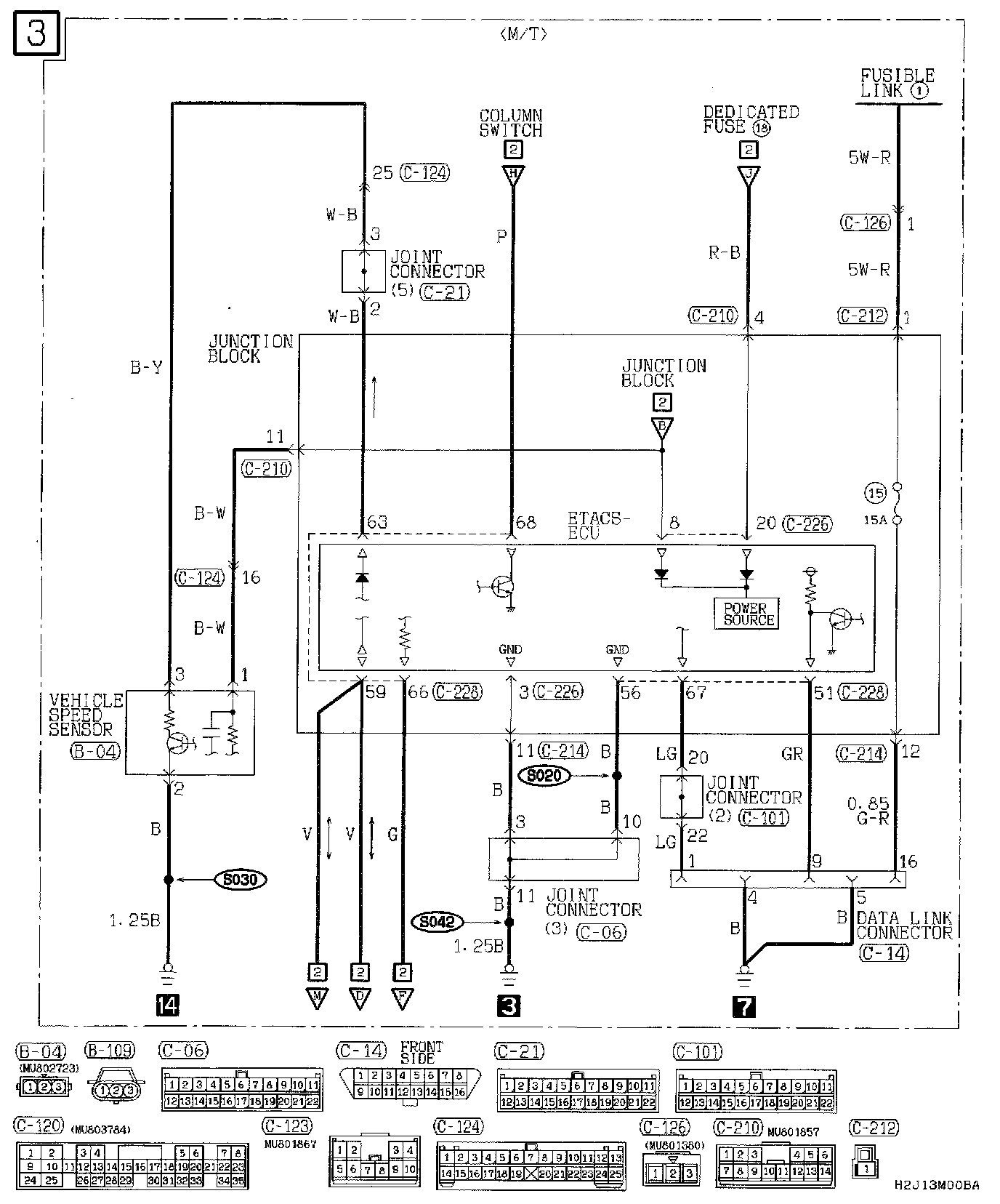

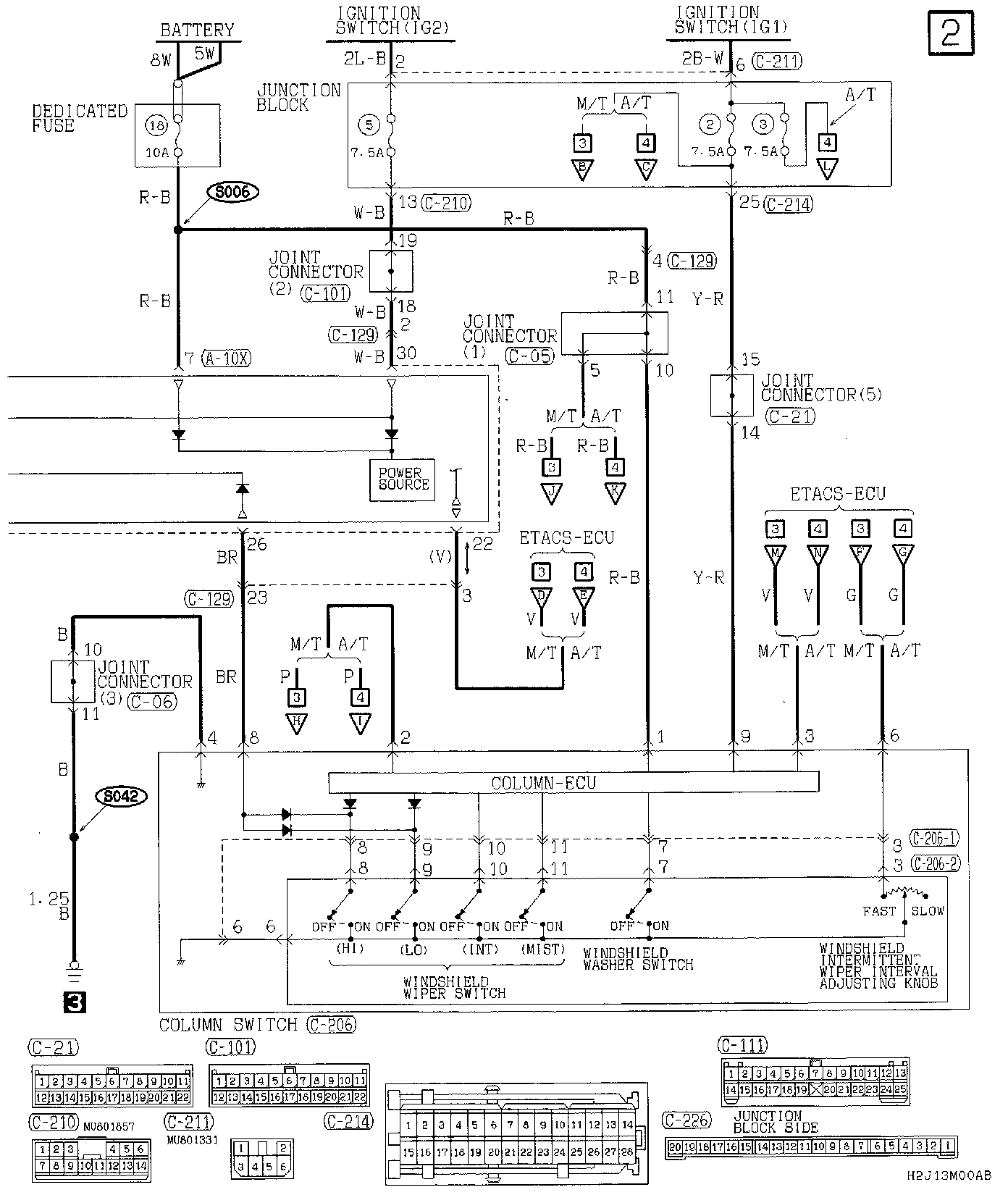

Windshield Wiper And Washer Part 1:



Part 2:



Part 3:



Part 4:

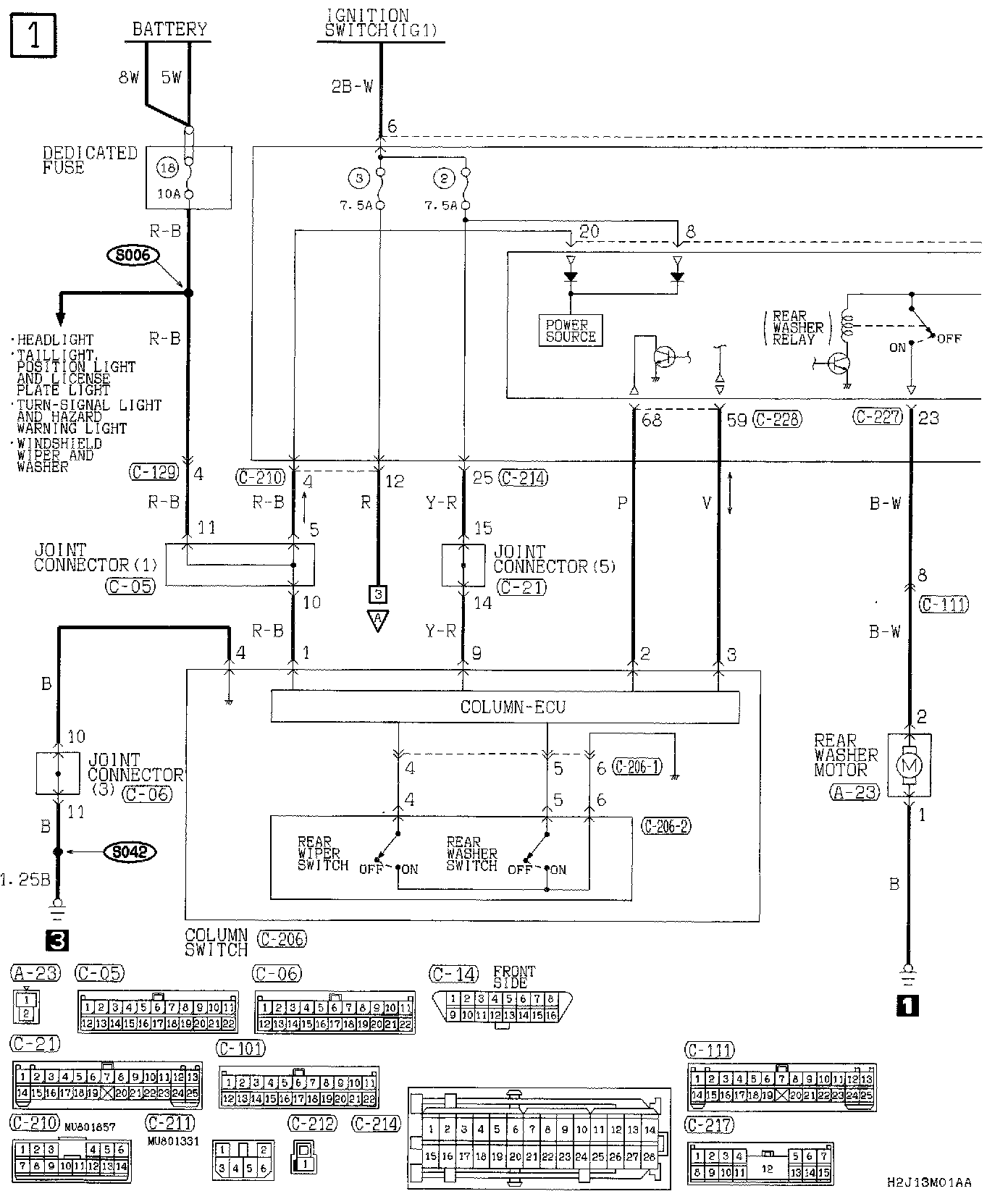

Rear Wiper And Washer Part 1:



Part 2:



Part 3:
