Engine Compartment Harness - A Connectors
Engine Compartment Harness - A Connectors
Engine Compartment - A Connector [01 (2-GR) Thru 14 (2-B)]:

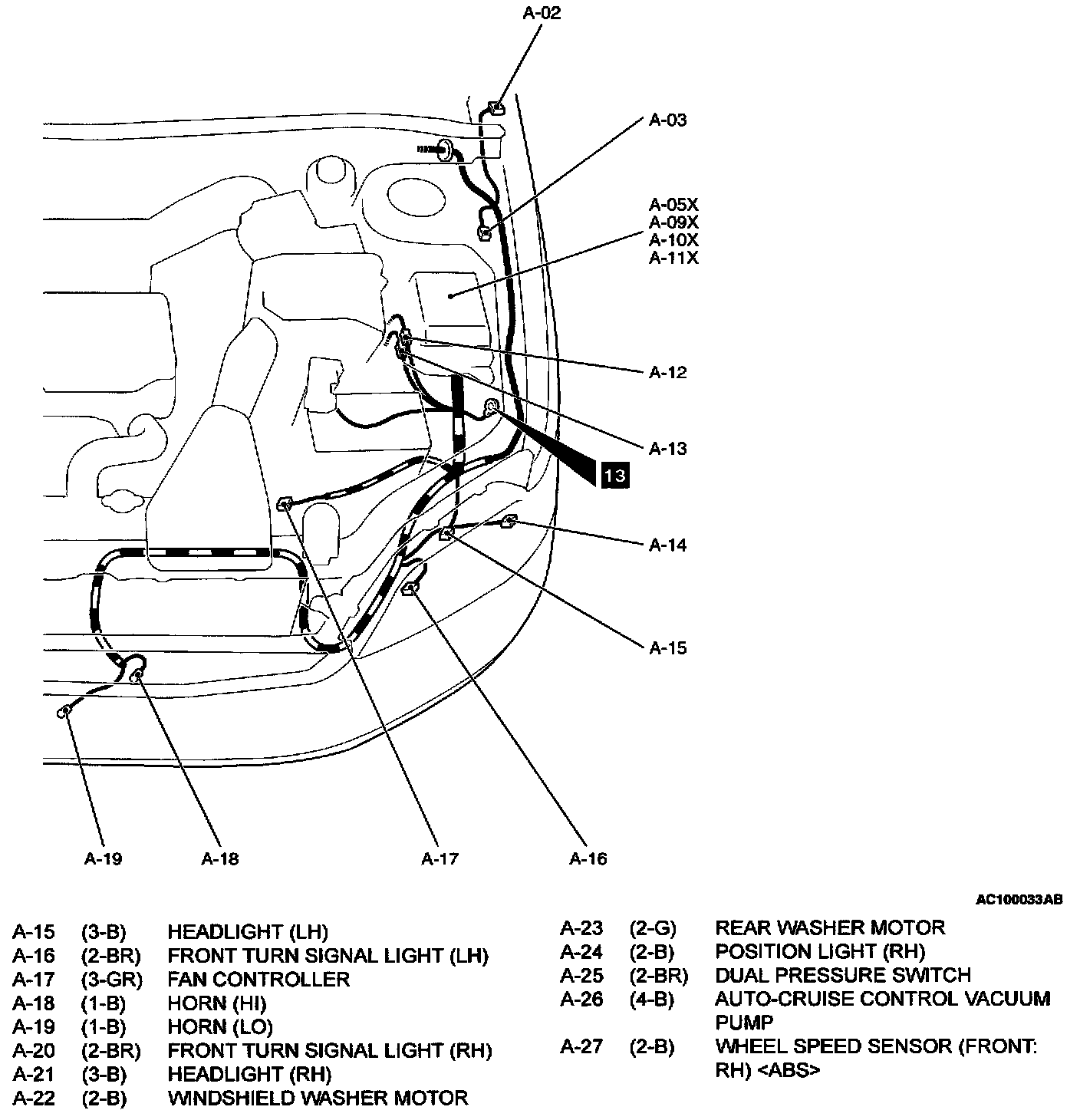

Engine Compartment - A Connector [15 (3-B) Thru 27 (2-B)]:
