Supplemental Restraint System (SRS)

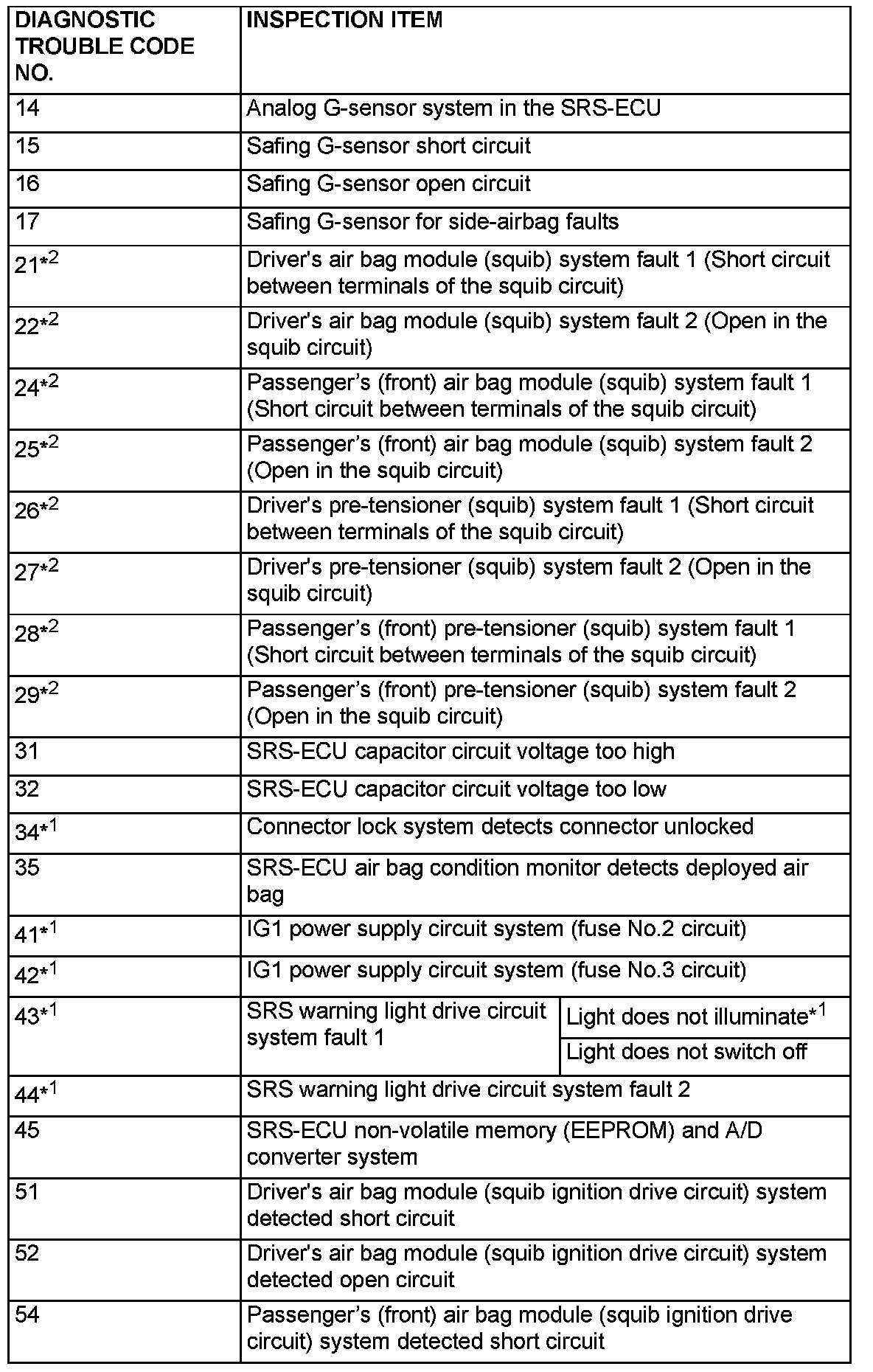

Diagnostic Trouble Code Chart Part 1:

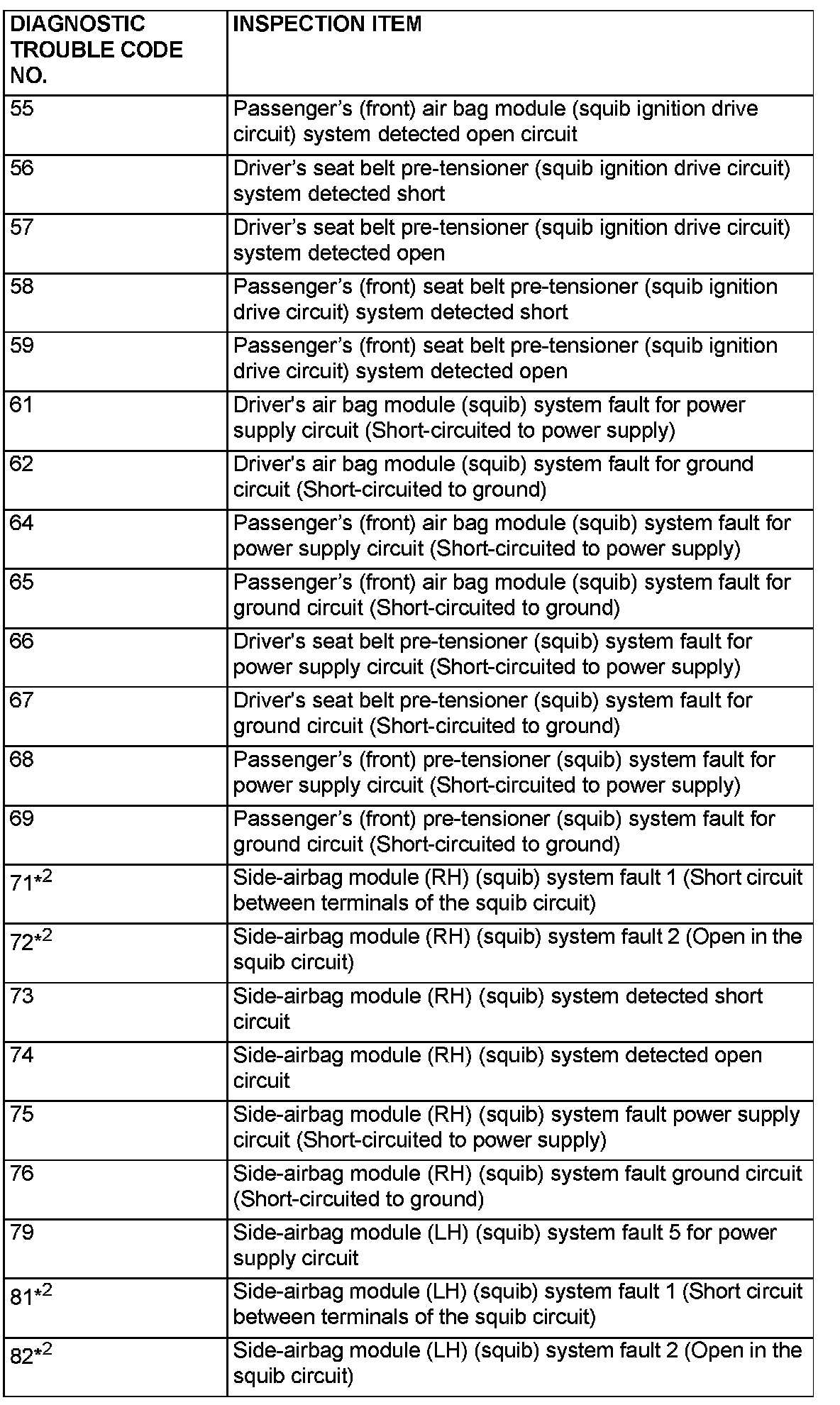

Diagnostic Trouble Code Chart Part 2:




Diagnostic Trouble Code Chart Part 3:




DIAGNOSTIC TROUBLE CODE CHART
Inspect according to the inspection chart that is appropriate for the DTC.
