Engine: Description and Operation
GENERAL DESCRIPTION

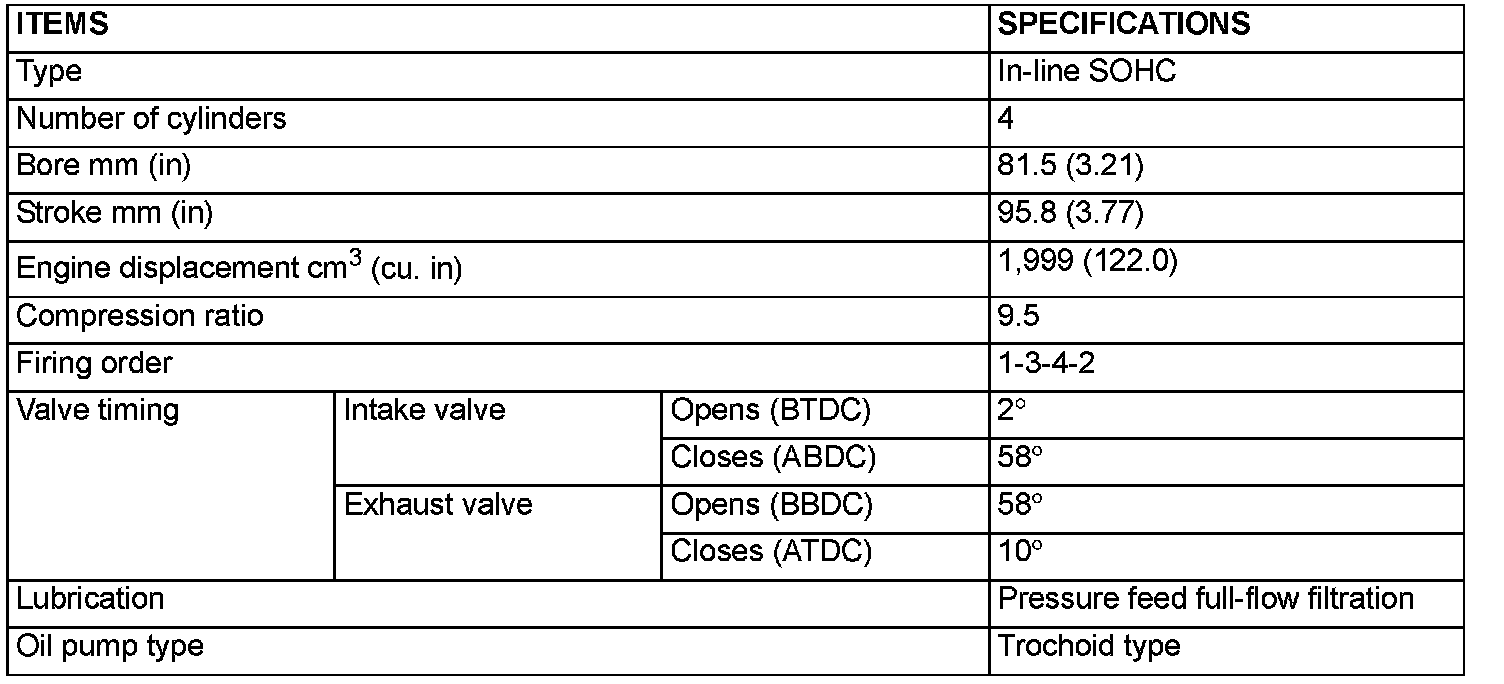

The 4G94 (2.0L) engine is an in-line four-cylinder engine. The cylinder numbers are assigned as 1-2-3-4 from the front of the engine (timing belt side). This engine's firing order is 1, 3, 4, 2.
The 4G94 (2.0L) engine is an in-line four-cylinder engine. The cylinder numbers are assigned as 1-2-3-4 from the front of the engine (timing belt side). This engine's firing order is 1, 3, 4, 2.
