Control Assembly: Locations

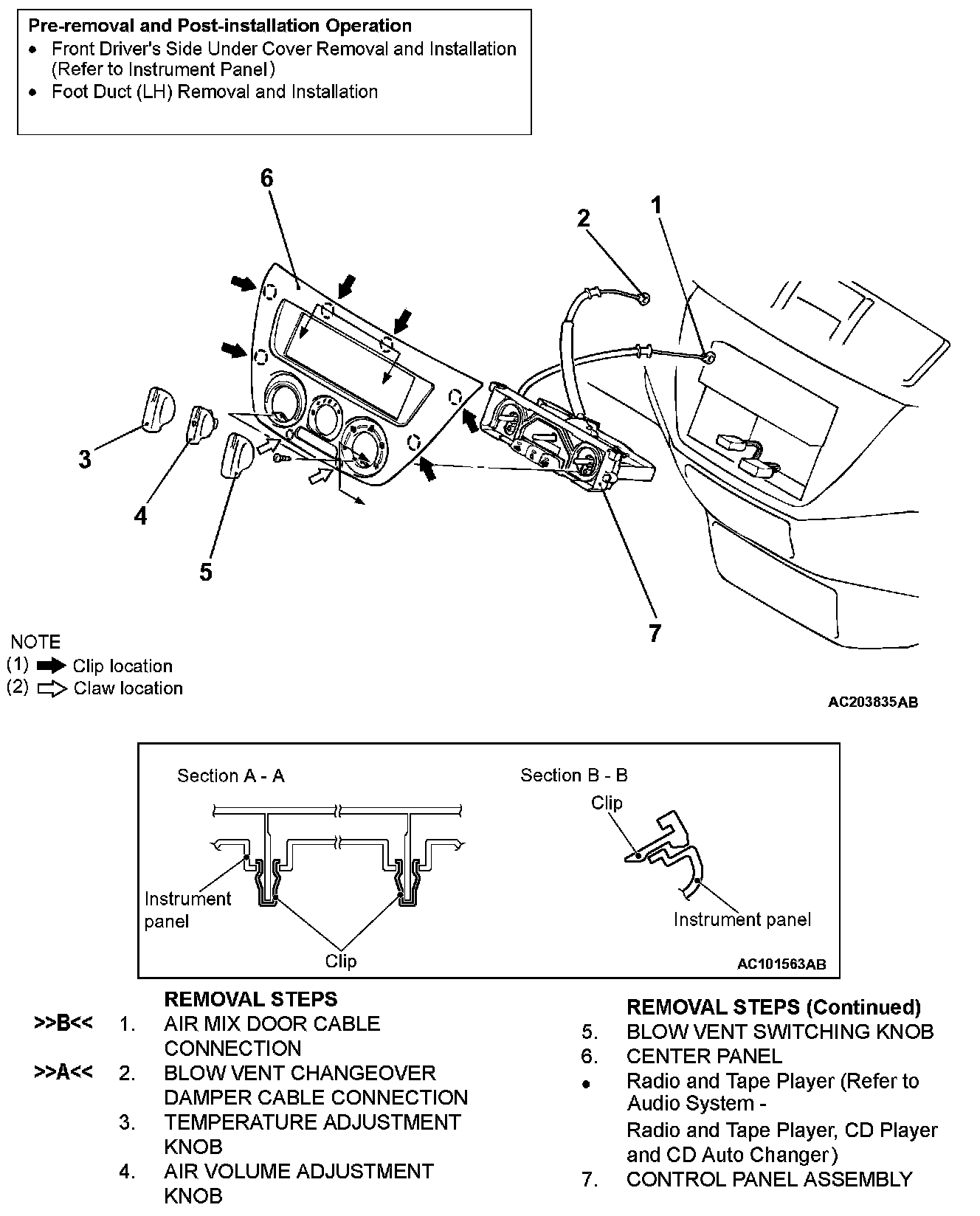

HEATER CONTROL ASSEMBLY DISASSEMBLY AND ASSEMBLY:

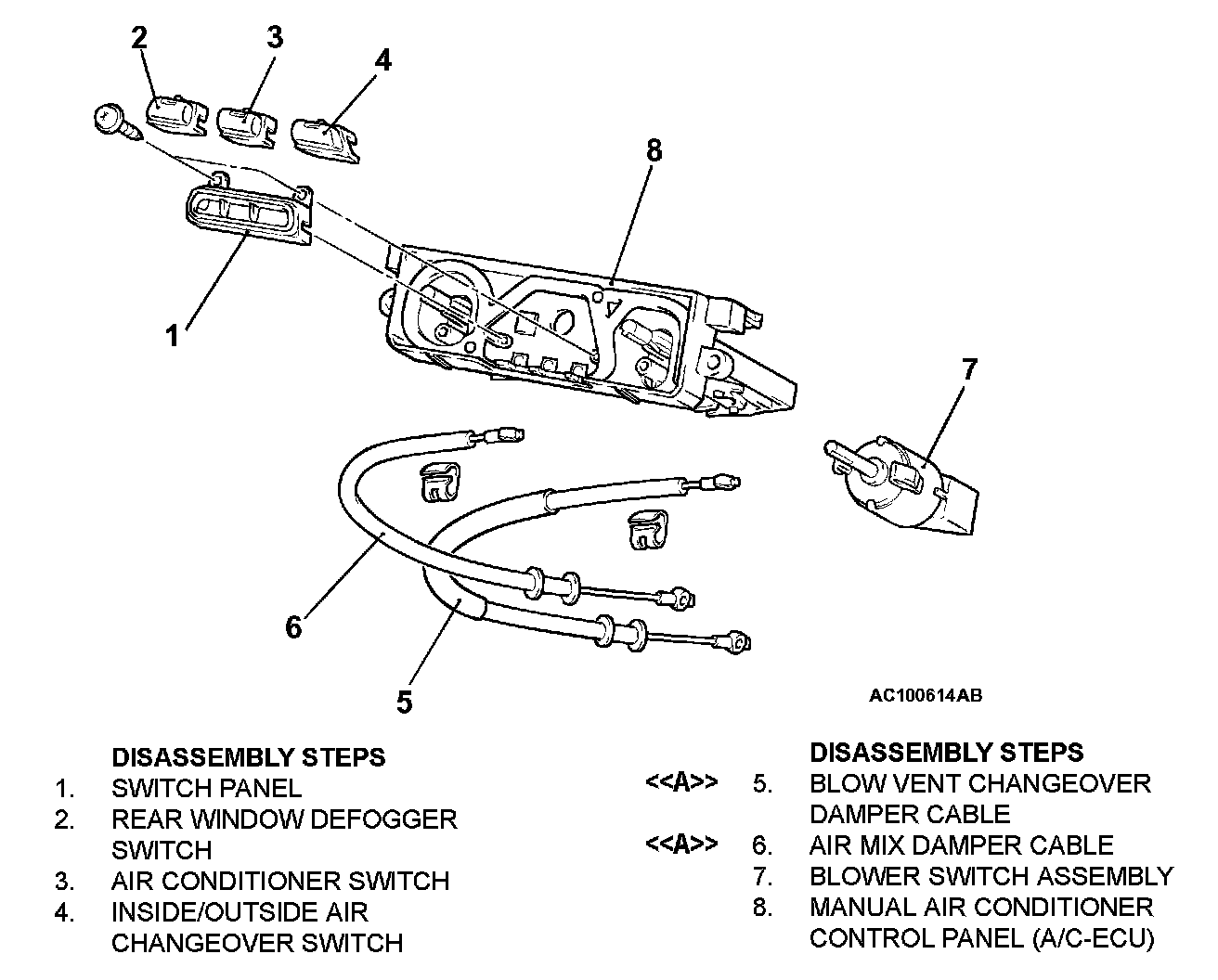

HEATER CONTROL ASSEMBLY AND A/C SWITCH:
