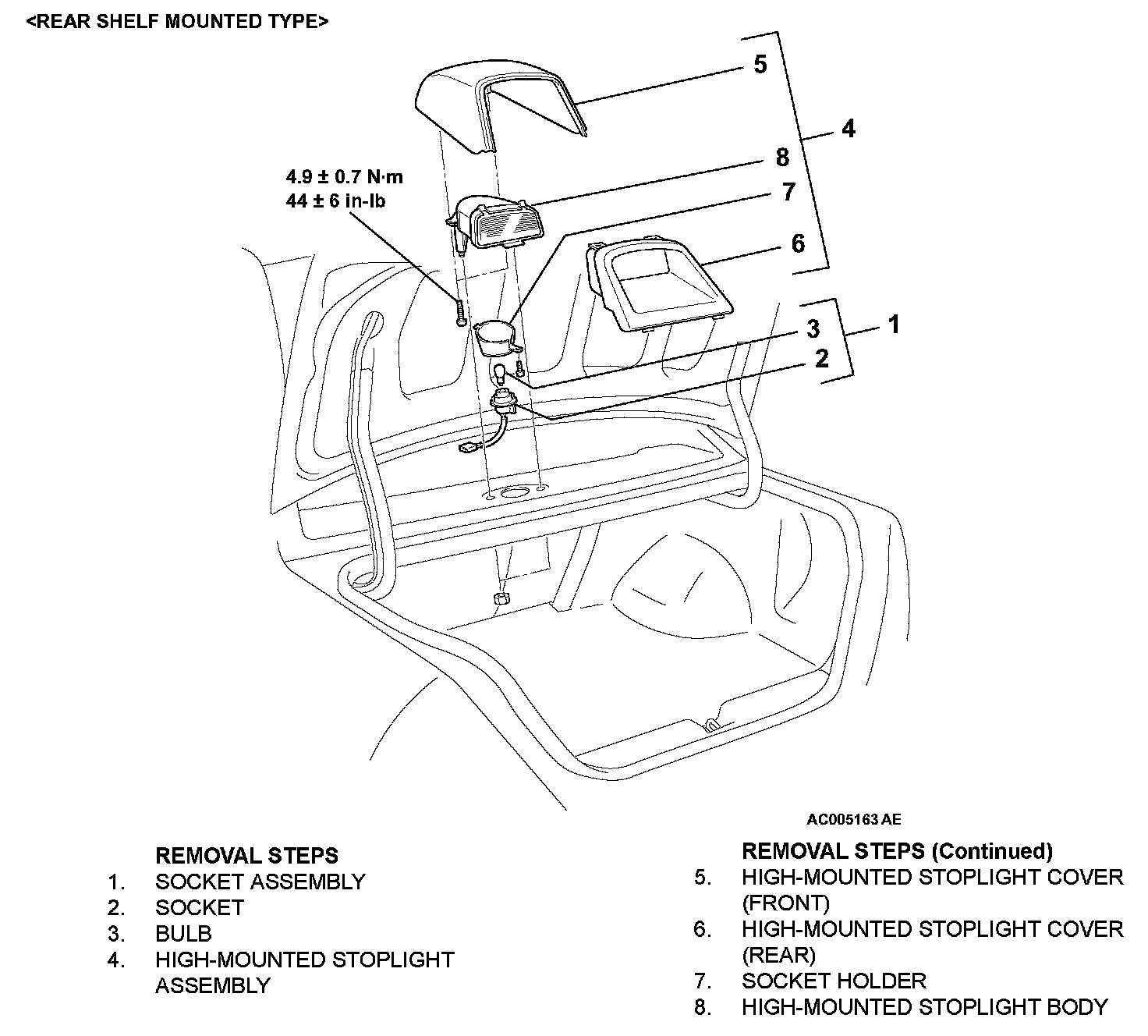

Center Mounted Brake Lamp: Service and Repair









REMOVAL SERVICE POINT

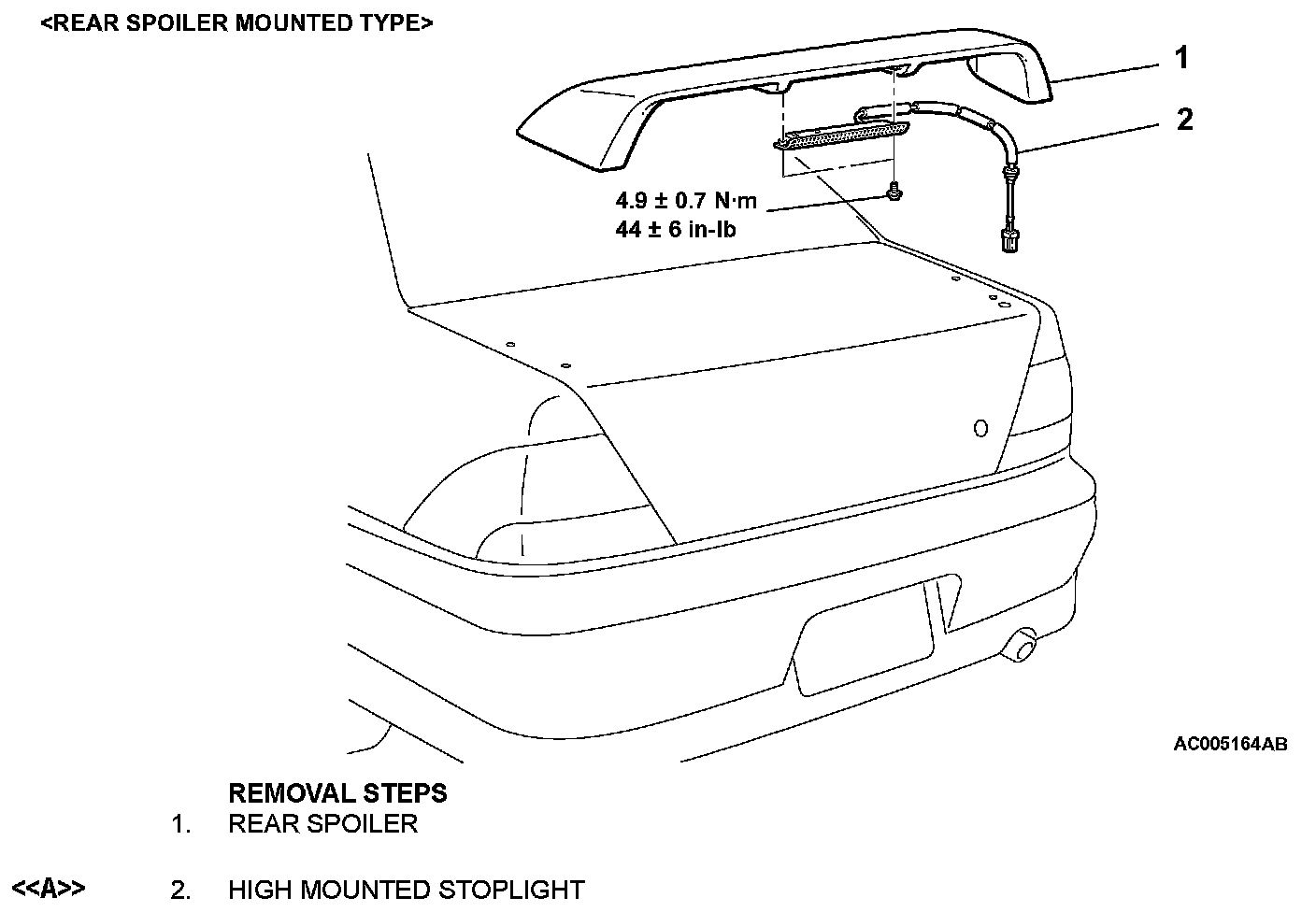

<> HIGH-MOUNTED STOP LIGHT REMOVAL
Use the following steps to easily route high-mounted stop light harness in the event of installation:

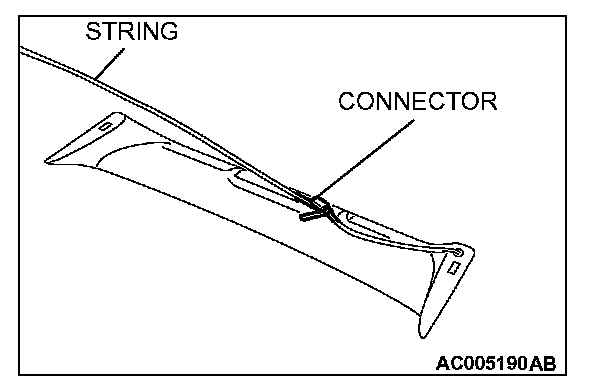

1. Tie a string on the high-mounted stop light harness (at the connector side).

CAUTION: Ensure that the string is tightly tied.

2. Carefully pull out the high-mounted stop light.
