Fuel Delivery and Air Induction: Service and Repair

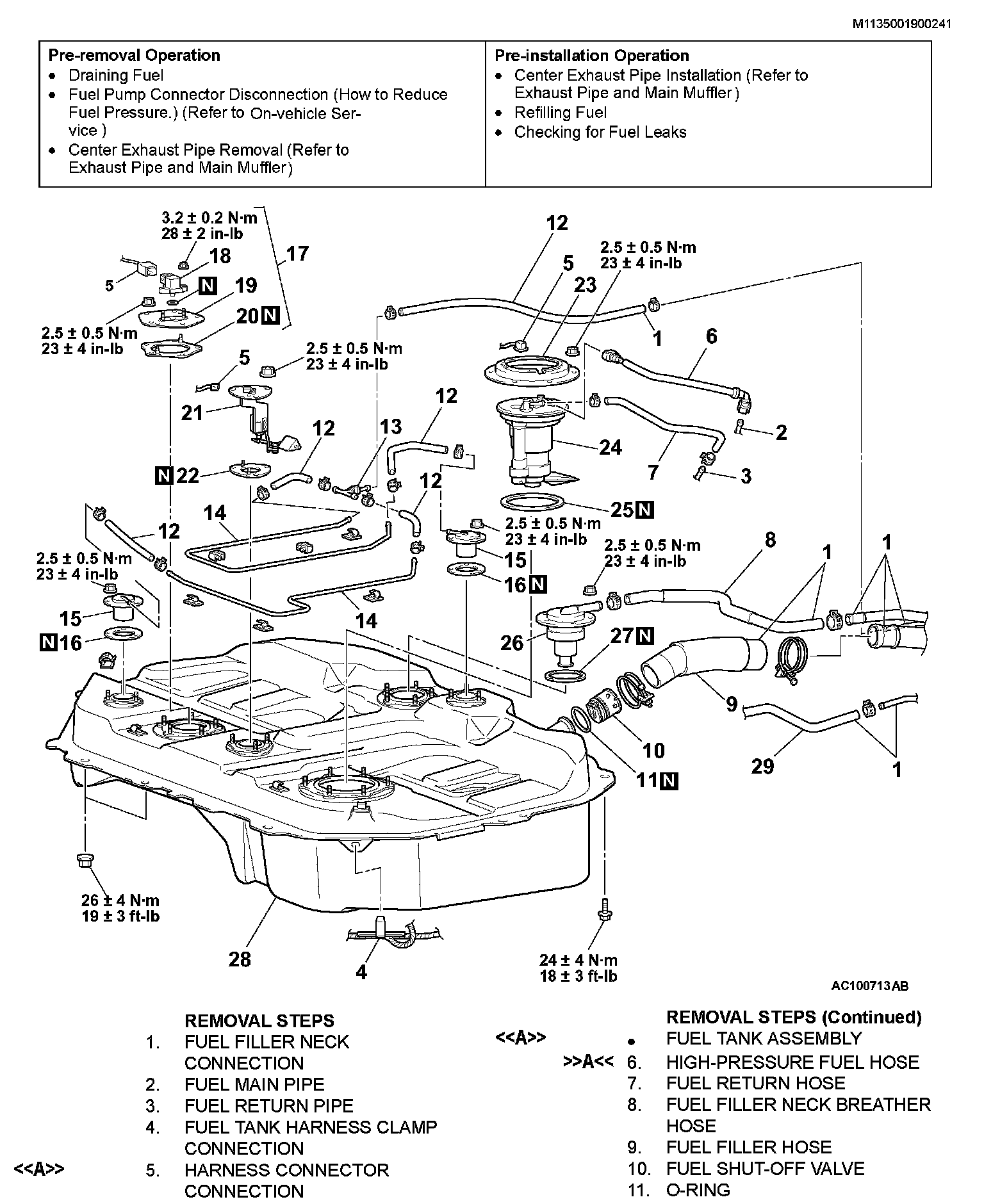

FUEL TANKFuel Tank Part 1:

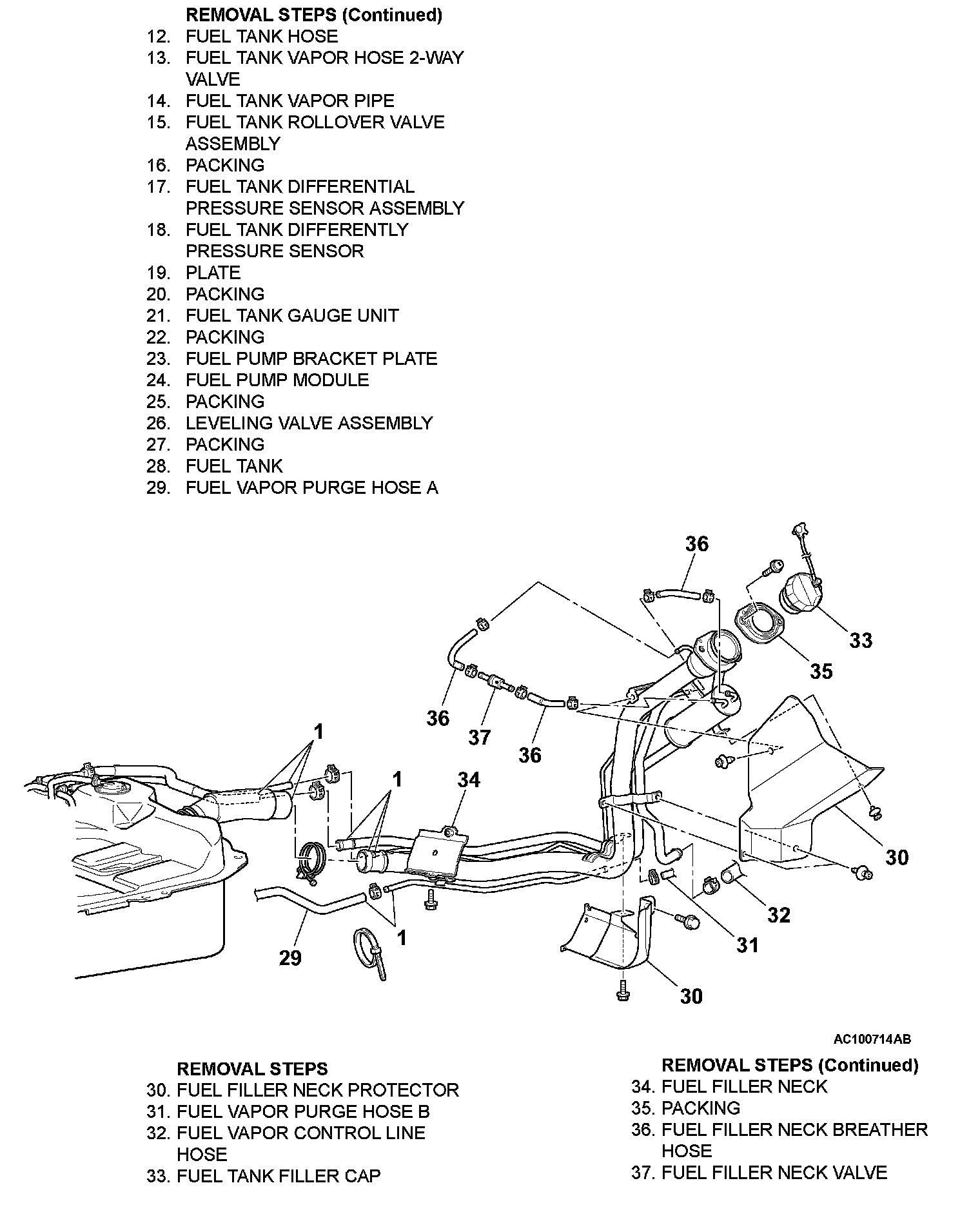

Fuel Tank Part 2:
REMOVAL AND INSTALLATION
Required Special Tool:
- MB991348: Test Harness Set
REMOVAL SERVICE POINTS
<>DISCONNECT HARNESS CONNECTOR/FUEL TANK ASSEMBLY REMOVAL
Lower the fuel tank halfway to disconnect the fuel tank harness connector.
INSTALLATION SERVICE POINT
>>A<
CAUTION: After connecting the quick action joint of the fuel high-pressure hose, pull the joint lightly away from the quick action joint to confirm that it is secure. In addition, confirm that there is a play of approximately 3.0 mm (0.12 inch) at the joint.
