Body - Body Repair Information

No: TSB-02-42A-010

DATE: July, 2002

MODEL: 2003 Lancer

SUBJECT:
BODY REPAIR INFORMATION FOR 2003 LANCER

PURPOSE

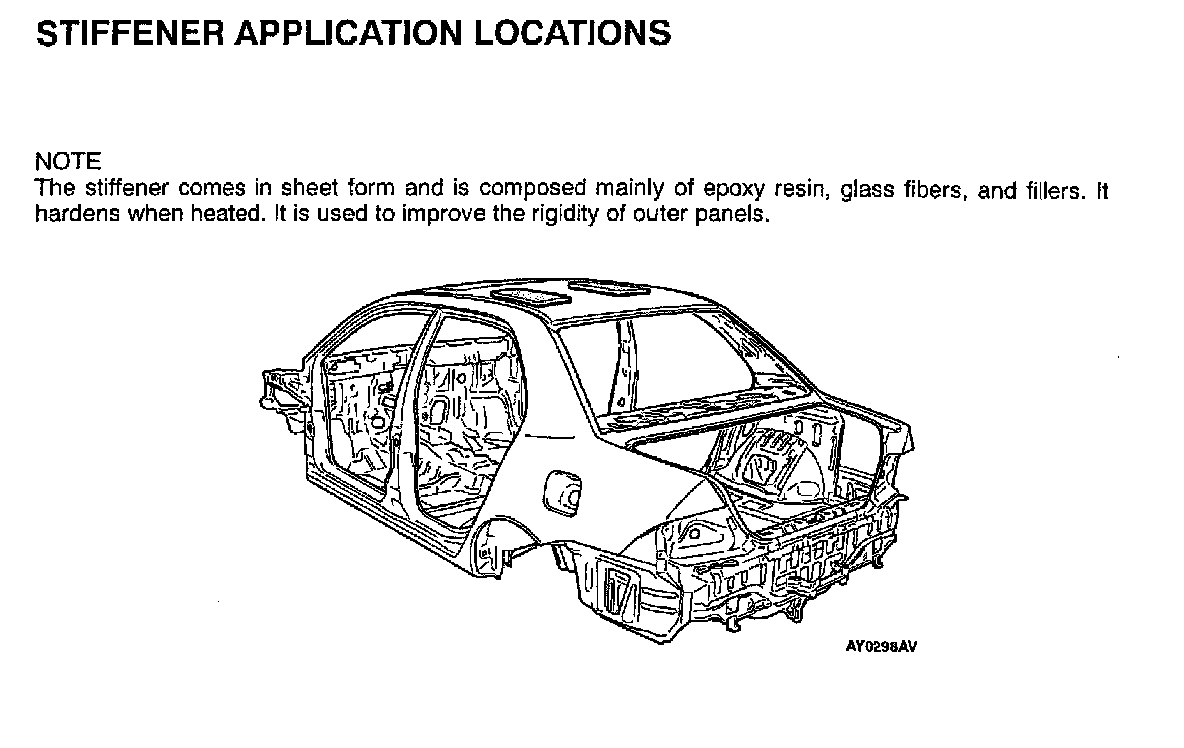

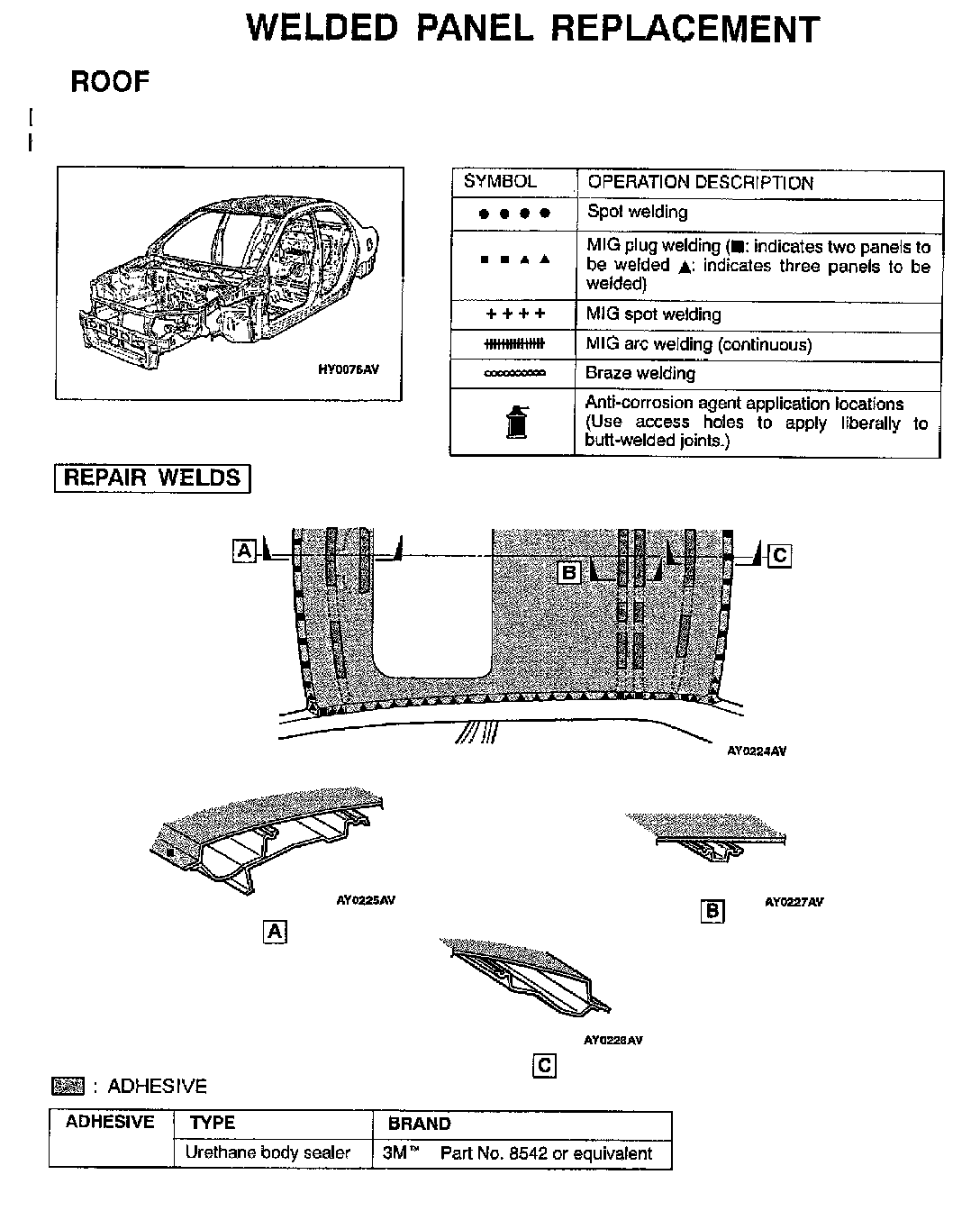

This bulletin provides new body repair information for the 2003 Lancer, to be added to the 2002 Lancer Technical Information and Body Repair Manual. This new information includes sunroof construction, silencer and stiffener locations, welded panels for the sunroof area, and center pillar synthetic resin parts.

AFFECTED VEHICLES
2003 Lancer

AFFECTED MANUAL
2002 Lancer Technical Information and Body Repair Manual

2002 Lancer Technical Information and Body Repair Manual. Add the following new information for the 2003 Lancer:




2002 Lancer Technical Information and Body Repair Manual. Add the following new information for the 2003 Lancer:




2002 Lancer Technical Information and Body Repair Manual. Add the following new information for the 2003 Lancer:




2002 Lancer Technical Information and Body Repair Manual. Add the following new information for the2003 Lancer:
