M/T - 5th/Reverse Gear Synchronizer Sleeve Installation
No: TSB-03-22-001DATE: November, 2003
MODEL: 2003 Lancer Evolution
SUBJECT:
5TH/REVERSE GEAR SYNCHRO SLEEVE CONFIGURATION AND REPLACEMENT INFORMATION
PURPOSE
This bulletin contains information about a newly configured 5th/reverse gear synchronizer sleeve for the 2003 Lancer Evolution manual transmission. Important instructions for installing the synchronizer sleeve and its related hub is also included.
BACKGROUND INFORMATION

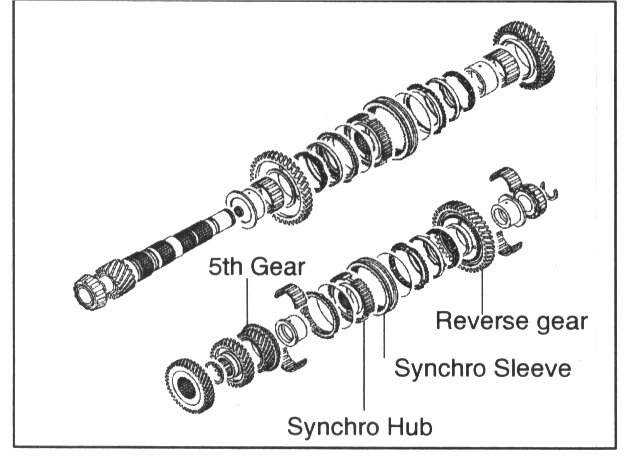

Some vehicles may have a 5th/reverse synchronizer sleeve which may differ from the replacement part you may receive from MMNA parts. Some sleeves may be grooved on the outside surface and others may not have this groove. This bulletin details the two types of sleeves and contains information to correctly install the synchronizer sleeve and its related hub. Instructions for correct positioning of the sleeve and hub onto the transmission shaft is also detailed.
AFFECTED VEHICLES
2003 Lancer Evolution
PROCEDURE
5th/Reverse Synchronizer Sleeve Configuration

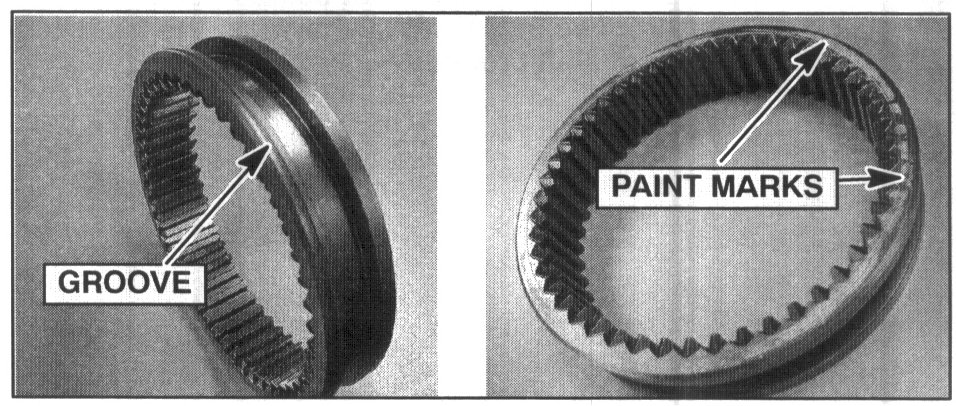

There are two different types of 5th/reverse synchronizer sleeves. One is grooved around the outside edge on one side, the other has no groove, but instead has paint markings on one side. The groove or paint mark is used as a installation direction indicator during transmission assembly. These parts are interchangeable.

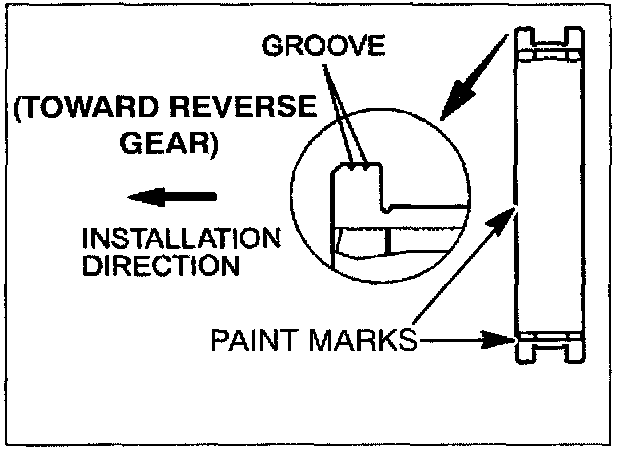

The groove or paint marking indicates the installation direction for the sleeve when assembling it onto the transmission shaft. Make sure the grooved side or paint mark is installed toward the reverse gear when installing the sleeve onto the transmission shaft.
NOTE:
If a 5th/reverse synchronizer sleeve without the groove is to be reused during a transmission overhaul, mark the side of the sleeve toward the reverse gear so you can install the gear correctly during transmission reassembly The original paint mark on the gear without the groove can disappear with use.
5th/Reverse Synchronizer Hub & Sleeve Installation

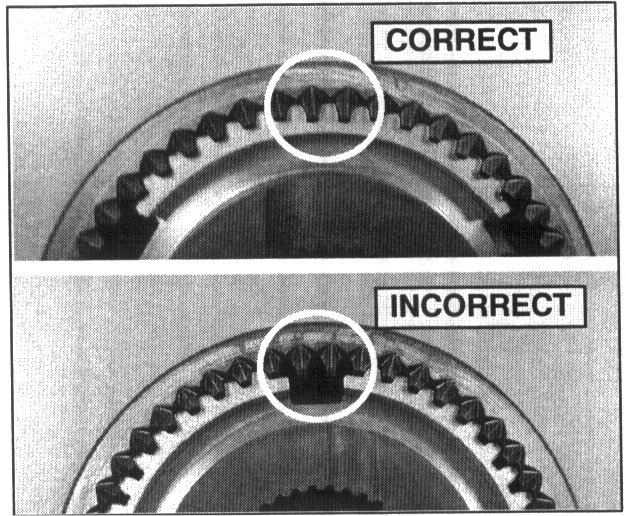

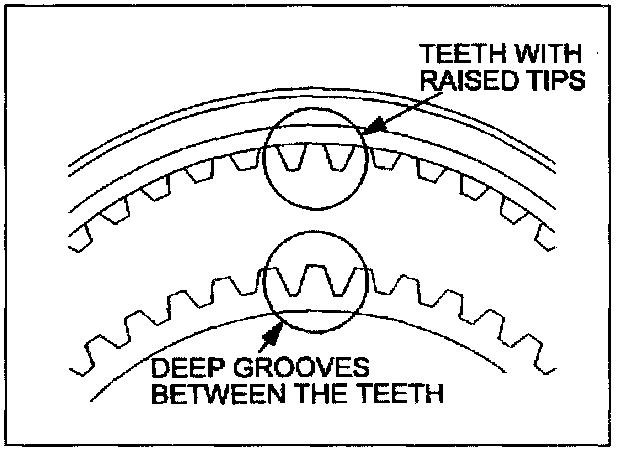

Install the synchronizer sleeve so the three sets of two longer teeth with raised tips are aligned with the areas on the hub that have deeper grooves between the teeth (three sets total).
CAUTION
DO NOT position the synchronizer hub with the synchronizer sleeve's three sets of longer teeth in the detent gaps of the synchronizer hub. The sleeve's longer teeth with the raised tips must be positioned into the deeper grooves in the hub. Otherwise, the transmission will not shift properly.
PARTS INFORMATION
Refer to CAPS for part number information. Use genuine Mitsubishi Parts.
WARRANTY INFORMATION
This bulletin is for information only, not warranty authorization. Normal warranty procedures apply.
