Home >> Mitsubishi >> 2004 >> Eclipse L4-2.4L SOHC >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fusible Link >> Application and ID

Fusible Link: Application and ID

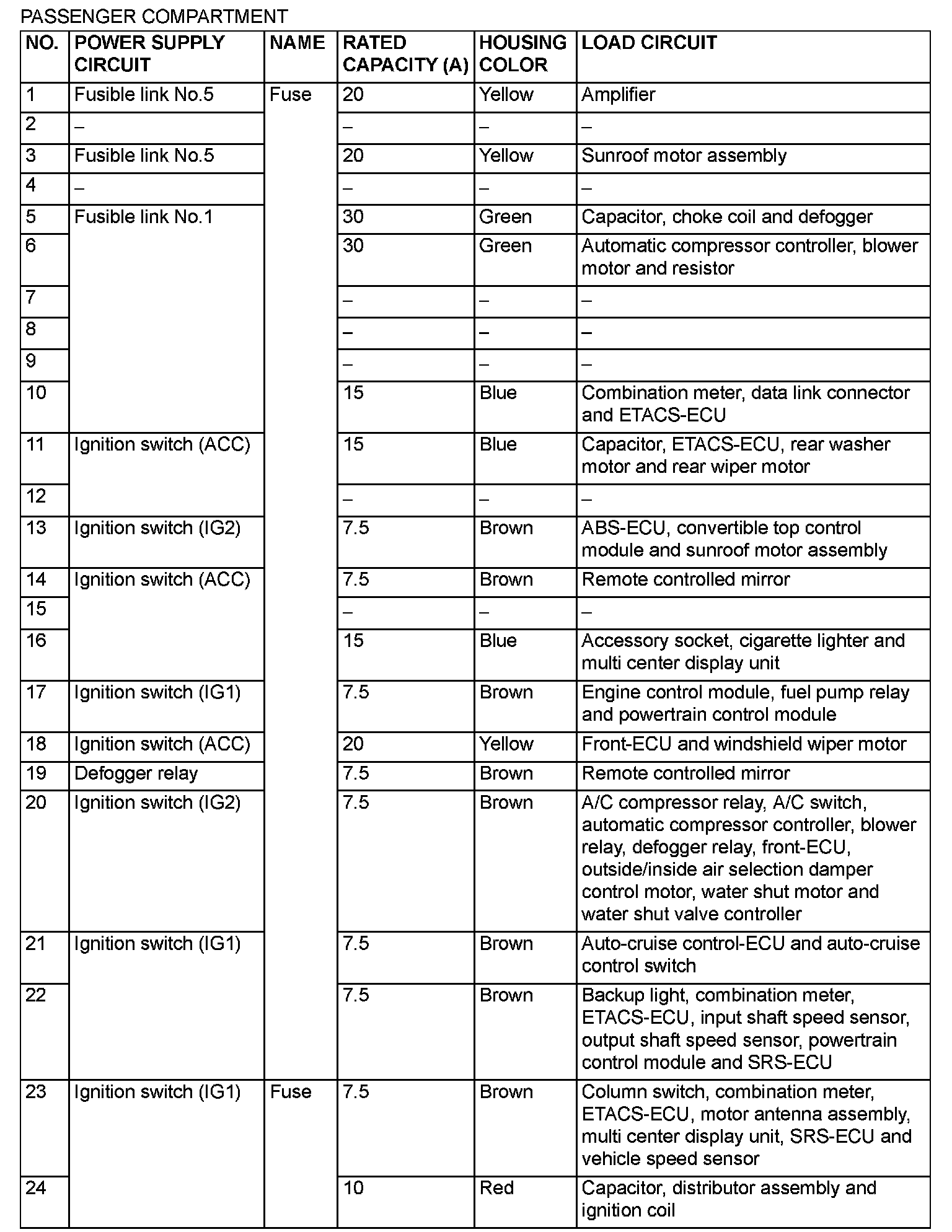

Application Table:



Application Table:



Location View:



Application Table:



Location View:
