Blower Motor: Testing and Inspection

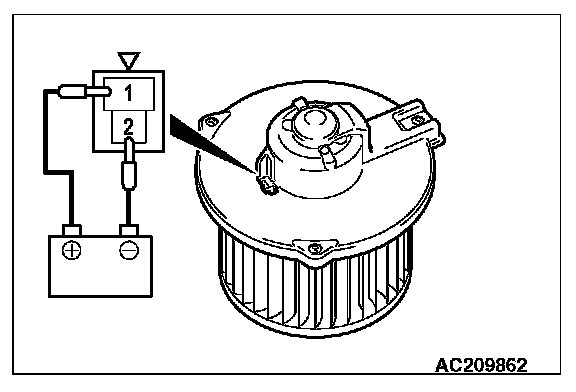

BLOWER FAN AND MOTOR CHECK




When battery voltage is applied between the terminals, check that the motor operates. Also, check that there is no abnormal noise.

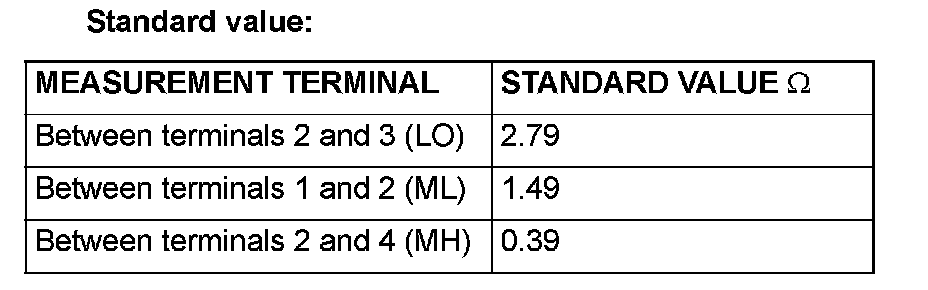

RESISTOR CHECK







Use an Ohmmeter to measure the resistance between the terminals. Check that the measured value is at the standard value.
