Dome Lamp: Service and Repair

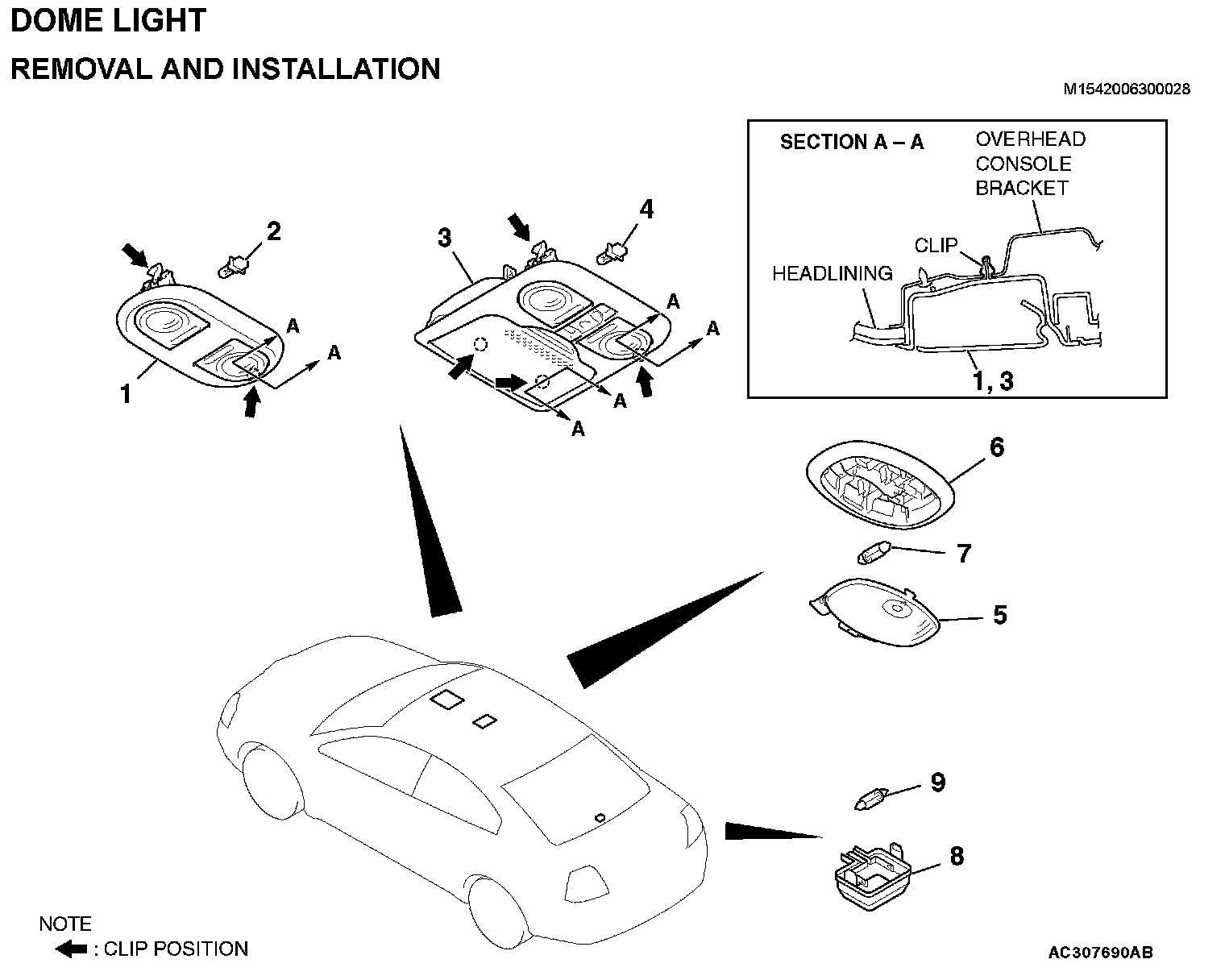

DOME LIGHT
Part 1:
Part 2:

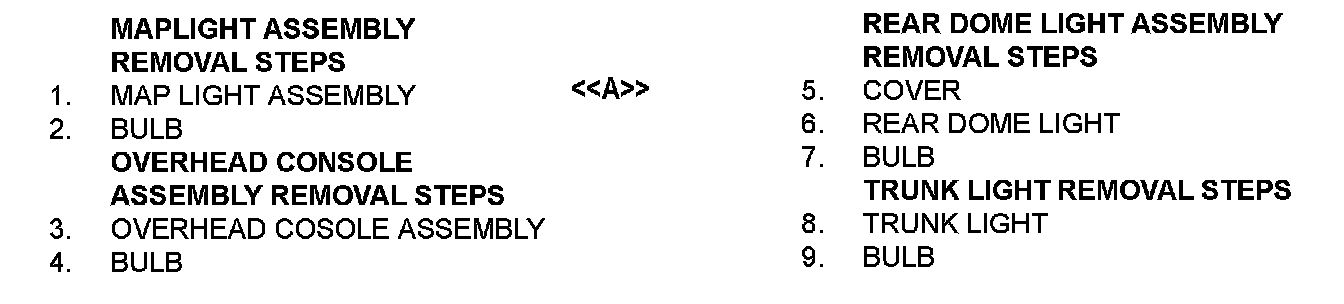

REMOVAL AND INSTALLATION
REMOVAL SERVICE POINT
<
> COVER REMOVAL

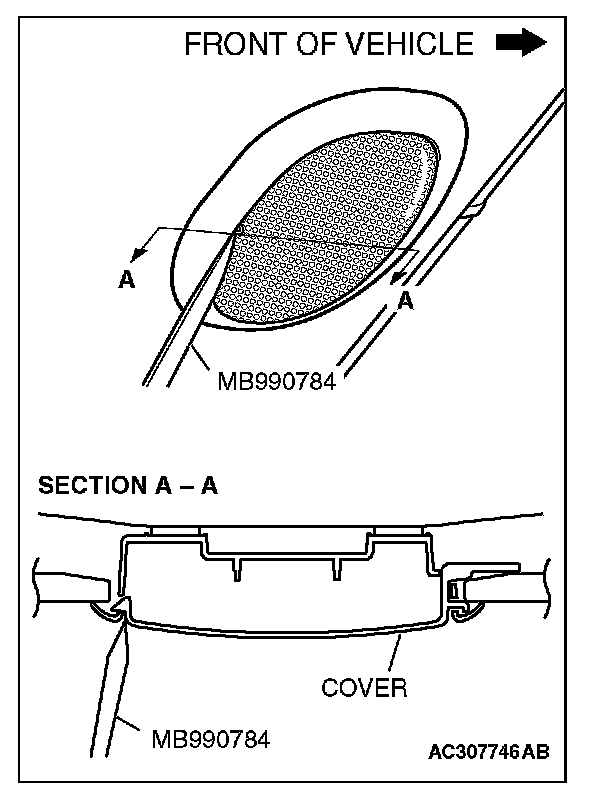

Use special tool MB990784 to remove the cover as shown in the illustration.
