Information Bus: Adjustments
Part 1:
Part 2:
ON-VEHICLE SERVICE
CONFIGURATION FUNCTION

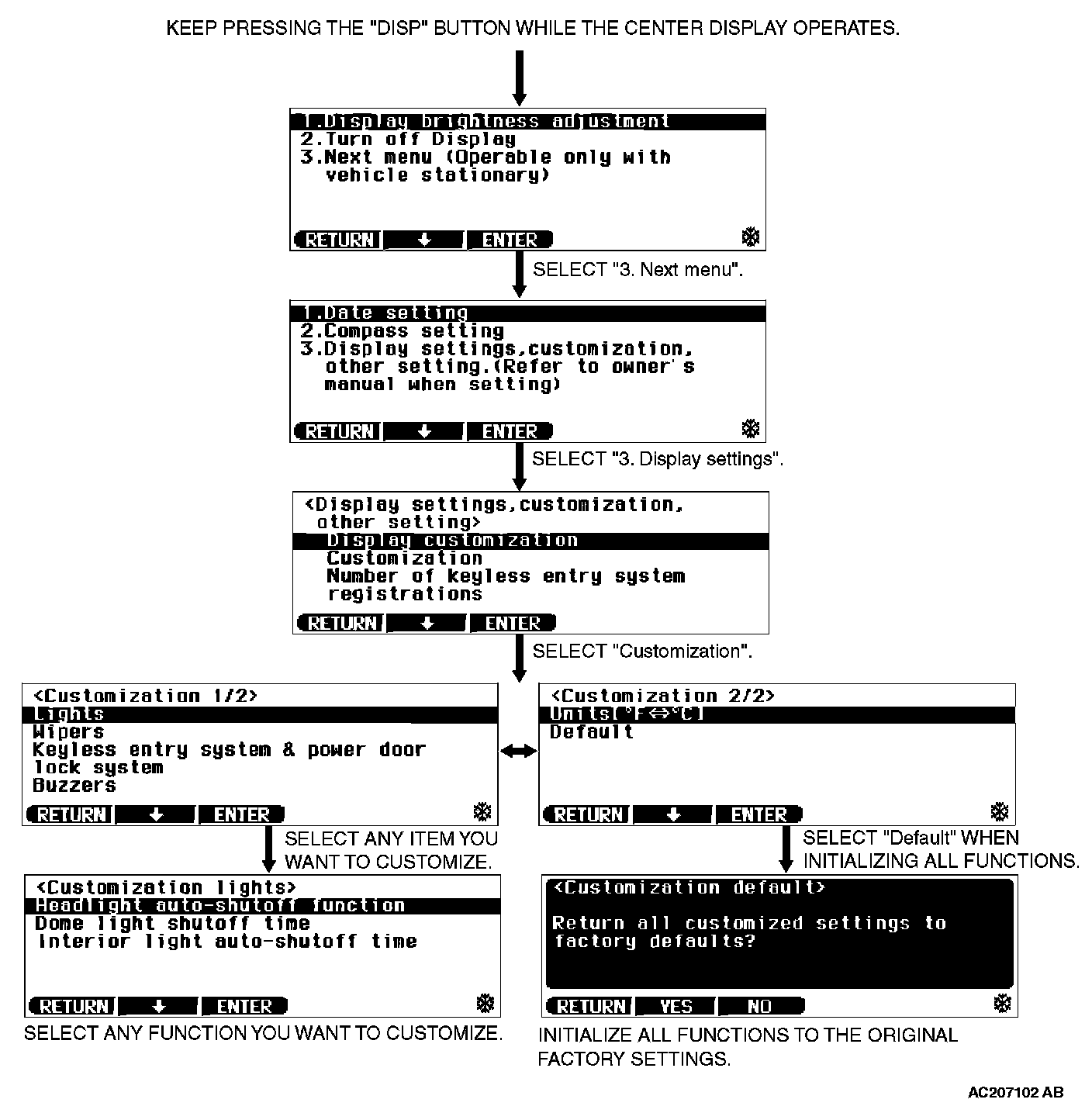

Adjustment by operating the multi center display

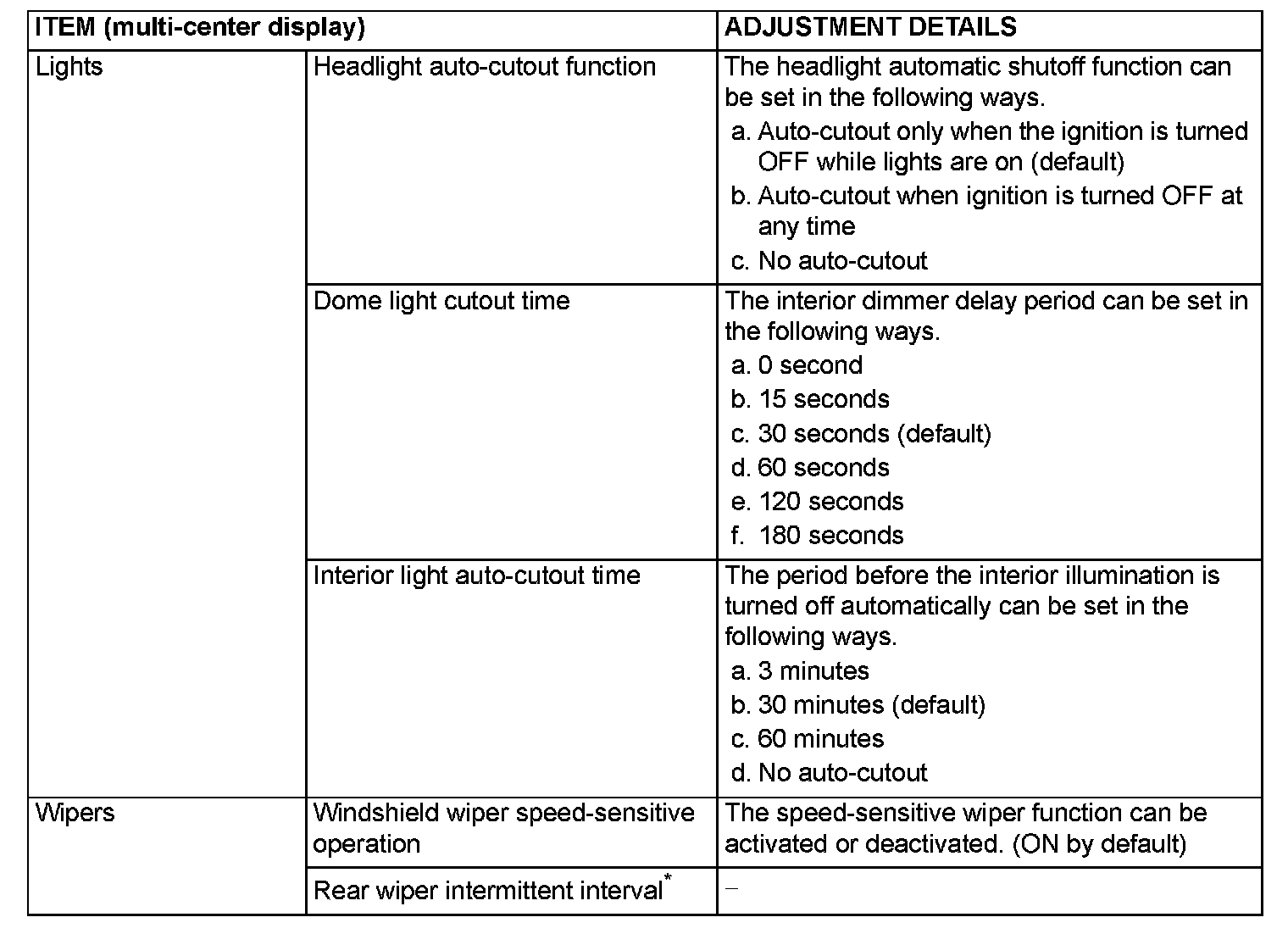

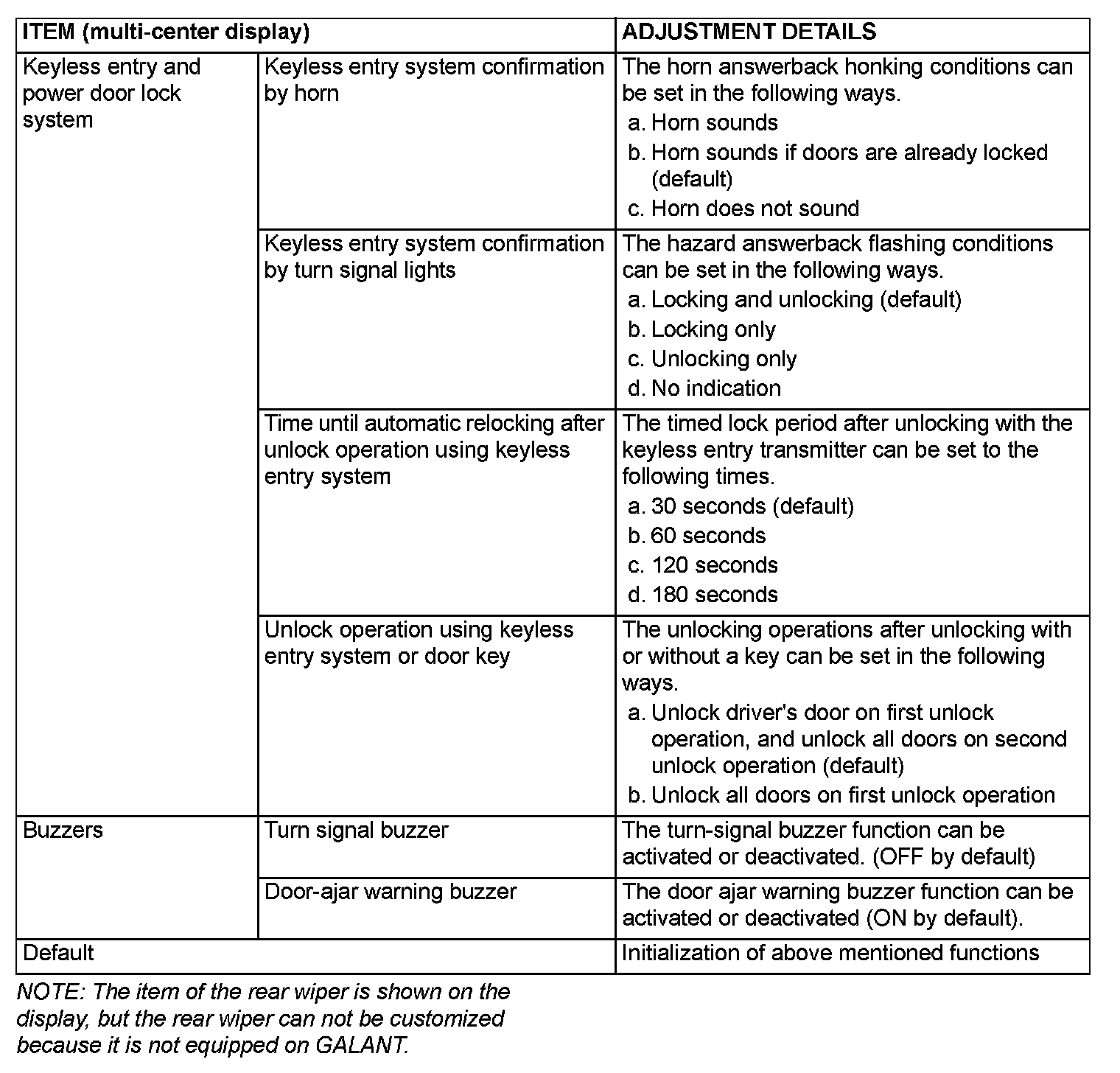

The given function and system customizations are possible by using the multi center display.
