A/C - Defogger Circuit Diagrams/Diagnosis Revisions

No.: TSB-05-55-002
DATE: June, 2005
MODEL: 2004-05 Galant

SUBJECT:
DEFOGGER CIRCUIT DIAGRAMS
AND TROUBLESHOOTING -
SERVICE MANUAL REVISION

TSB Revision: TSB-05-55-002

PURPOSE

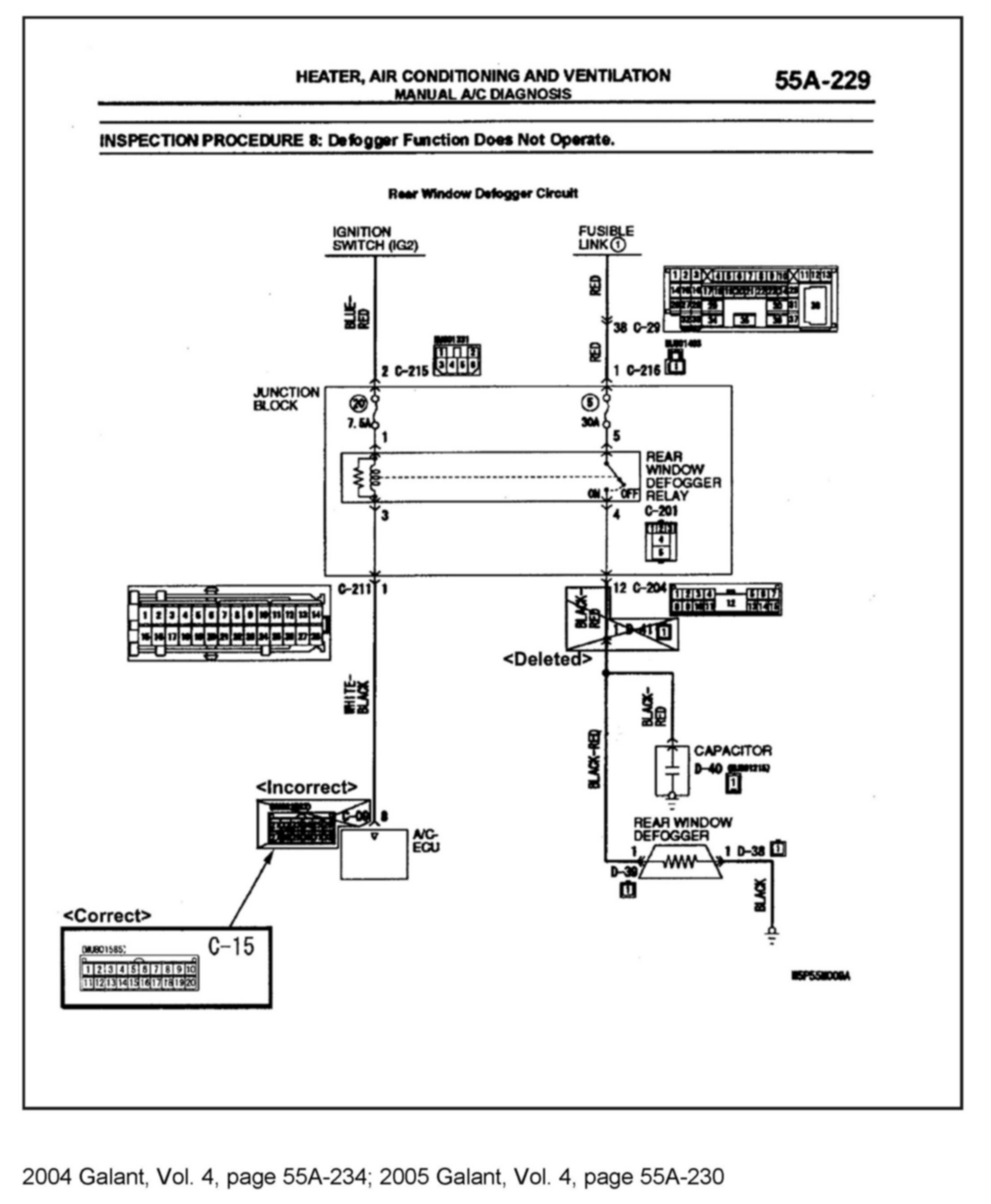

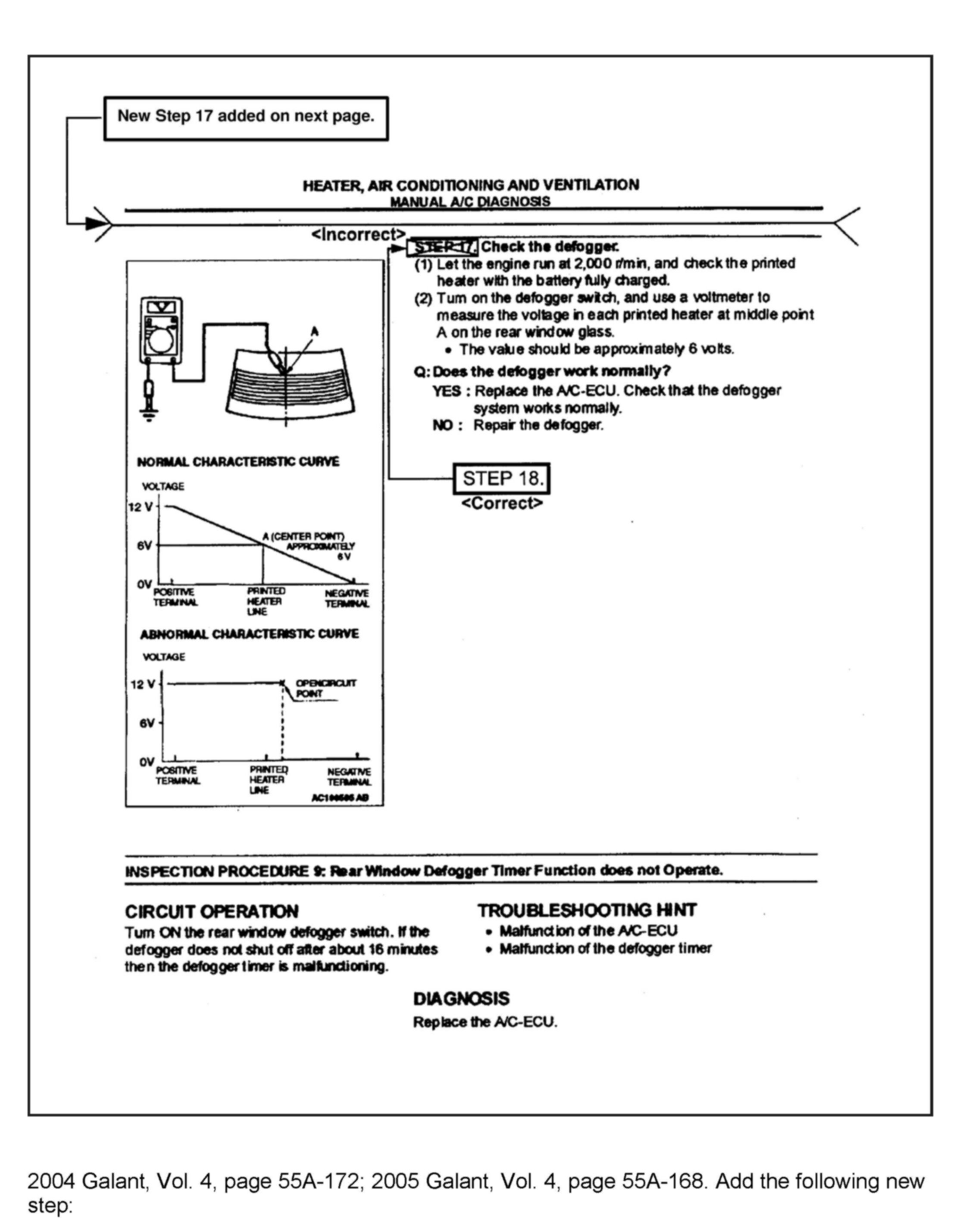

Inspection Procedure 8, "Defogger Function Does Not Operate" and the related circuit diagrams are incorrect in the affected service manual pages. This bulletin contains corrected defogger information for these pages.

Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual pages.

AFFECTED VEHICLES

2004-05 Galant

AFFECTED SERVICE MANUALS

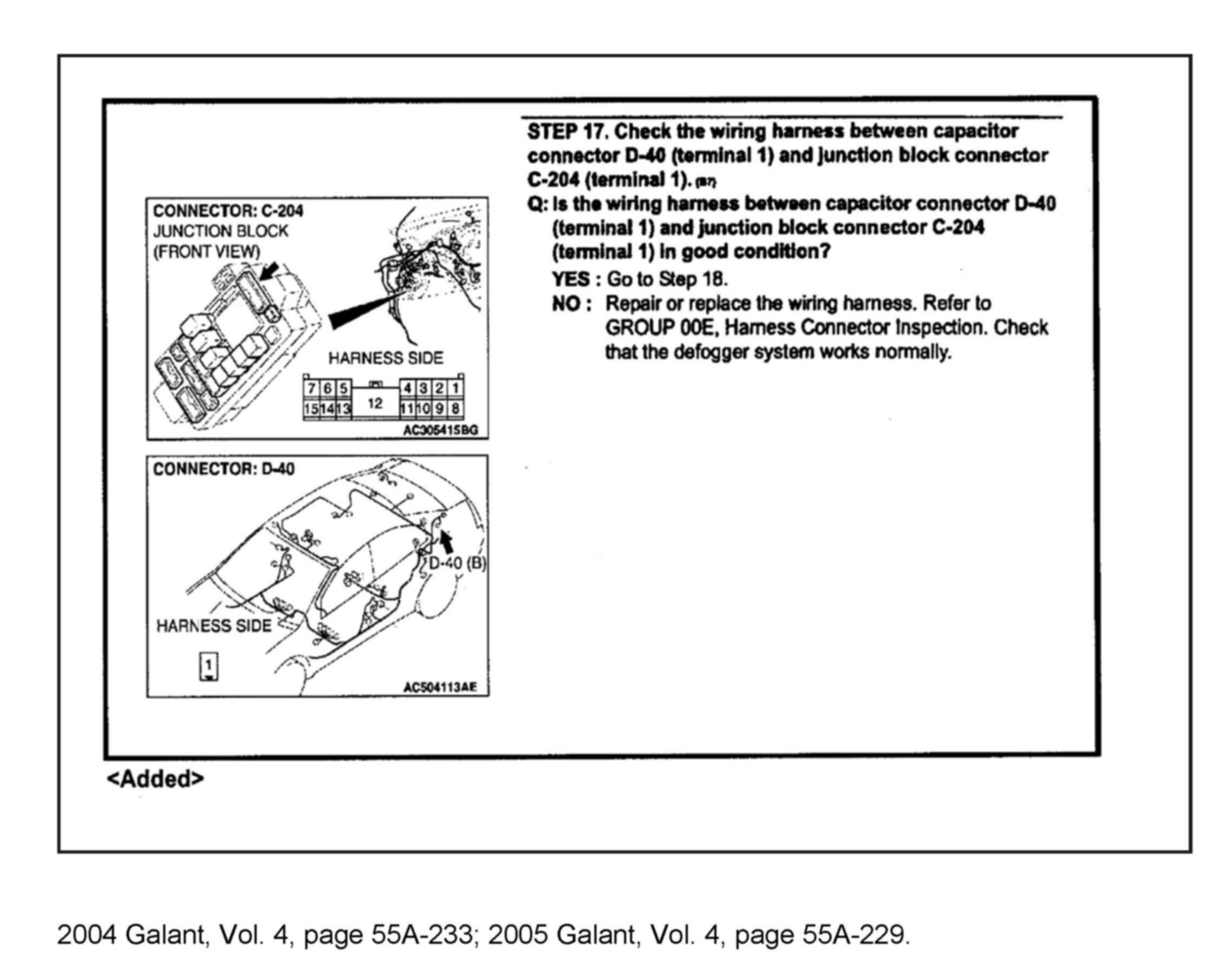

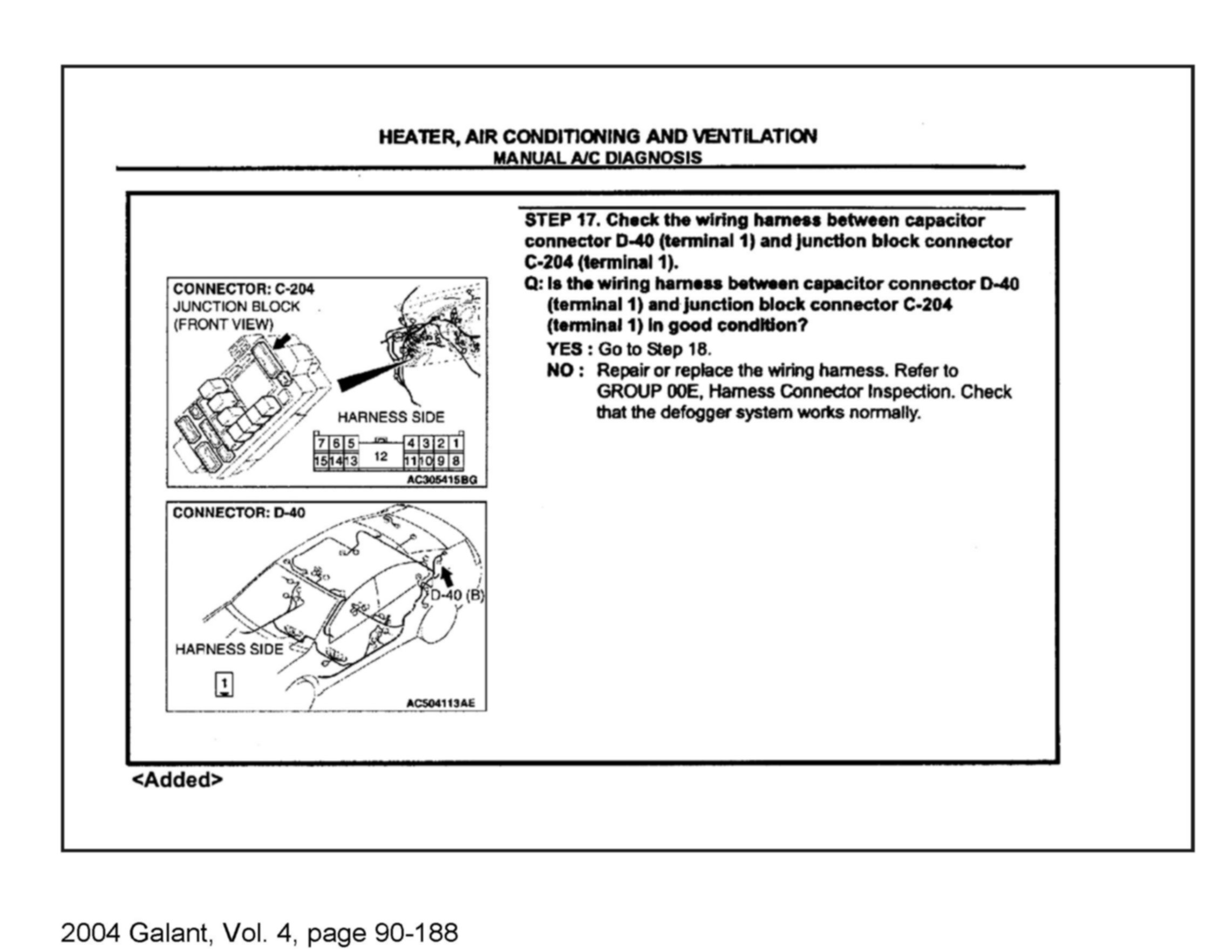

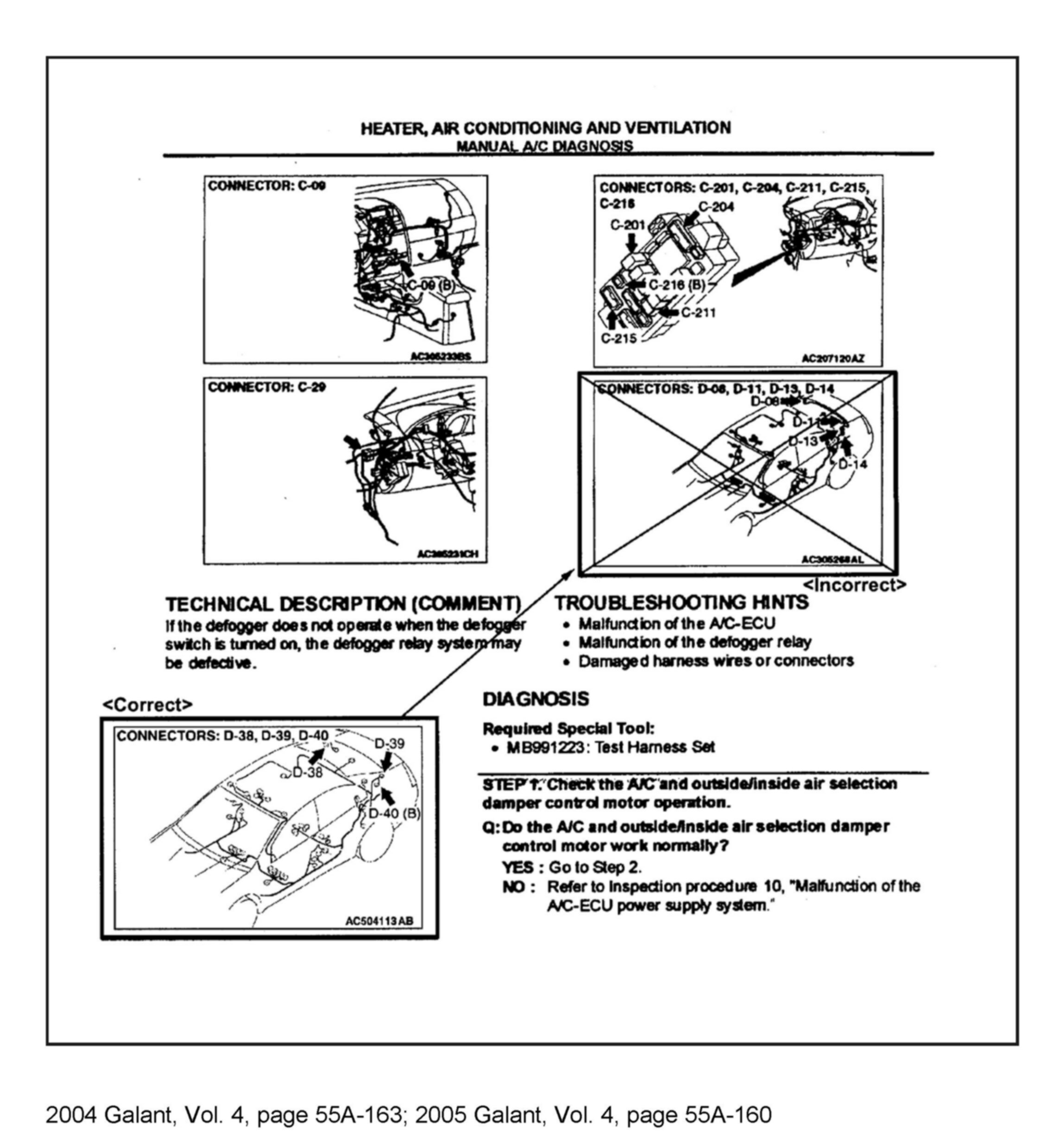

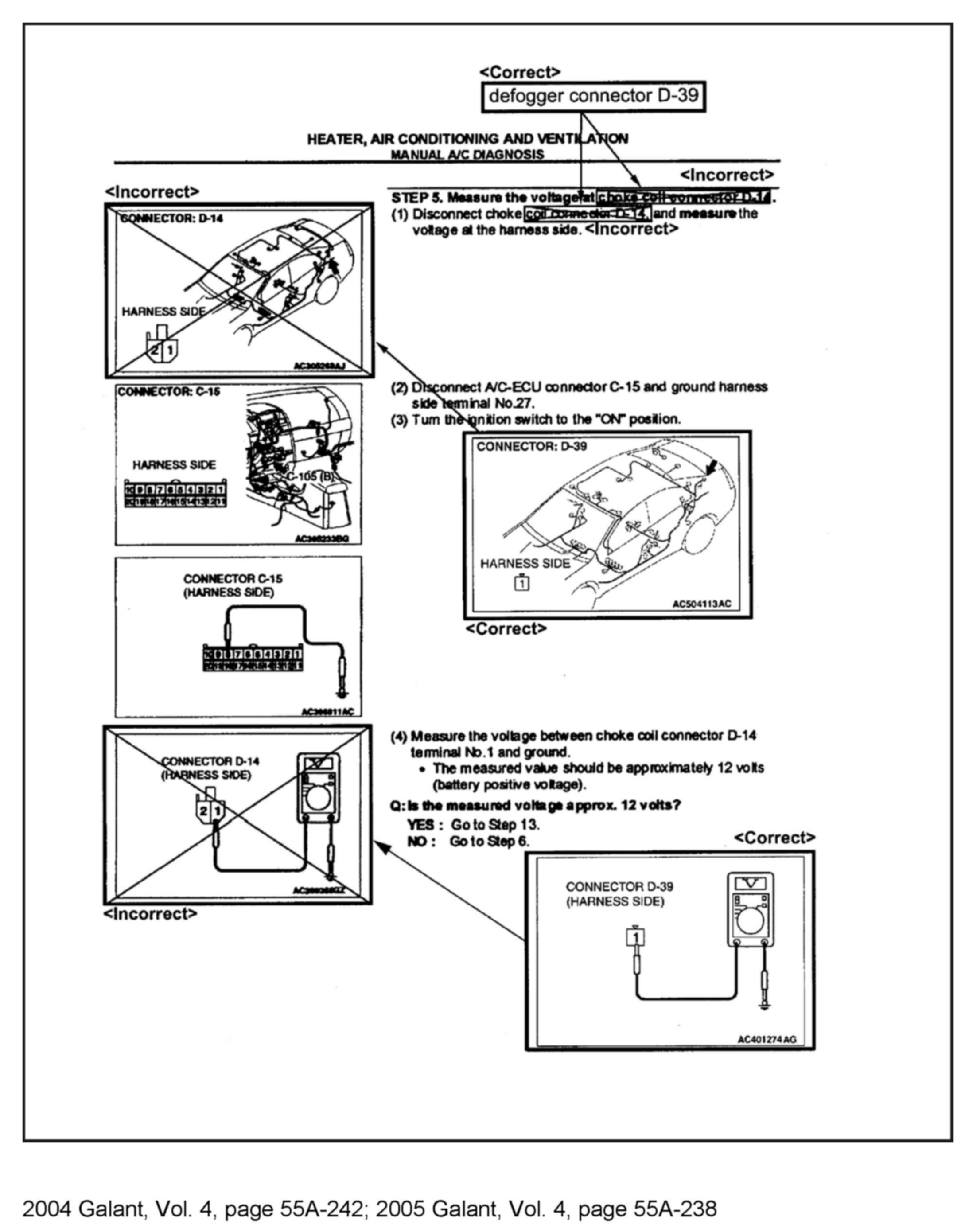

2004 Galant, Volume 4, pages 55A-161 thru -164; 55A-169 thru -171; 55A-233 thru -236; 55A-242 thru -245; page 90-xxx

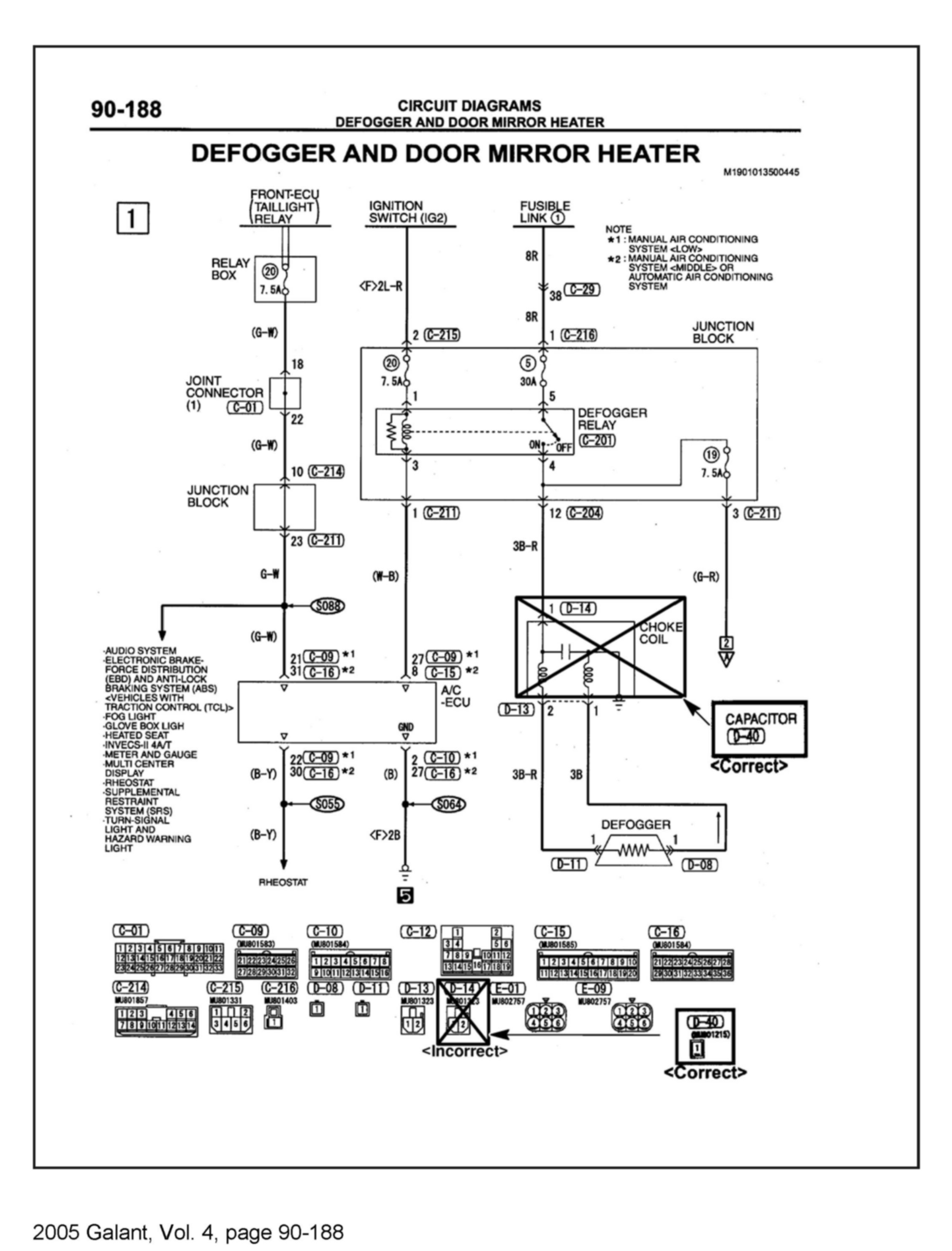

2005 Galant, Volume 4, pages 55A-158 thru -161; 55A-166 thru -169; 55A-229 thru -232; 55A-238 thru -241; page 90-188
