Emissions - Vacuum Diagram Revision
No: TSB-04-17-001DATE: July, 2004
MODEL: 2004 Galant 2.4L
SUBJECT:
CORRECTED VACUUM HOSE
DIAGRAMS - SERVICE
MANUAL REVISION
TSB Revision: TSB-04-17-001
PURPOSE
This bulletin contains corrected vacuum hose routing and vacuum circuit diagram information for the emissions control systems for the 2.4L equipped 2004 model year Galant.
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.
AFFECTED VEHICLES
2004 Galant equipped with the 2.4L, 4-cylinder MIVEC engine
AFFECTED SERVICE MANUAL
2004 Galant Service Manual, Volume 2, Pages 17-79 & 17-81
SERVICE MANUAL REVISIONS
2004 Galant, Volume 2, Page 17-79

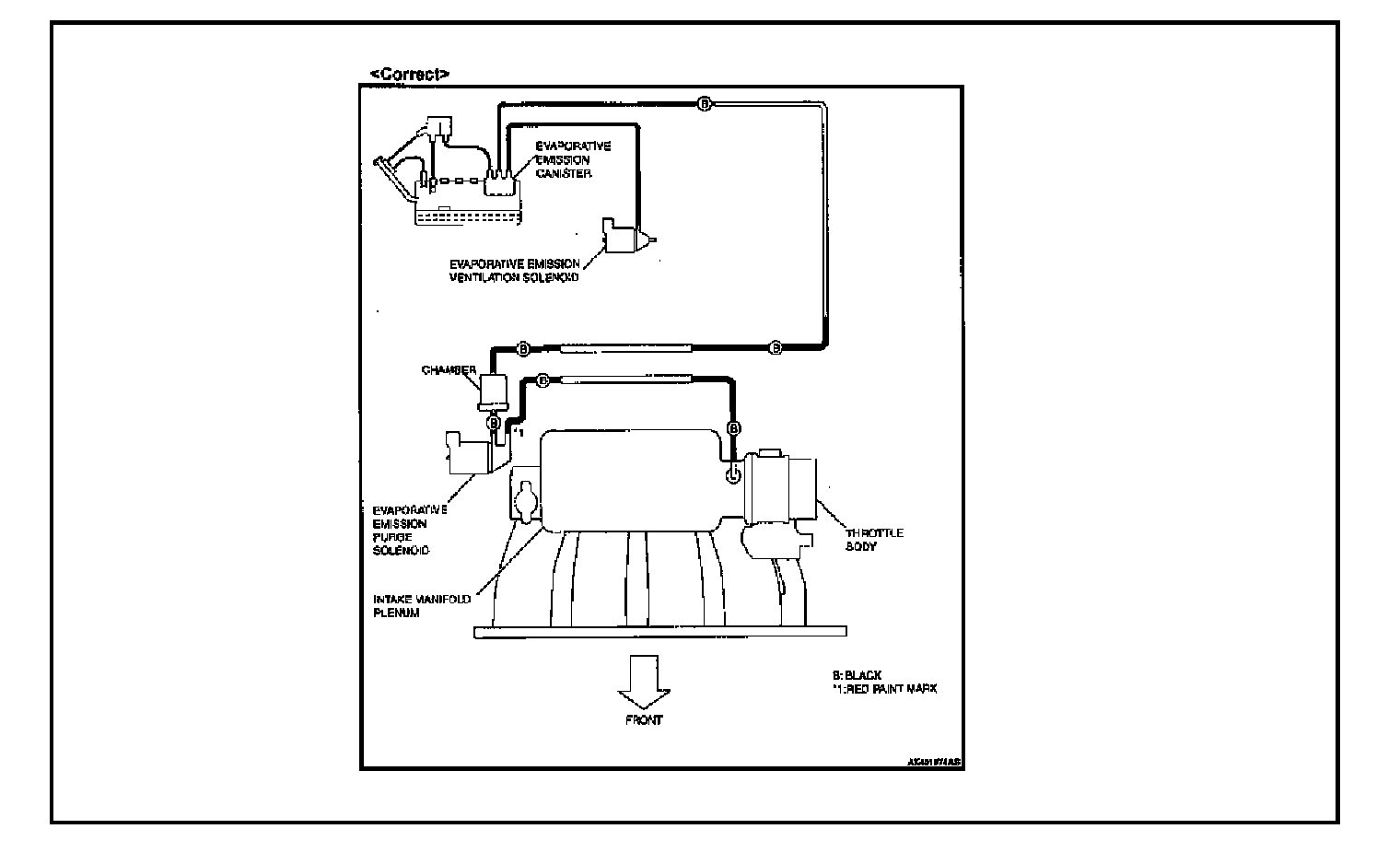

Replace the original vacuum hose routing diagram for the 2.4L equipped vehicle with the new diagram shown.
2004 Galant, Volume 2, Page 17-81

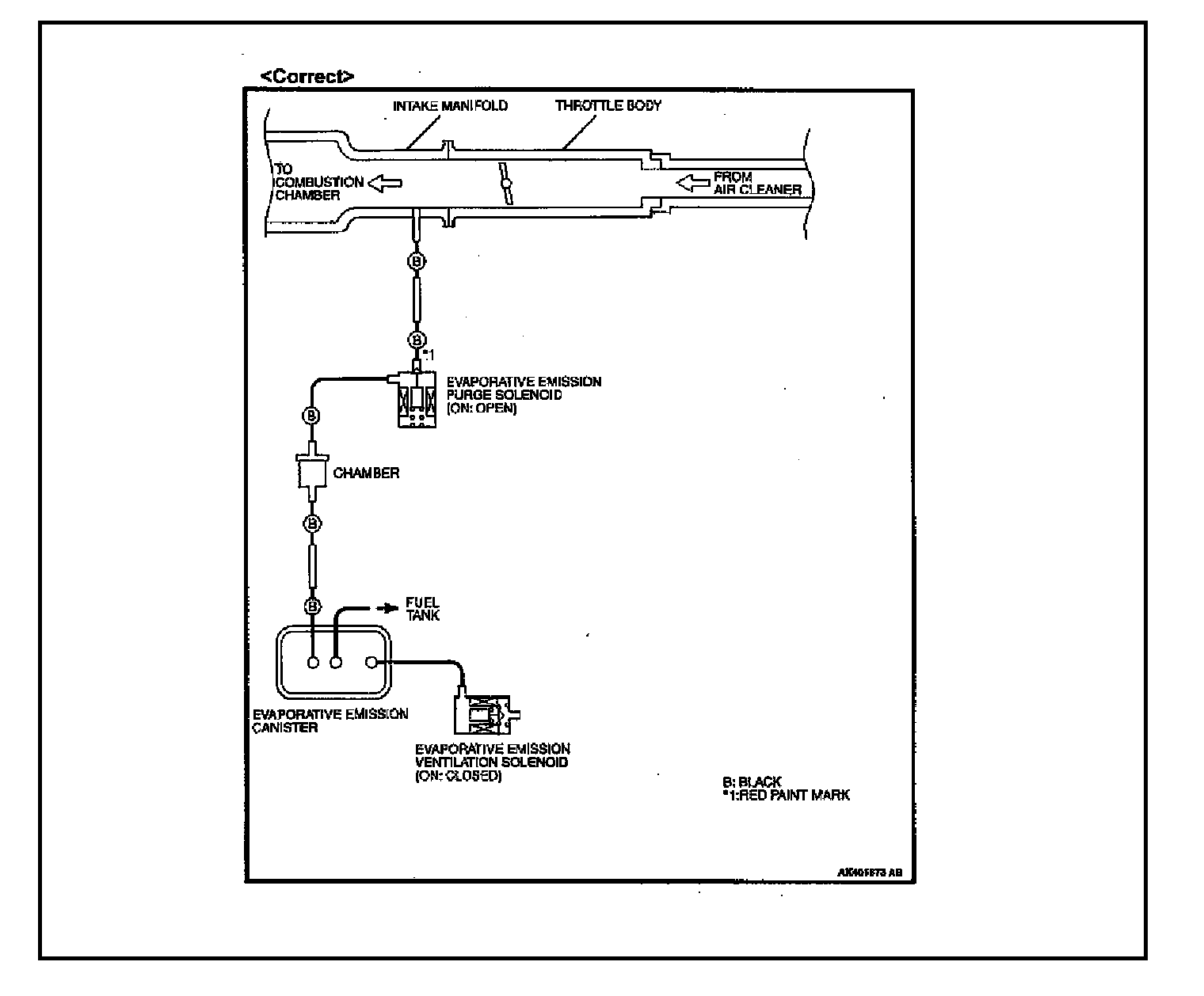

Replace the original vacuum circuit diagram with the new diagram shown.
