Engine/Engine Controls - Service Manual Revision
No.: TSB-04-11-004DATE: October, 2004
MODEL:
2004 Galant 2.4L
SUBJECT:
VALVE CLEARANCE INFORMATION STANDARDIZATION - SERVICE MANUAL REVISION
PURPOSE
This bulletin contains the following revised information for standardization of valve clearance:
^ Valve timing specifications
^ Valve clearance specifications
^ Camshaft identification information
^ Camshaft installation procedure
^ PCM identification information
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.
As noted in the revised service manual pages shown, the new valve clearance adjustment specifications for this engine are as shown.
AFFECTED VEHICLES
2004 Galant equipped with 4G69 2.4L MIVEC engine
AFFECTED MANUALS
2004 Galant Technical Information Manual, page 11A-2
2004 Galant Service Manual, Volume 1, pages 00-42; 11A-2, 11A-66; 11B-22, 30, 31, 32, 69, 70; 13A-1122
SERVICE MANUAL REVISIONS
2004 Galant Technical Information Manual, page 11A-2. Correct the MAJOR SPECIFICATIONS table as shown.
2004 Galant Service Manual, Volume 1, page 00-42. Correct the valve clearance standard value as shown.
2004 Galant Service Manual, Volume 1, page 11A-2. Correct the valve timing specifications as shown.
2004 Galant Service Manual, Volume 1, page 11A-11. Correct the valve clearance service specifications as shown.
2004 Galant Service Manual Volume 1, page 11A-66. Correct the valve clearance service specifications as shown.
2004 Galant Service Manual, Volume 1, page 11B-22. Correct the valve clearance standard value as shown.
2004 Galant Service Manual, Volume 1, page 11B-30. Correct the removal service point indicators as shown.
2004 Galant Service Manual, Volume 1, page 11B-31. Correct the camshaft installation procedures and installation service point indicators as shown.
2004 Galant Service Manual, Volume 1, page 11B-32. Correct the camshaft oil seal installation procedures as shown.
2004 Galant Service Manual, Volume 1, page 11B-69. Correct the valve timing specifications as shown.
2004 Galant Service Manual, Volume 1, page 11B-70. Correct the valve clearance service specifications as shown.

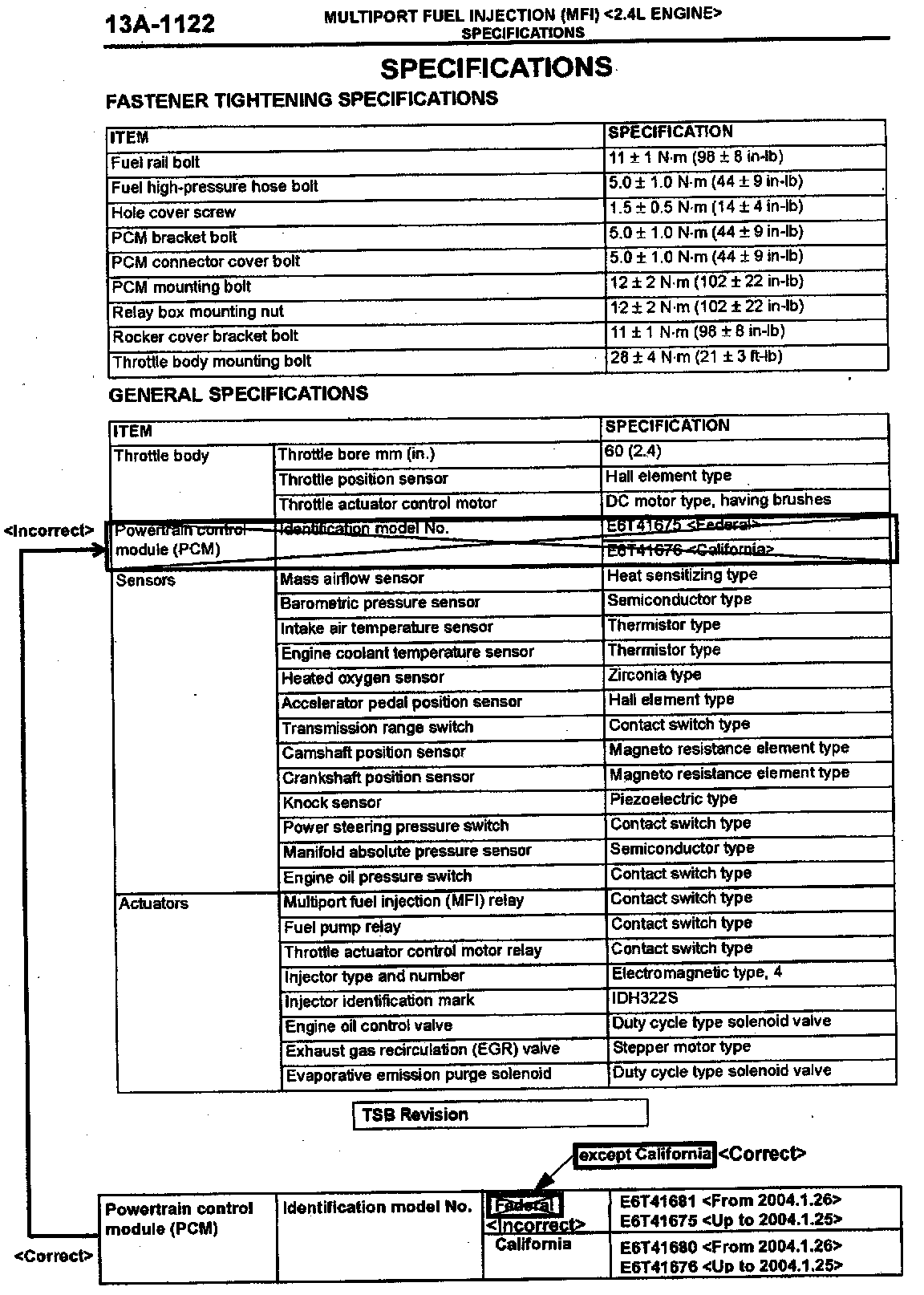

2004 Galant Service Manual, Volume 1, page 13A-1122. Correct the PCM identification information as shown.
