Exhaust System - Front Exhaust Pipe Torque revision

No.: TSB-04-15-001
DATE: October, 2004
MODEL: 2004-05 Galant

SUBJECT:
EXHAUST PIPE INSTALLATION
- SERVICE MANUAL REVISION

PURPOSE

The torque specification for the front exhaust pipe on 2.4L engine models has been changed. This bulletin contains the new torque specification.

Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual pages.

AFFECTED VEHICLES

2004-05 Galant models equipped with 2.4L engine

AFFECTED SERVICE MANUALS

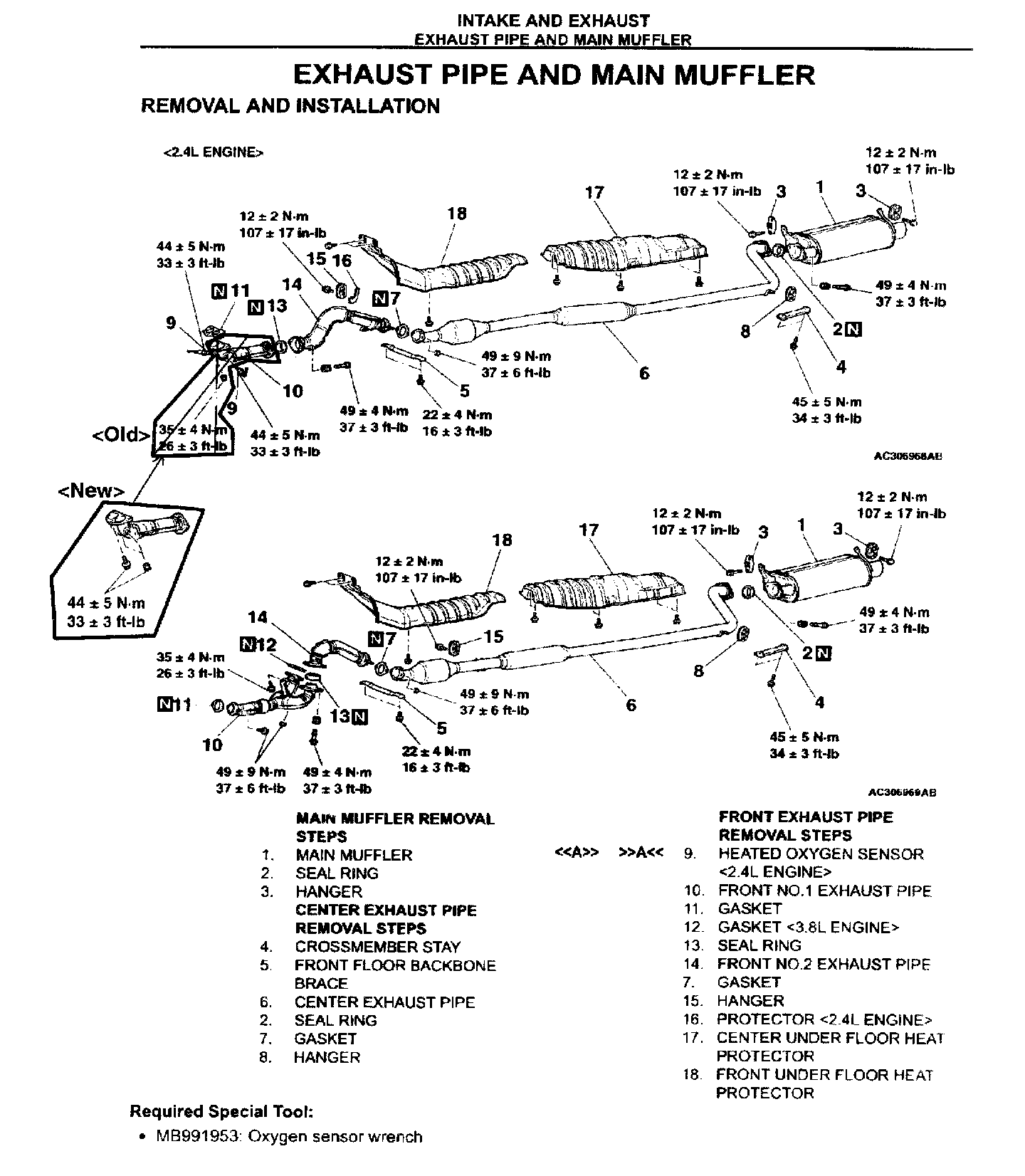

2004 Galant, Volume 2, page 15-21 and 15-23
2005 Galant, Volume 2, page 15-20 and 15-22





2004 Galant, Volume 2, page 15-21; 2005 Galant, Volume 2, page 15-20





2004 Galant, Volume 2, page 15-23; 2005 Galant, Volume 2, page 15-22
