Ignition - Ignition Key Ring Antenna Manual Revisions

No.: TSB-04-54-007

DATE: November, 2004

MODEL:
See below

SUBJECT:
IGNITION KEY RING ANTENNA INSPECTION - SERVICE MANUAL REVISION

PURPOSE

The inspection procedures for the ignition key ring antenna are incorrect in the affected service manual pages. This bulletin contains corrected procedures.

Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual pages.

AFFECTED VEHICLES
2004-05 Galant and Endeavor models

AFFECTED SERVICE MANUALS
2004 Galant, Volume 3, page 54A-16
2005 Galant, Volume 3, page 54A-14
2004 Endeavor, Volume 2, pages 54A-20 and 54A-21
2005 Endeavor, Volume 2, pages 54A-16 and 54A-17

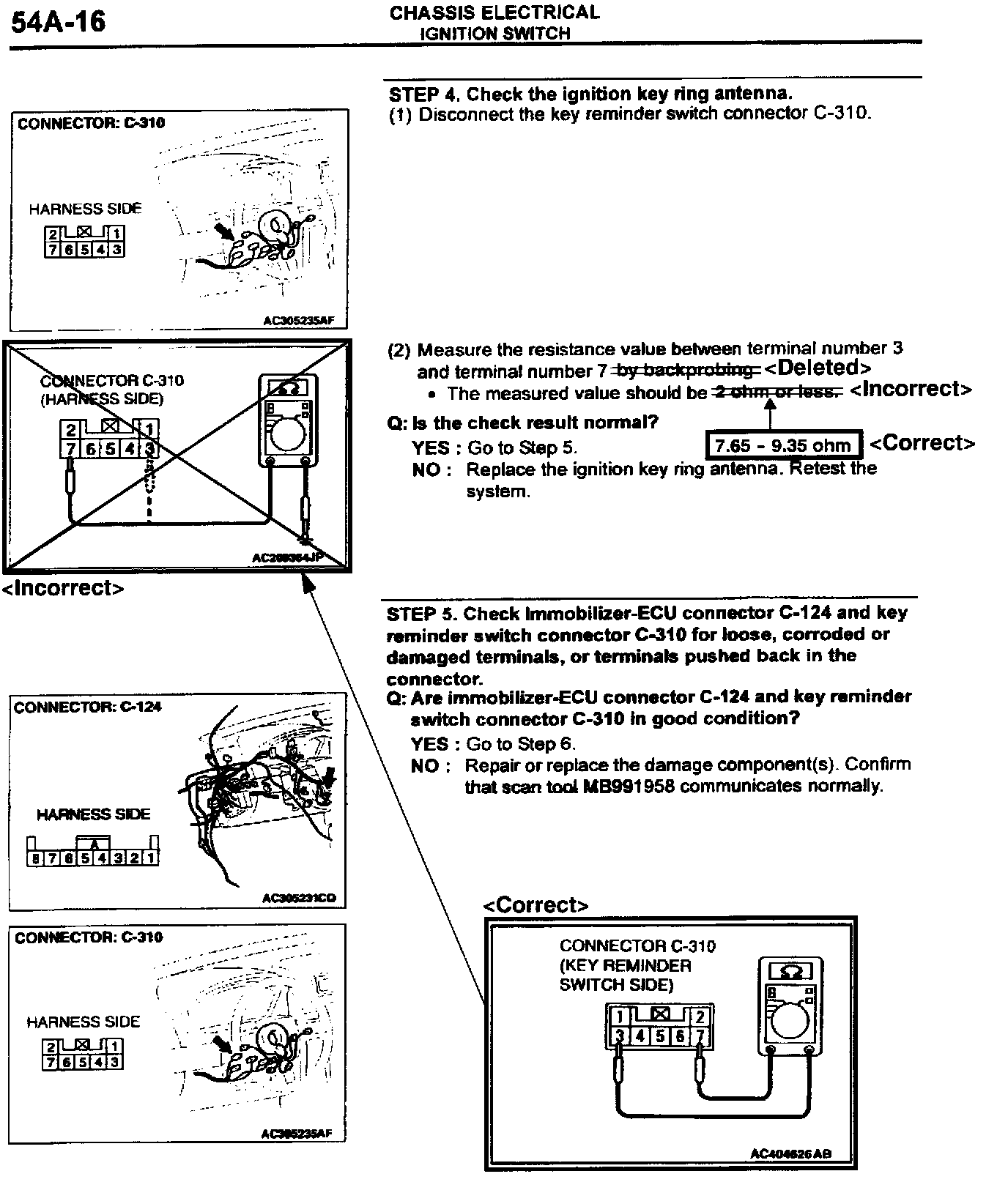

2004 Galant, Volume 3, page 54A-16

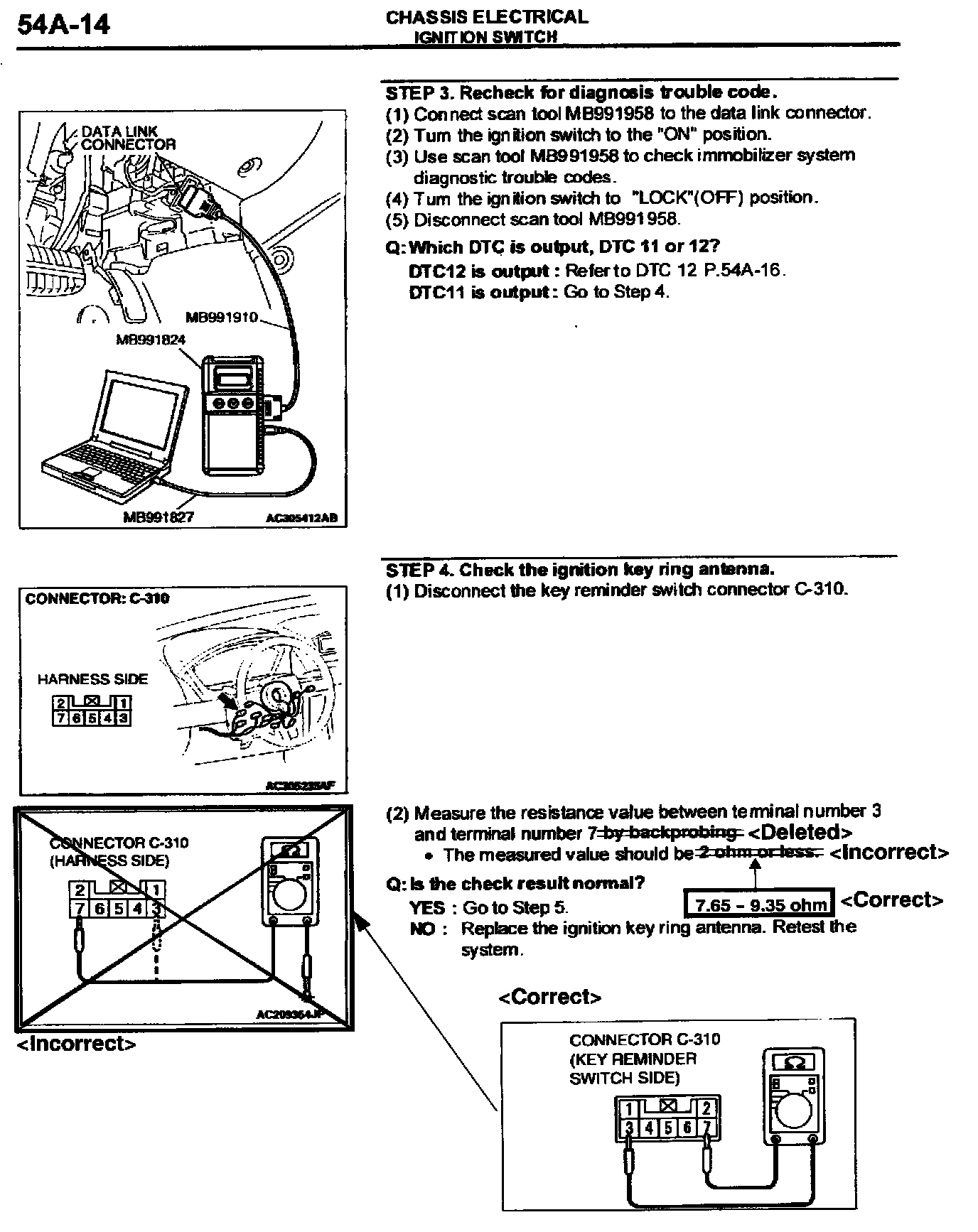

2005 Galant, Volume 3, page 54A-14





2004 Endeavor, Volume 2, page 54A-20





2004 Endeavor, Volume 2, page 54A-21

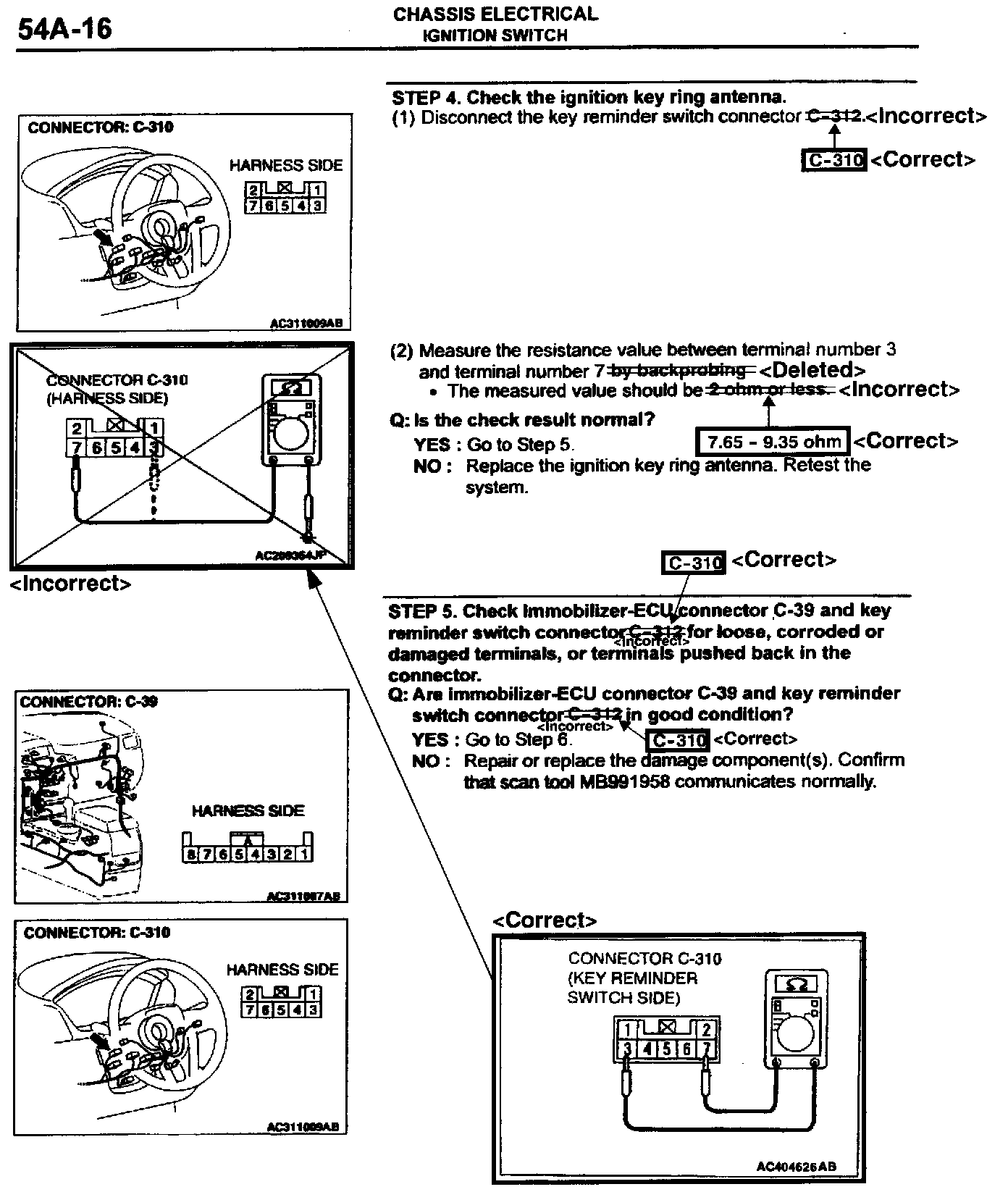

2005 Endeavor, Volume 2, page 54A-16

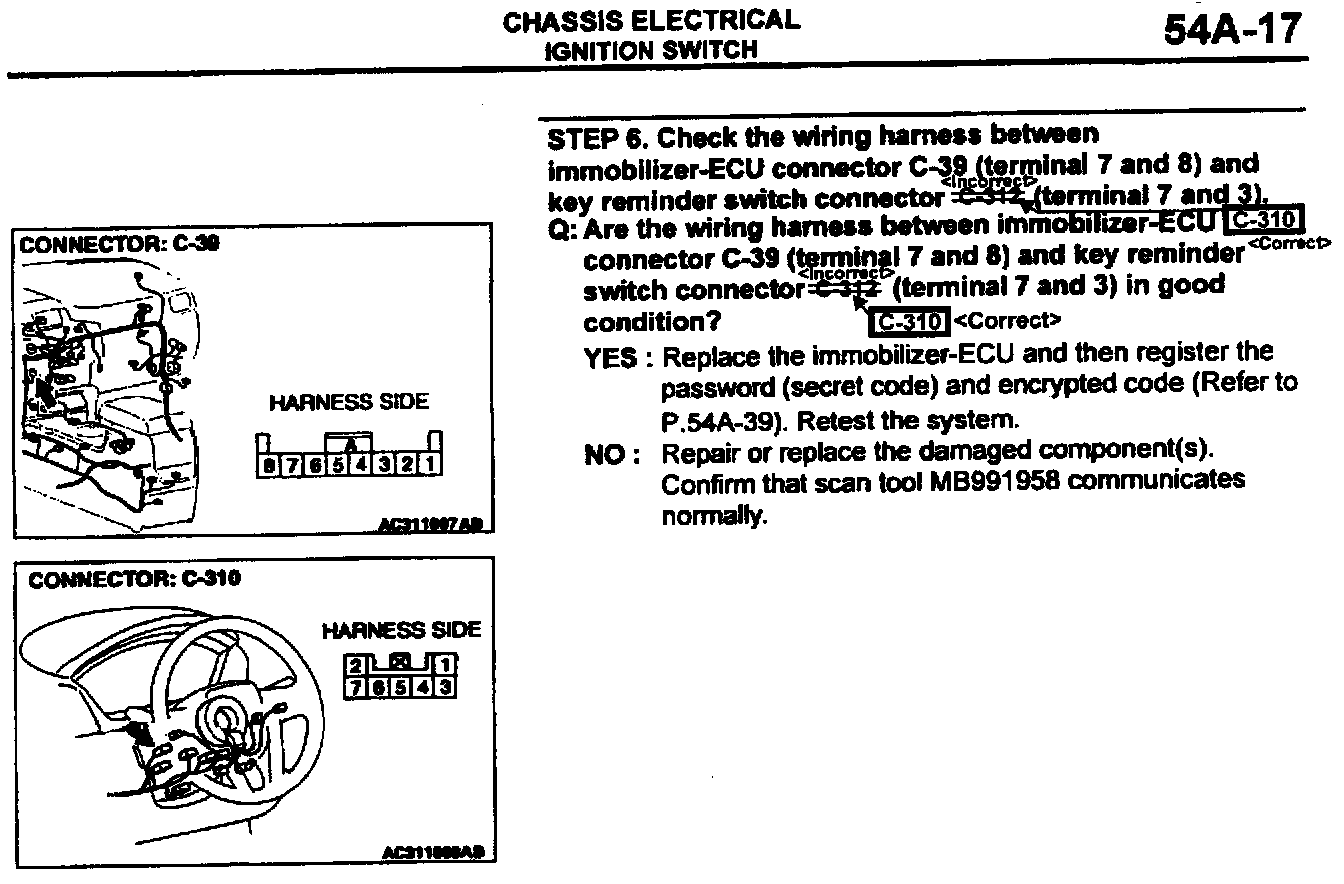

2005 Endeavor, Volume 2, page 54A-17
