Instruments - Door Mirror Service Procedures Revision
No: TSB-05-51-001DATE: January, 2005
MODEL: 2004-05 Galant
SUBJECT:
DOOR MIRROR SERVICE PROCEDURES
- SERVICE MANUAL REVISION
PURPOSE

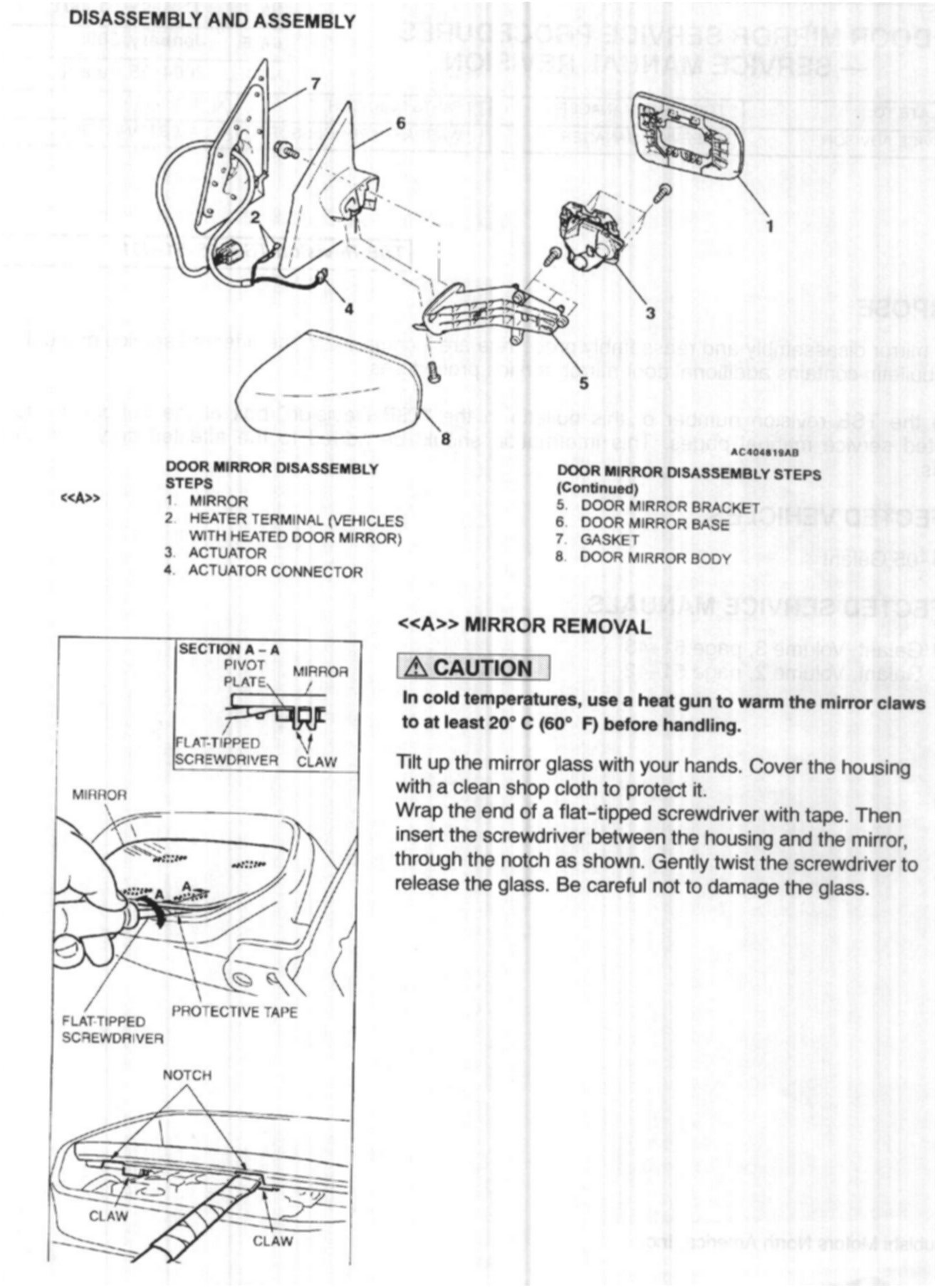

Door mirror disassembly and reassembly procedure are incomplete in the affected service manual. This bulletin contains additional door mirror service procedures.
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual pages. This information should be added to the affected service manual pages.
AFFECTED VEHICLES
2004-05 Galant
AFFECTED SERVICE MANUALS
2004 Galant, Volume 3, page 51-43
2005 Galant, Volume 2, page 51-42
