Interior - Overhead Console Service Parts Installation
NO: TSB-04-54-004May, 2004
MODEL: See below
SUBJECT
OVERHEAD CONSOLE SERVICE PARTS
PURPOSE

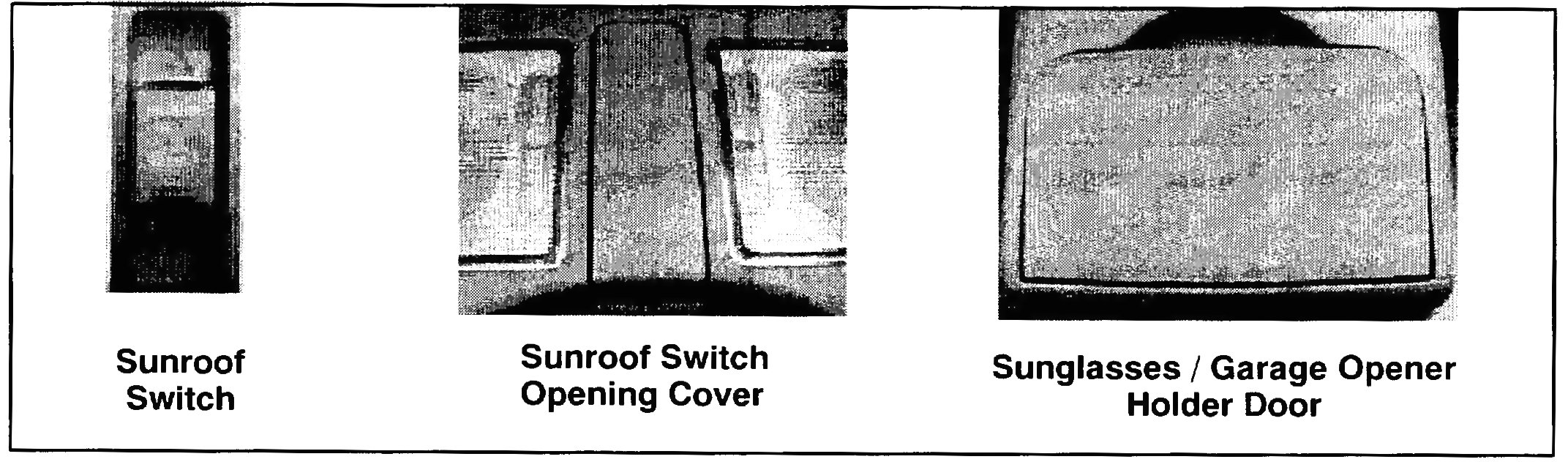

Service parts are now available for the overhead console components.
AFFECTED VEHICLES
2004 Endeavor and Galant
PROCEDURE
Refer to the appropriate service manual for sunroof switch and opening cover installation.
To install the sunglasses / garage door opener holder door:
1. Open the door to its fully open position.
2. Push the lower left portion (pivot pin area) of the door inward. Slide the pivot pin out of the pivot hole, and remove the door from the assembly.
3. To install the new door, slide the pivot pin into the pivot hole.
PARTS INFORMATION
Use the Genuine Mitsubishi Parts listed below.

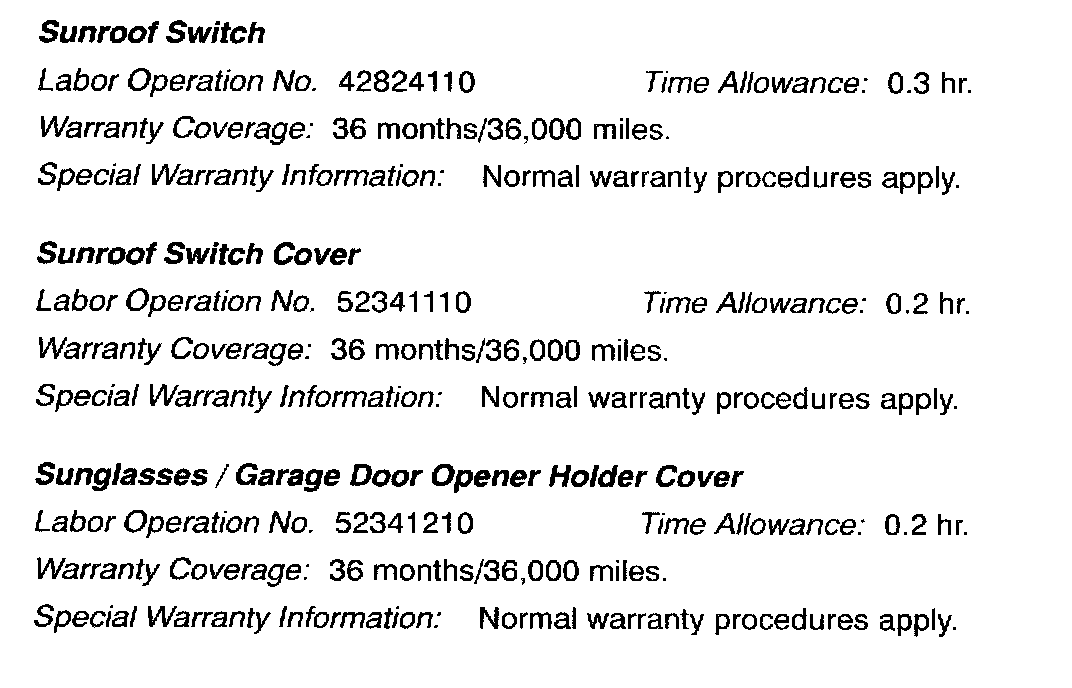

WARRANTY INFORMATION
