Recall - Incorrect Underhood Vacuum Hose Routing Label: Overview
No: SC-04-001DATE: June, 2004
MODEL: 2004 Galant 2.4L
SUBJECT:
VACUUM HOSE ROUTING DIAGRAM LABEL
(2004 GALANT) - SERVICE CAMPAIGN
PURPOSE
The Vacuum Hose Routing Diagram label on certain 2004 Galant 2.4L MIVEC equipped vehicles is incorrect and must be changed.

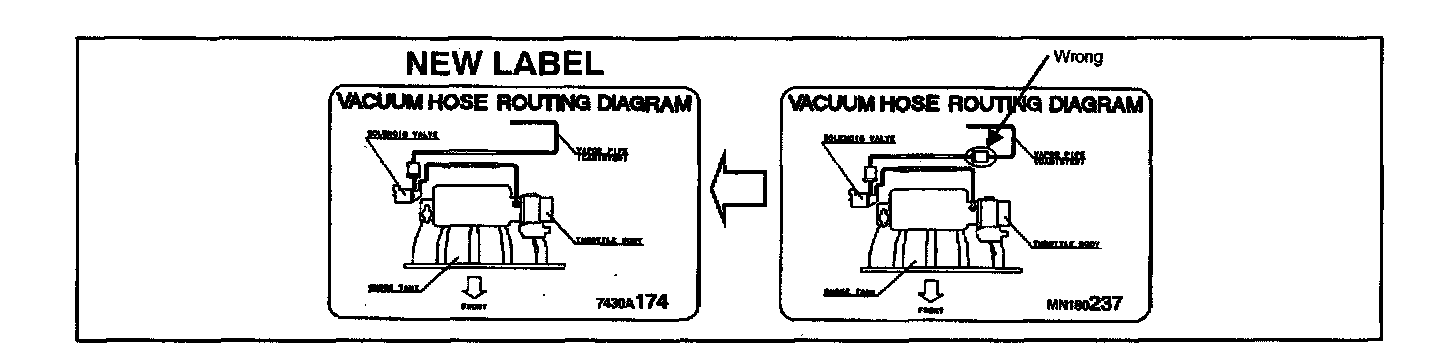

The original label shows a component which is not actually specified for the vehicle. The engine vacuum hose routing diagram label is often used during in-use Inspection and Maintenance (I/M) testing to verify proper emissions related components. As a result, incorrect vacuum hose routing diagram label information may cause the vehicle to fail an emissions test. A letter, with label enclosed, is being sent to all owners of affected vehicles known to MMNA, instructing them to install the new Vacuum Hose Routing Diagram label themselves. A copy of the customer notification letter is included with this bulletin. Vehicle owners who do not want to install the label are advised to ask their Mitsubishi Motors retailer to install the label at no charge.
Dealers with unsold affected vehicles in inventory must install a new label on each of these vehicles. Dealers who have unsold affected vehicles in inventory will receive with this bulletin a list of these vehicles and a supply of labels for these unsold vehicles. DO NOT order the labels from MMNA Parts. If there is no list included with this bulletin, records indicate that your dealership does not have any affected vehicles in inventory. If any listed vehicle has been sold, the dealer should contact the purchaser of that vehicle to arrange for installation of the new label.
AFFECTED VEHICLES
This Service Campaign involves the following vehicles built before April 27, 2004 2004 Galant equipped with the 4-cylinder 2.4L MIVEC engine
LABEL INSTALLATION

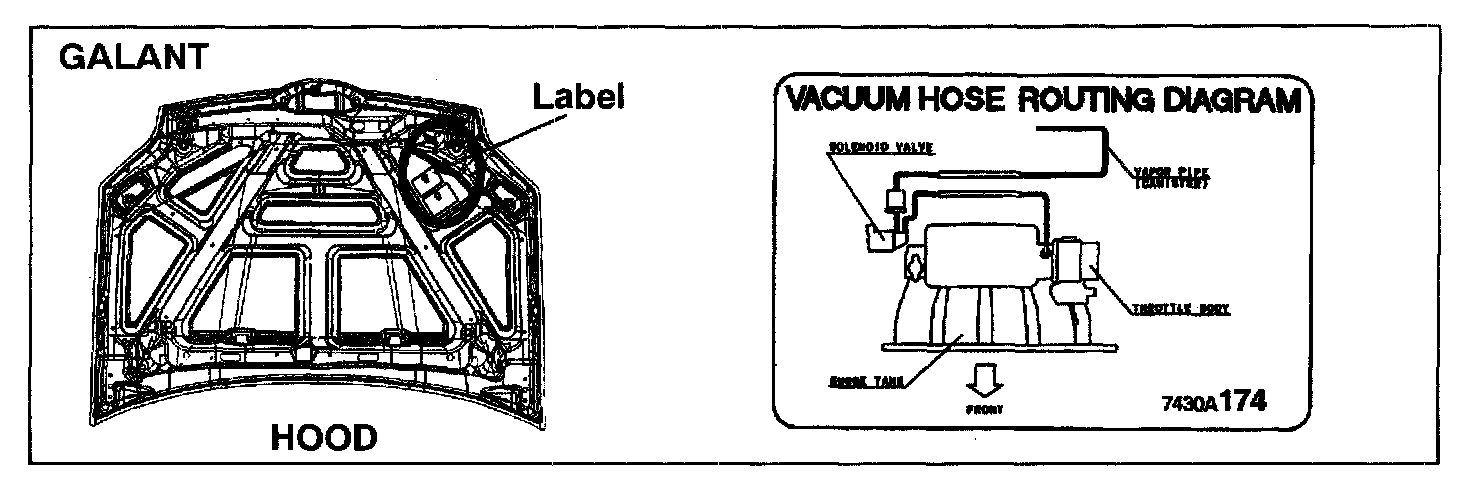

1. Open the hood, locate the Vacuum Hose Routing Diagram label, and inspect the part number listed on the label.
a. If the part number is NOT 7430A174, proceed with step 2 and install the new label.
b. If the part number is 7430A174, the label is correct and does not require replacement.
2. Clean the old label thoroughly of all dirt and residue.
3. Carefully peel the backing strip from the new label and apply over the existing label.
4. Close the hood.
PARTS INFORMATION
All customers will receive one label (P/N 7430A174) along with their notification letter. Dealers who have unsold affected vehicles in inventory will receive a quantity of labels with this bulletin to install on these unsold vehicles. DO NOT order the labels from MMNA Parts.
If a customer misplaces or loses the label or if additional labels are needed for unsold inventory vehicles, contact MMNA Technical Compliance at 714-372-6362 to request more labels.
WARRANTY INFORMATION
NONE - Do not submit Recall or Warranty claims for this campaign.
