Information Bus

DTC's relating to CAN-BUS (U0121-U1110):

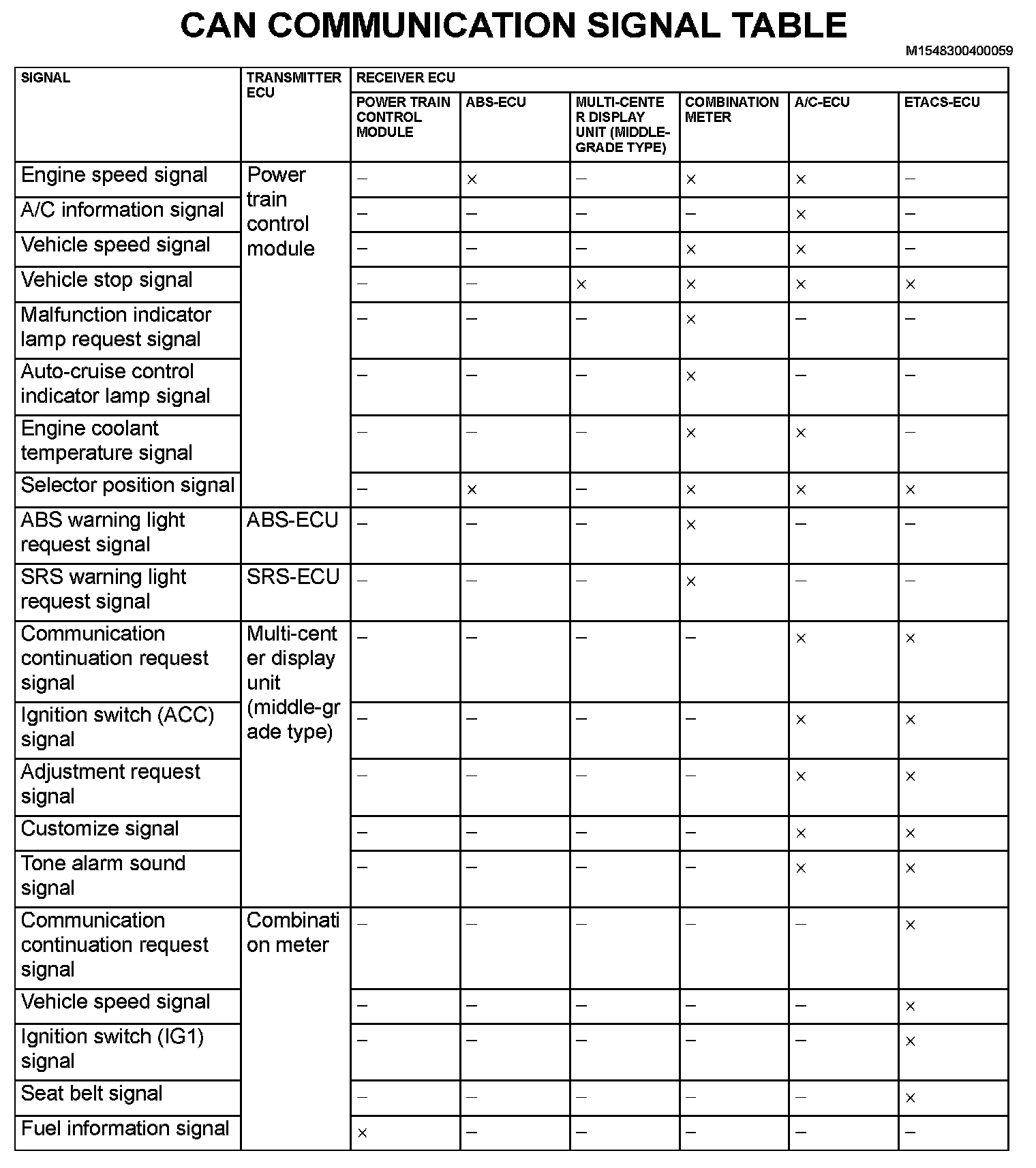

CAN Communication Signal Table Part 1:



CAN Communication Signal Table Part 2:



Part 1:



Part 2:
