Scan Tool Testing and Procedures

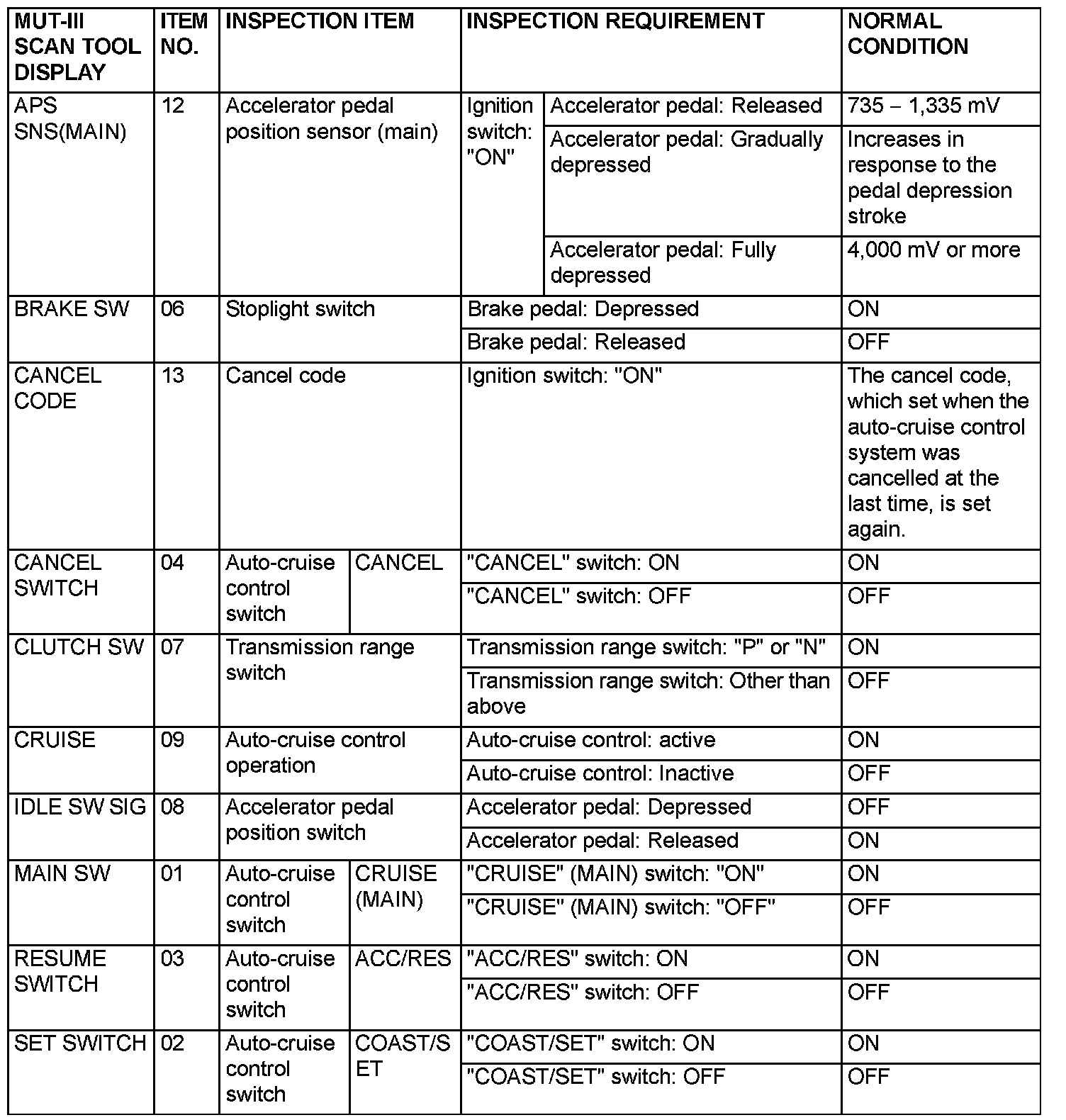

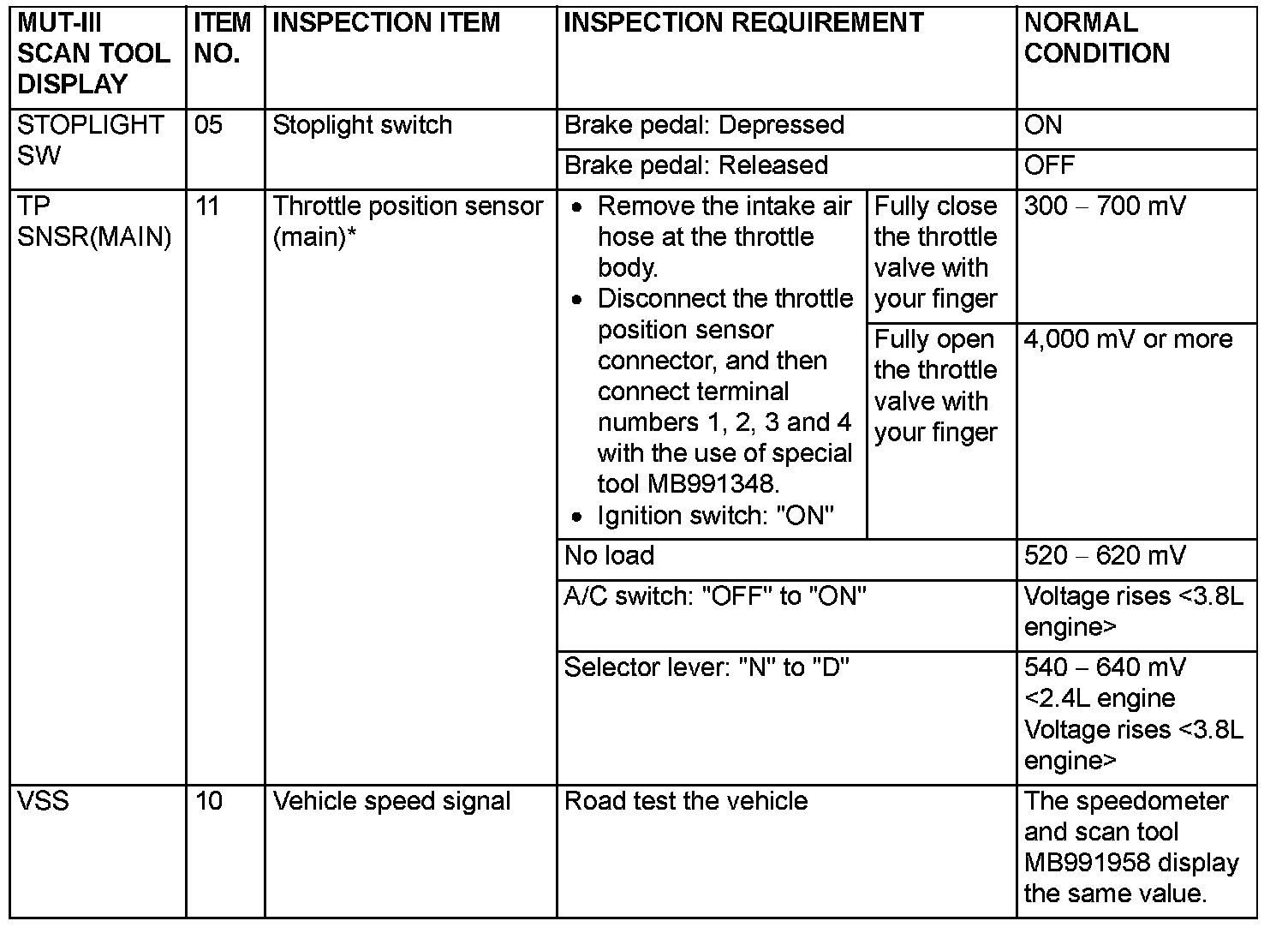

DATA LIST REFERENCE TABLE

Part 1:

Part 2:

CAUTION:
- When shifting the selector lever to "D" range, apply the brakes should be applied so that the vehicle does not move forward.
- Driving tests always need two persons: one driver and one observer.

NOTE: *: After the inspection is completed, disconnect the throttle position sensor connector, and then delete the diagnostic trouble code using use of scan tool MB991958.
