Drive Belt: Adjustments

GENERATOR DRIVE BELT TENSION ADJUSTMENT




1. Loosen the tensioner pulley fixing nut.

2. With the tensioner pulley fixing nut temporarily tightened to 15 + 5 N.m (11 +/- ft-lb), set the belt tension or defection amount to the standard value using the adjusting bolt.

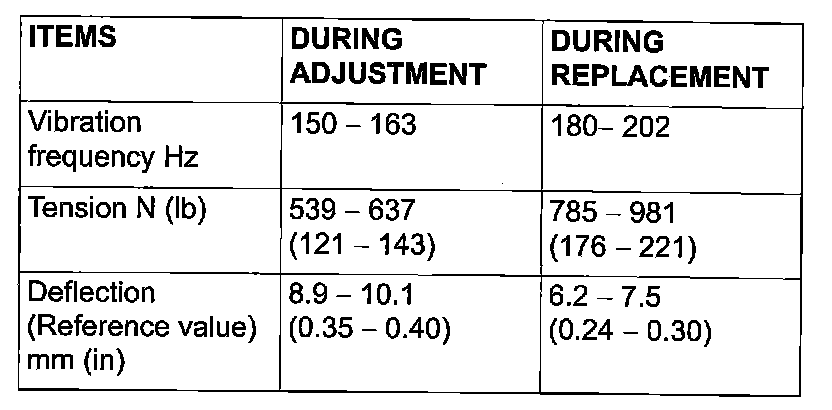

Standard value:





3. Tighten the tension pulley fixing nut.

Tightening torque: 49 +/- 10 Nm (36 f 7 ft-lb)
