Blower Motor: Service and Repair
BLOWER ASSEMBLY AND RESISTORBlower Assembly And Resistor:
REMOVAL AND INSTALLATION
REMOVAL SERVICE POINT
<> BLOWER MOTOR REMOVAL

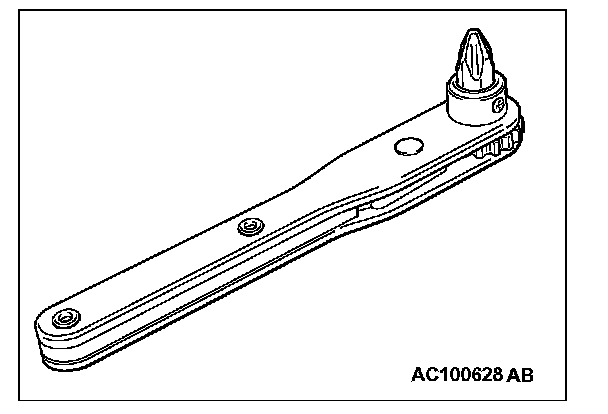

NOTE: A normal plate-type ratchet driver is recommended.

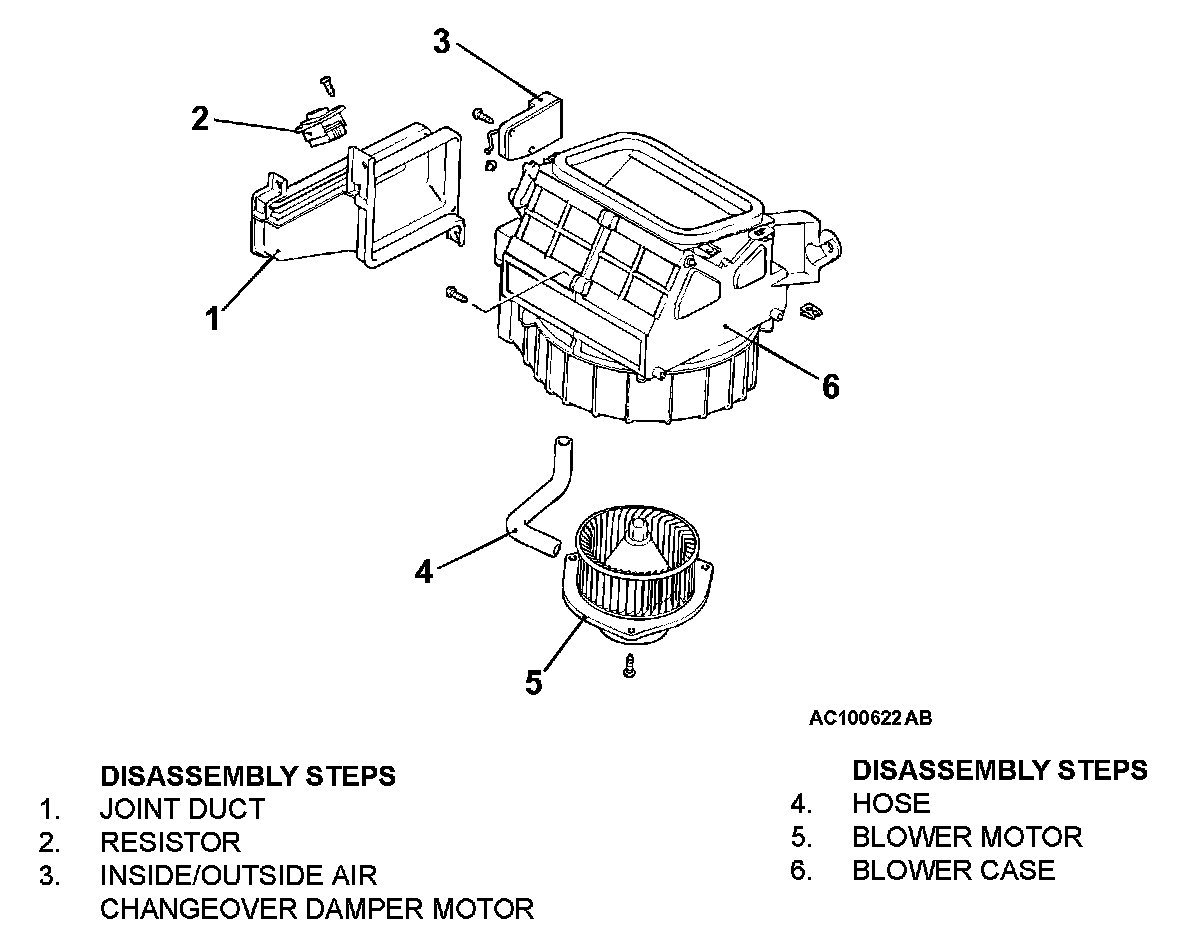

Blower Assembly:
DISASSEMBLY AND ASSEMBLY
