Locations
>>
Splice Locations
>>
S031-S056 -- Dash Panel
S031-S056 -- Dash Panel

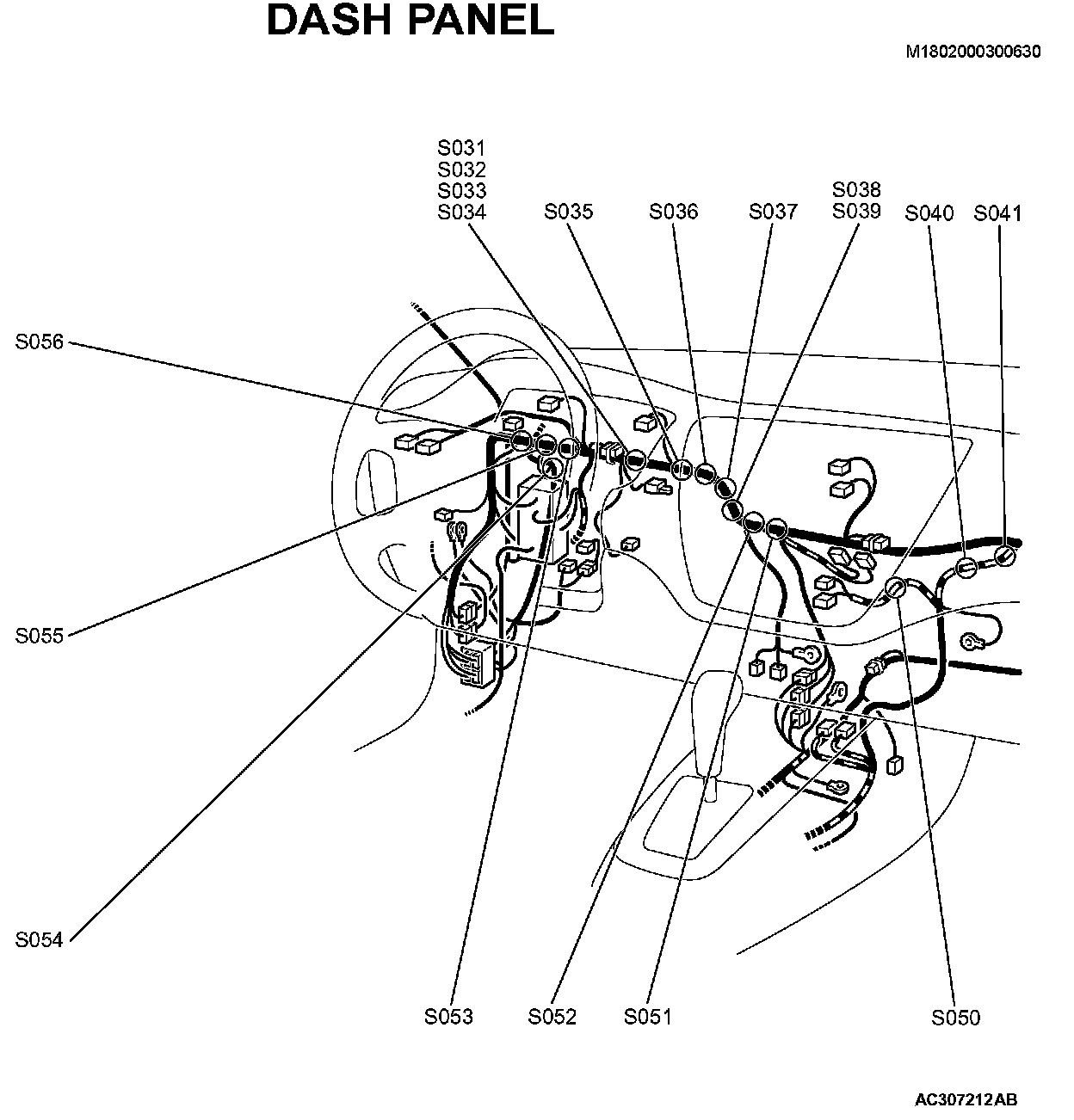

S031-S056 Dash Panel (Part 1):
S031-S056 Dash Panel (Part 2):
