Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
2004
>>
Lancer L4-2.4L SOHC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Application and ID
Fuse: Application and ID

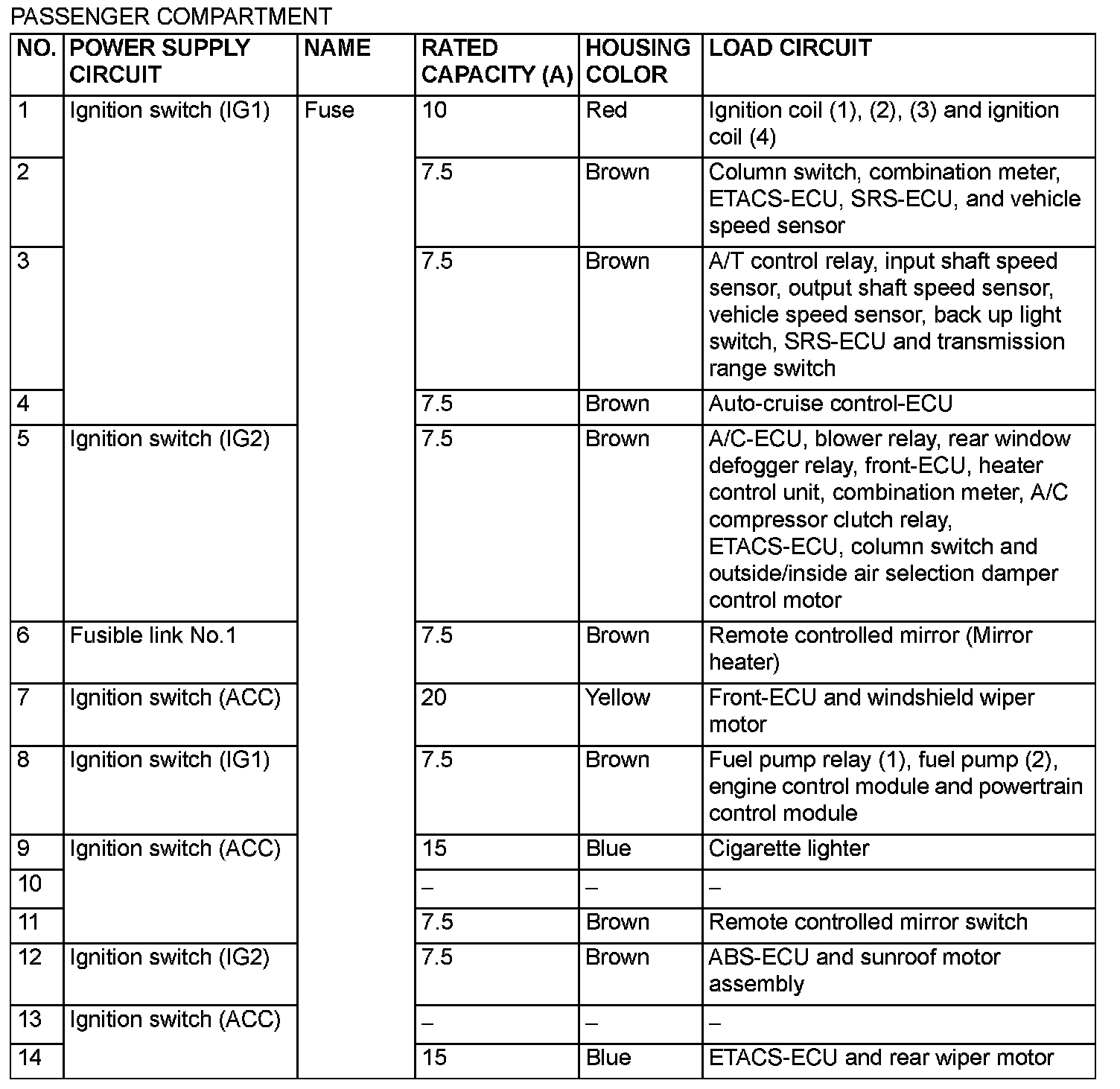

Application Table Part 1:

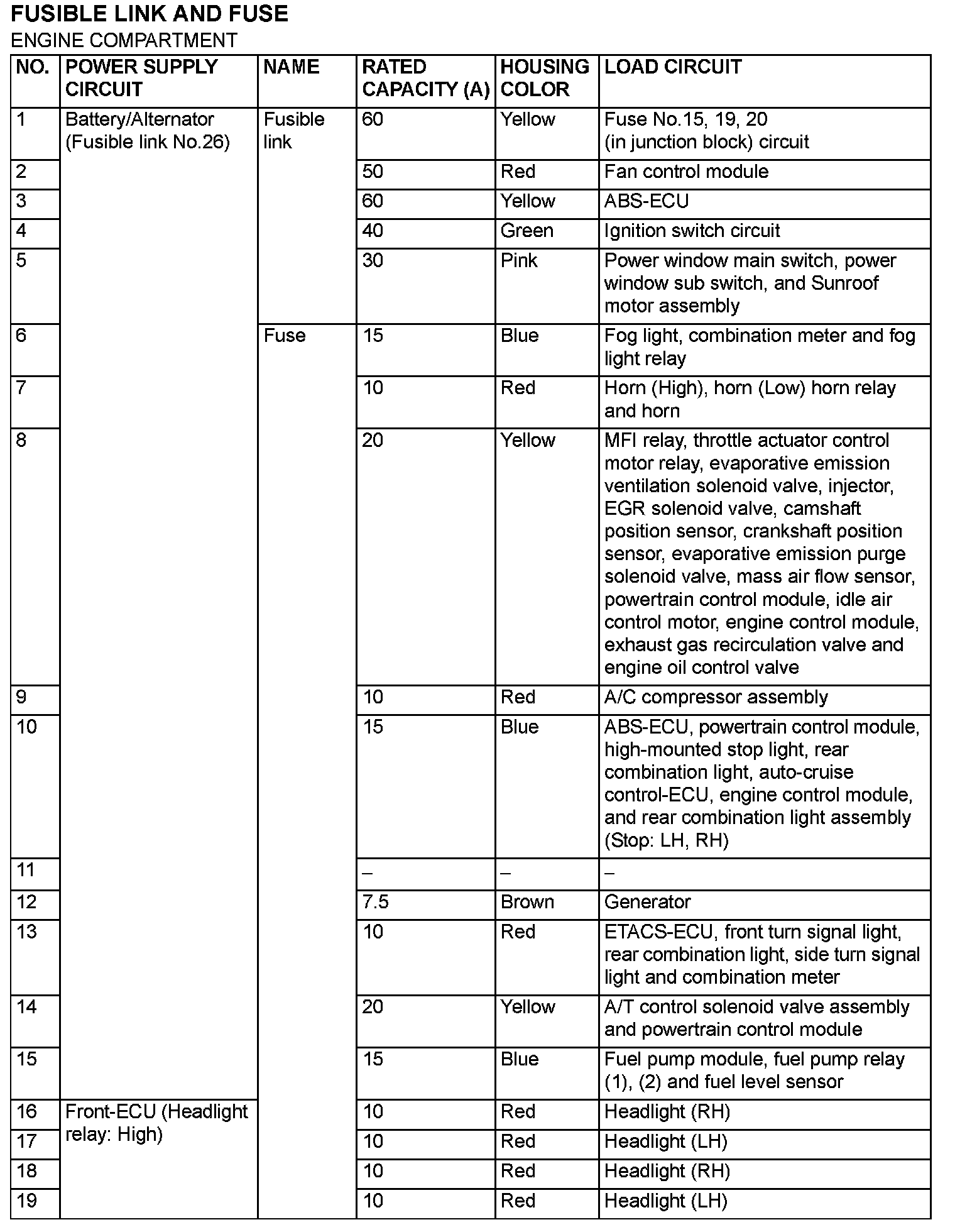

Application Table Part 2:

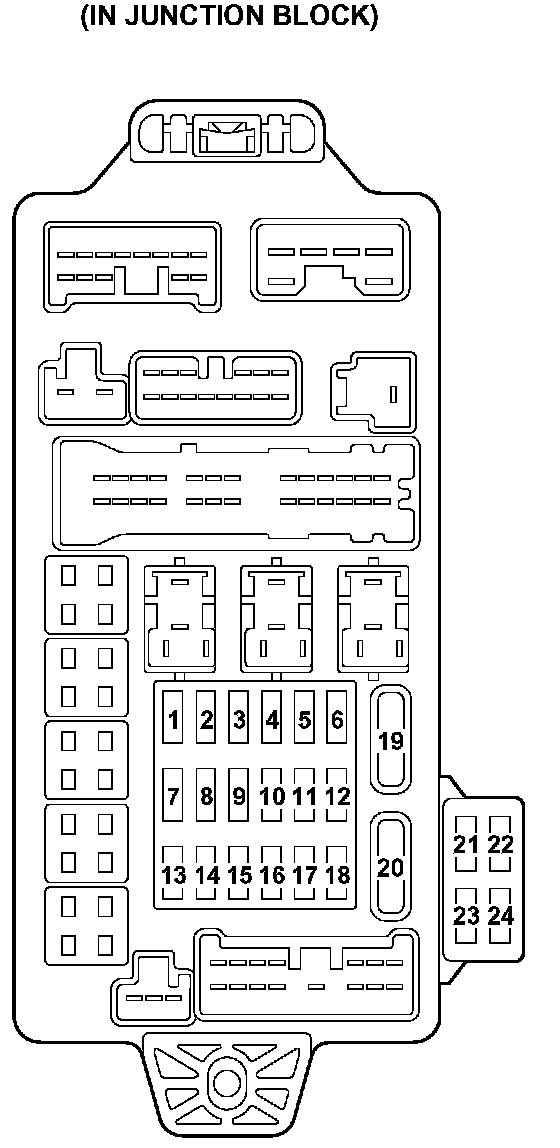

Location View:

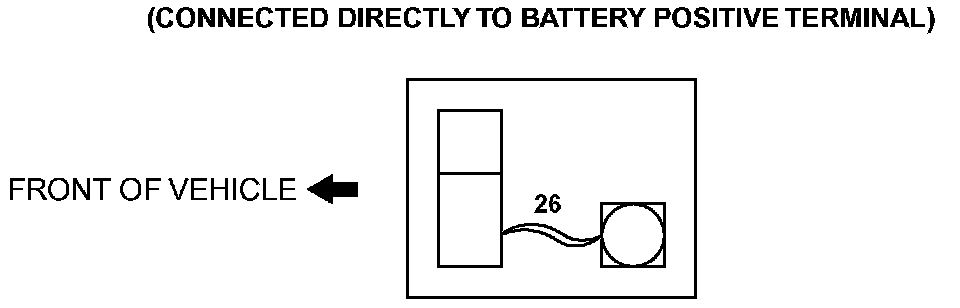

Location View:
Application Table Part 1:
Application Table Part 2:
Location View:
