Engine - Bolt Locations
SOURCE: Mitsubishi Tech Talk Article June 2004TITLE: ENGINE BOLT LOCATIONS
APPLIES TO: 2004 Galant, Lancer Ralliart, and Outlander with 2.4L MIVEC engine
SERVICE TIP:

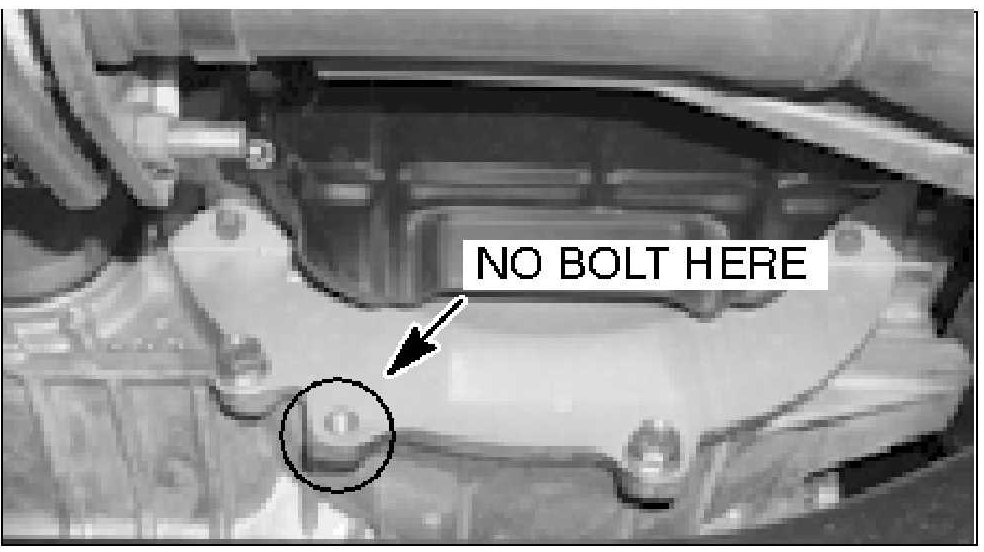

There is an empty bolt hole between the engine and transmission. This is the intended design. A fastener should not be installed at this location.
