DTC 84

Side-Airbag Module (LH) (Squib) System Fault 4 for Ignition Drive Circuit







DTC SET CONDITIONS

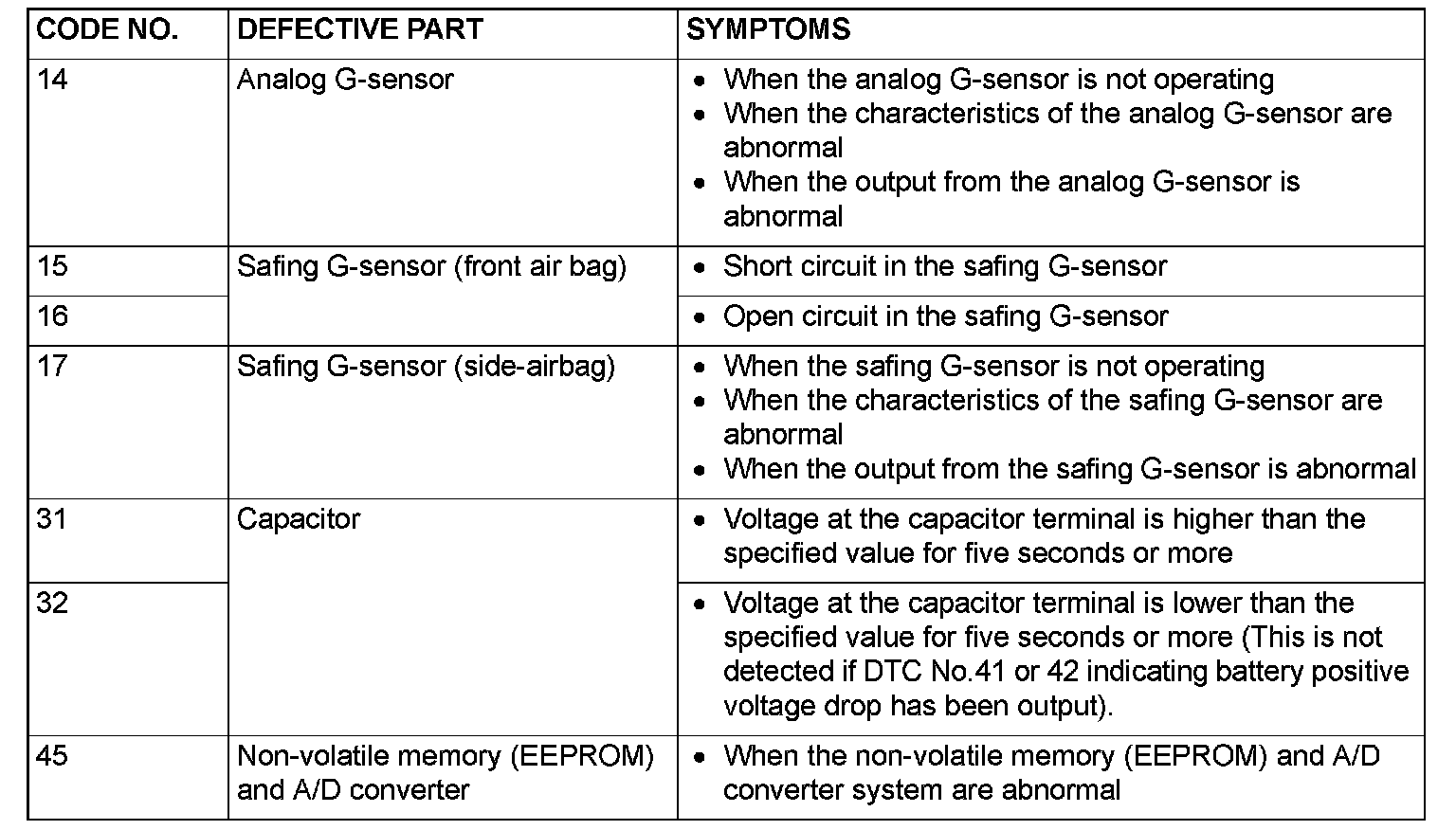

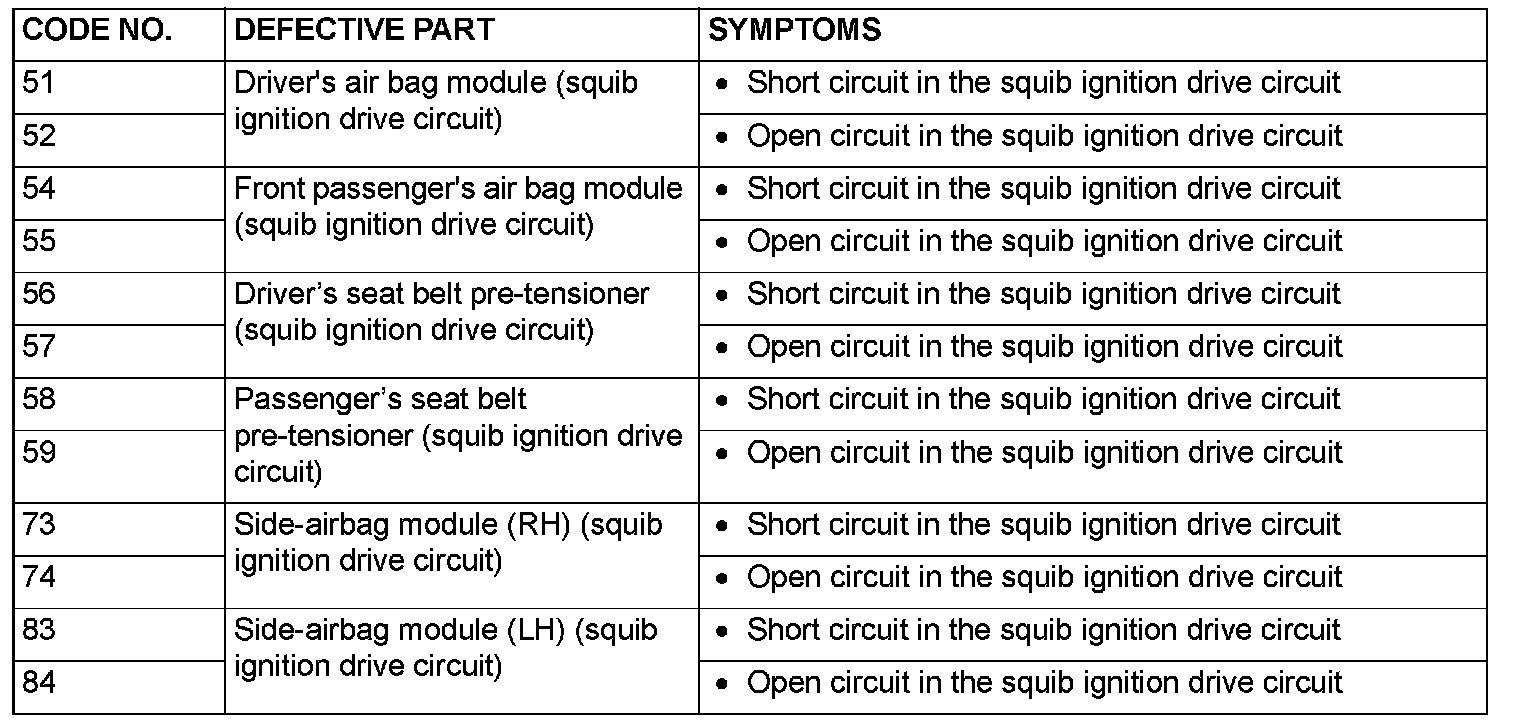

These DTC are set when a fault is detected in the SRS-ECU. The most likely causes for this code to be set are shown in the table.

TROUBLESHOOTING HINTS
Malfunction of the SRS-ECU

DIAGNOSIS
Replace the SRS-ECU.
