Body and Frame: Description and Operation

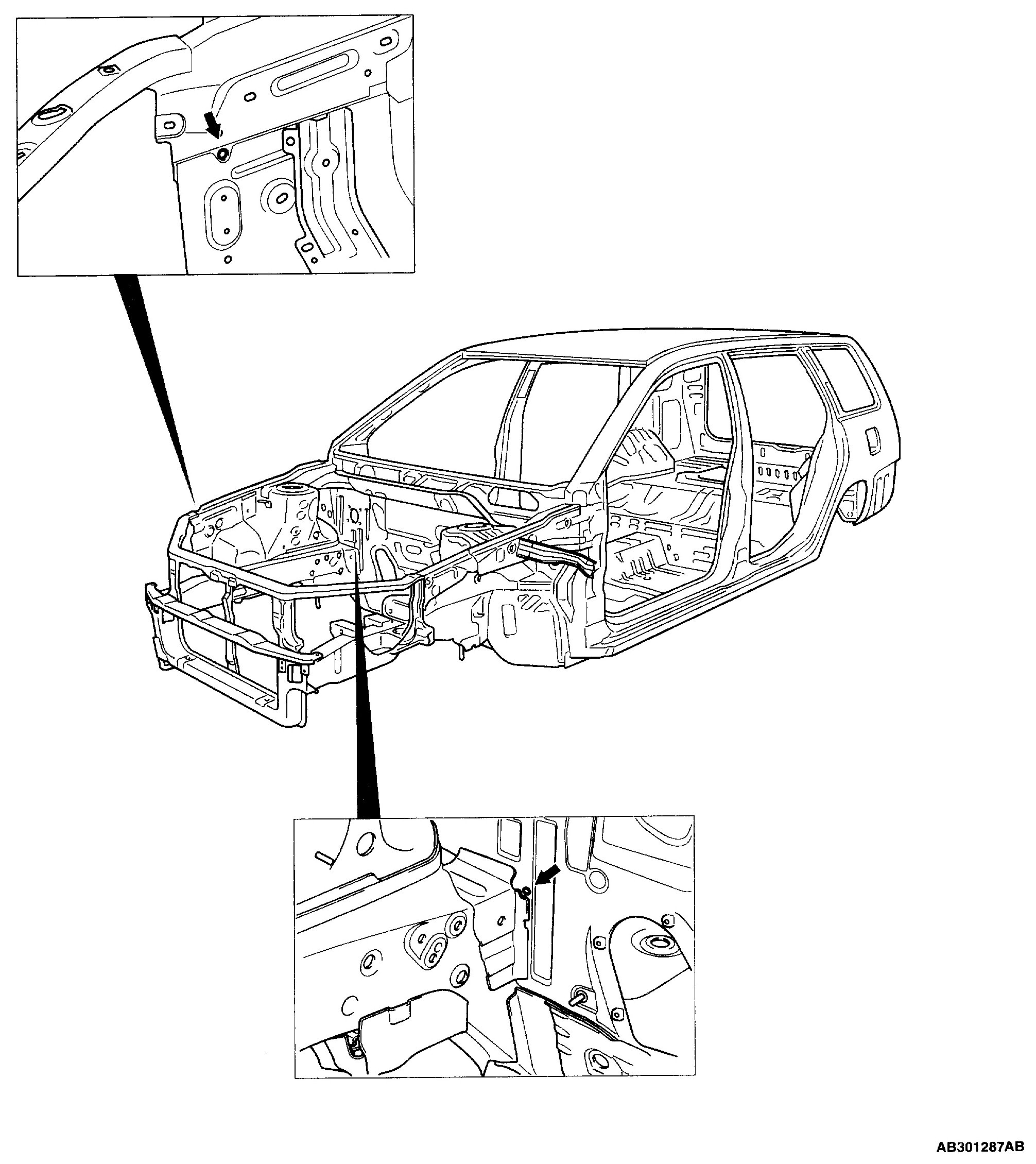

MAINTENANCE, SERVICEABILITYFENDER SHIELD
A positioning hole, marking and cut-out has been added on the front fender shield, front upper frame inner, front sidemember gusset rear and dash panel to improve assembling workability when replacing the panel.

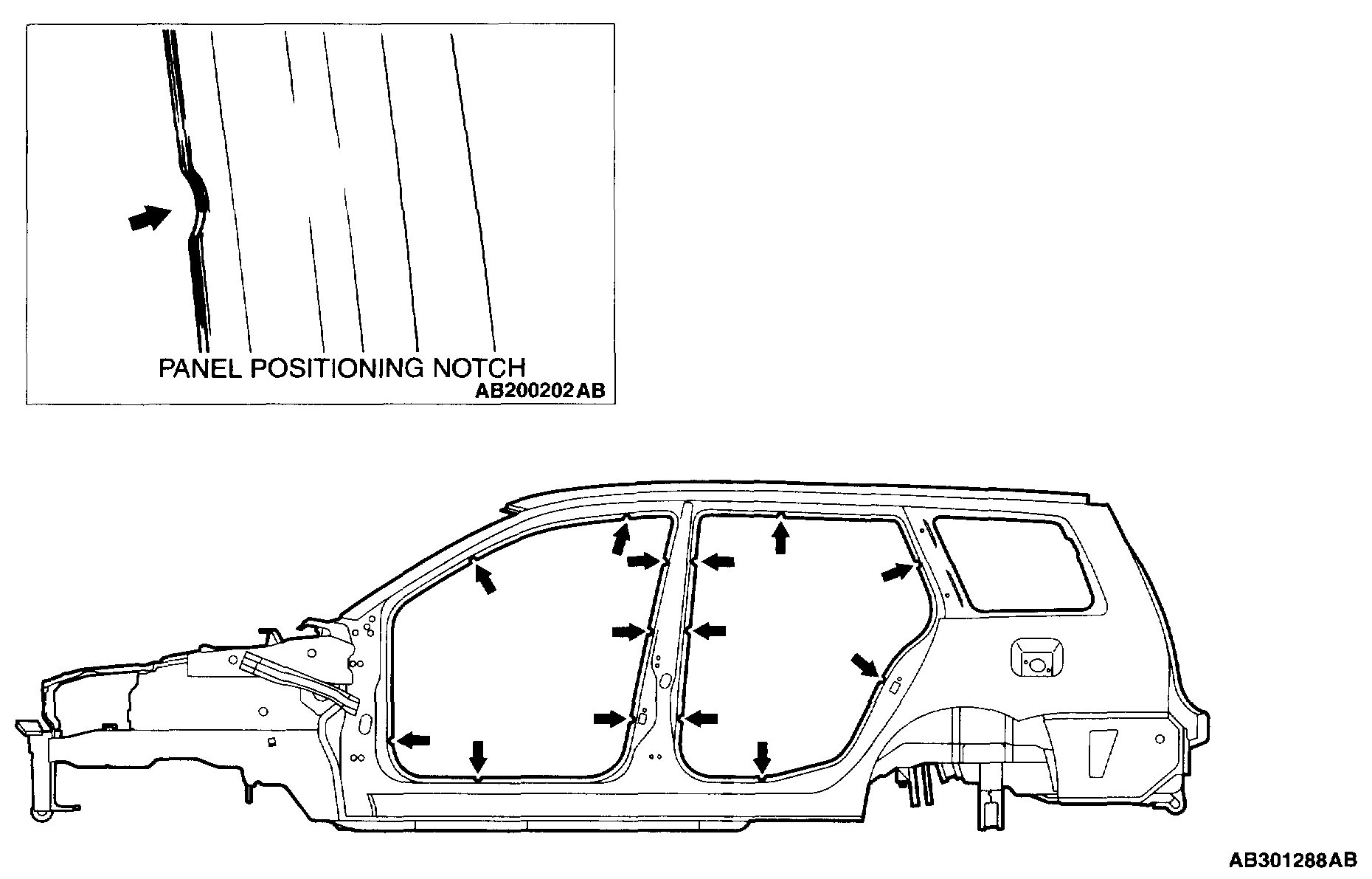

SIDE STRUCTURE
A panel positioning cut-out has been added on the door opening to improve assembling workability when replacing the panel.

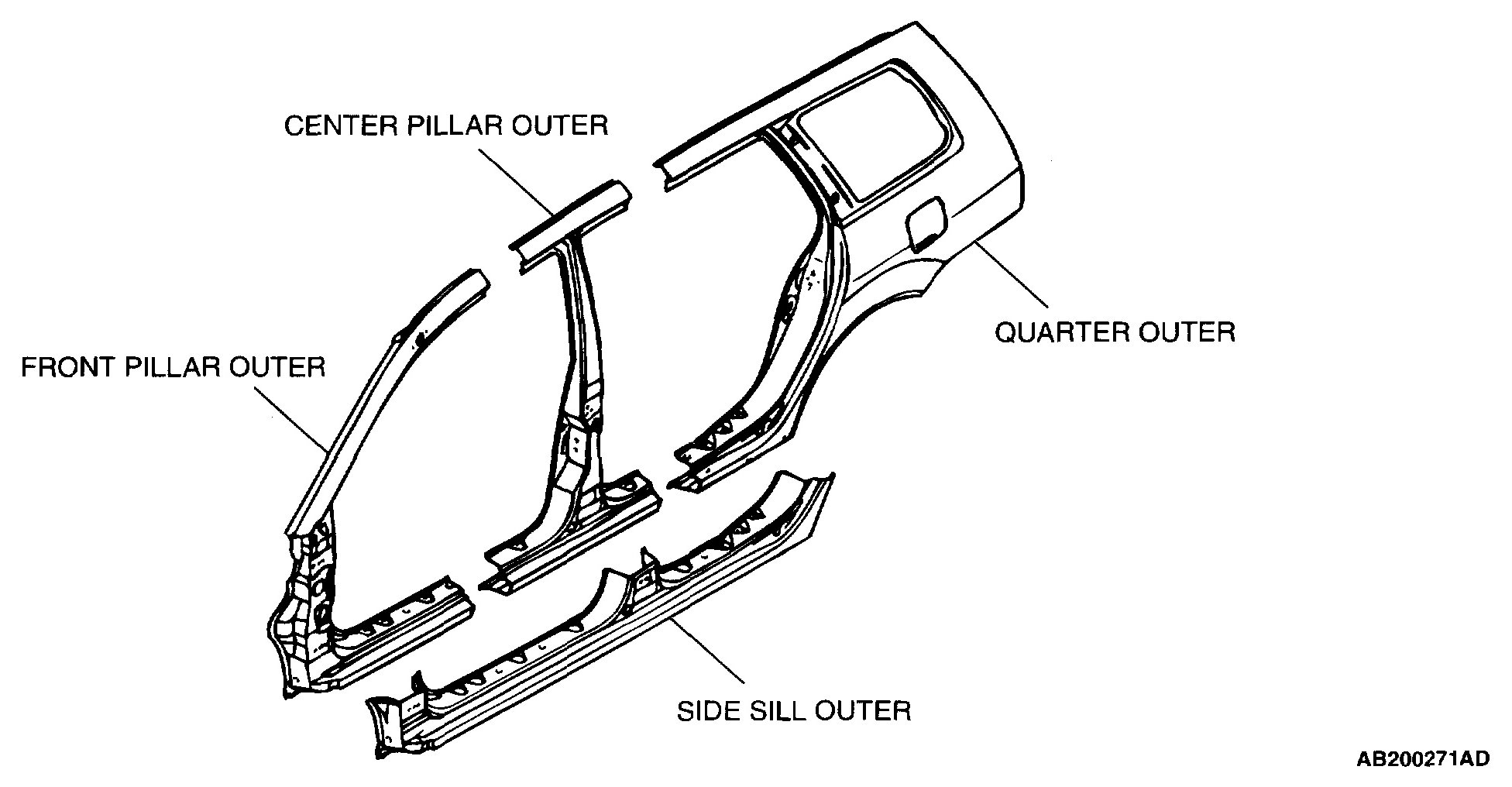

SIDE OUTER PANEL
The extra parts are supplied in 4 different cut forms as a result of employing the integrated side-frame side outer panel.
