Interior Moulding / Trim: Service and Repair

TRIMS

REMOVAL AND INSTALLATION

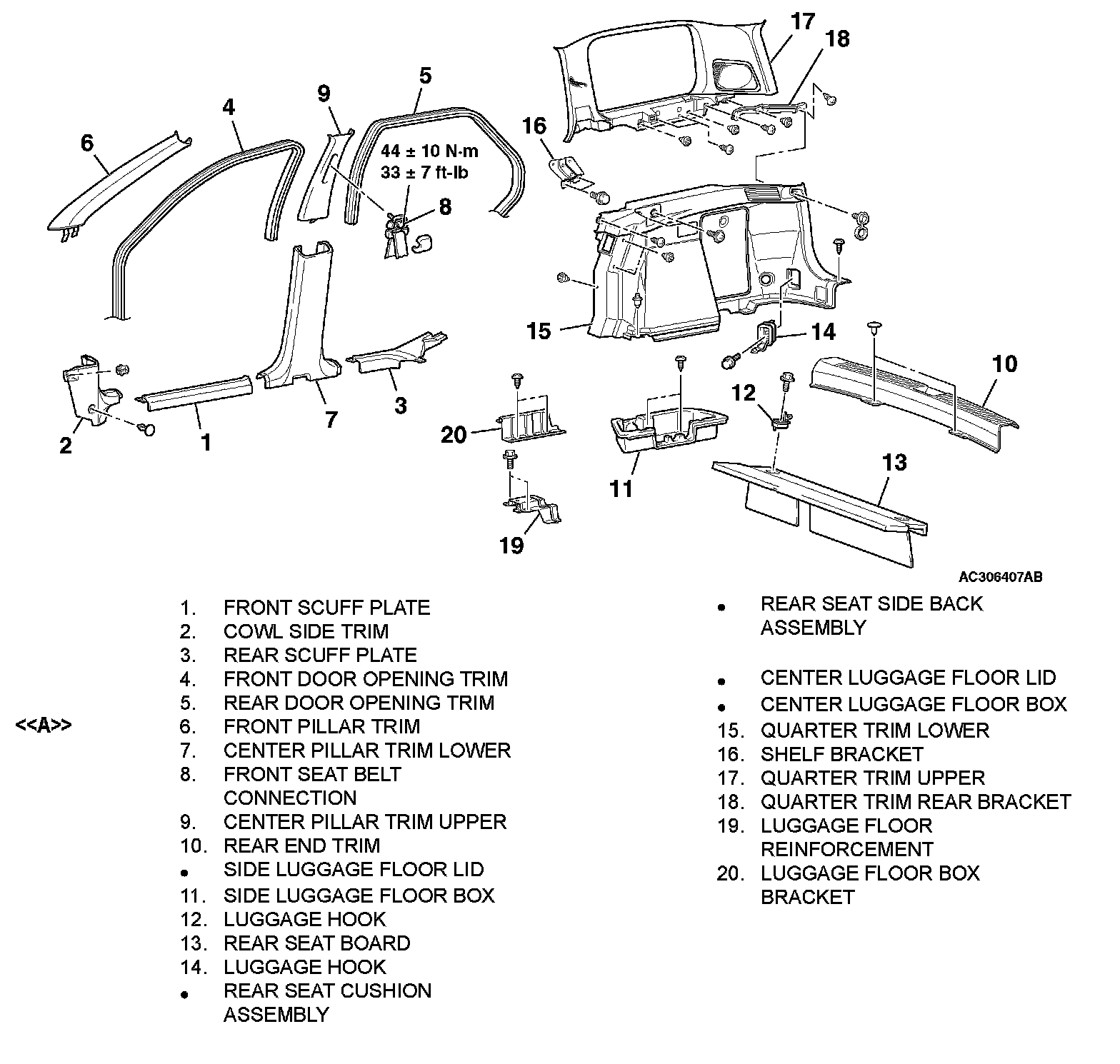

Removal Steps 1-20:

Clip Position:

Required Special Tool:
- MB990784: Ornament remover

REMOVAL SERVICE POINT

[[A]] FRONT PILLAR TRIM REMOVAL






Release the clip to pull towards the direction shown in the illustration and remove the front pillar trim.
