Cruise Control Switch: Testing and Inspection

AUTO-CRUISE CONTROL SWITCH CHECK

1. Remove the auto-cruise control switch.

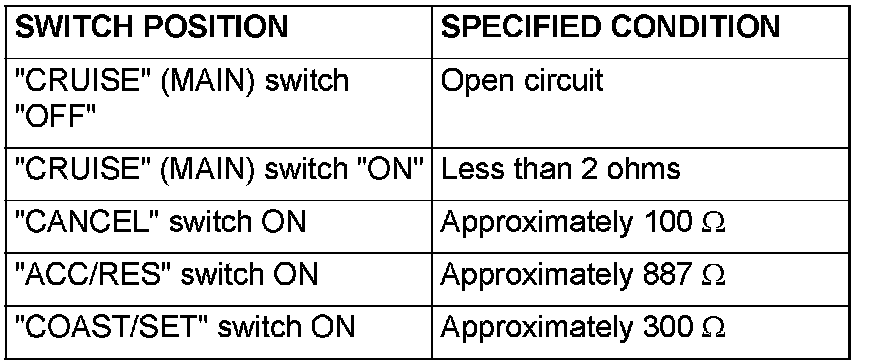

2. Measure the resistance between terminal 2 and terminal 3 when each of the "COAST/SET", "ACC/RES", "CANCEL" and "CRUISE" (MAIN) switches is pressed. If the values measured at the time correspond to those in the table, the resistance values are correct.
