Pinout Values and Diagnostic Parameters

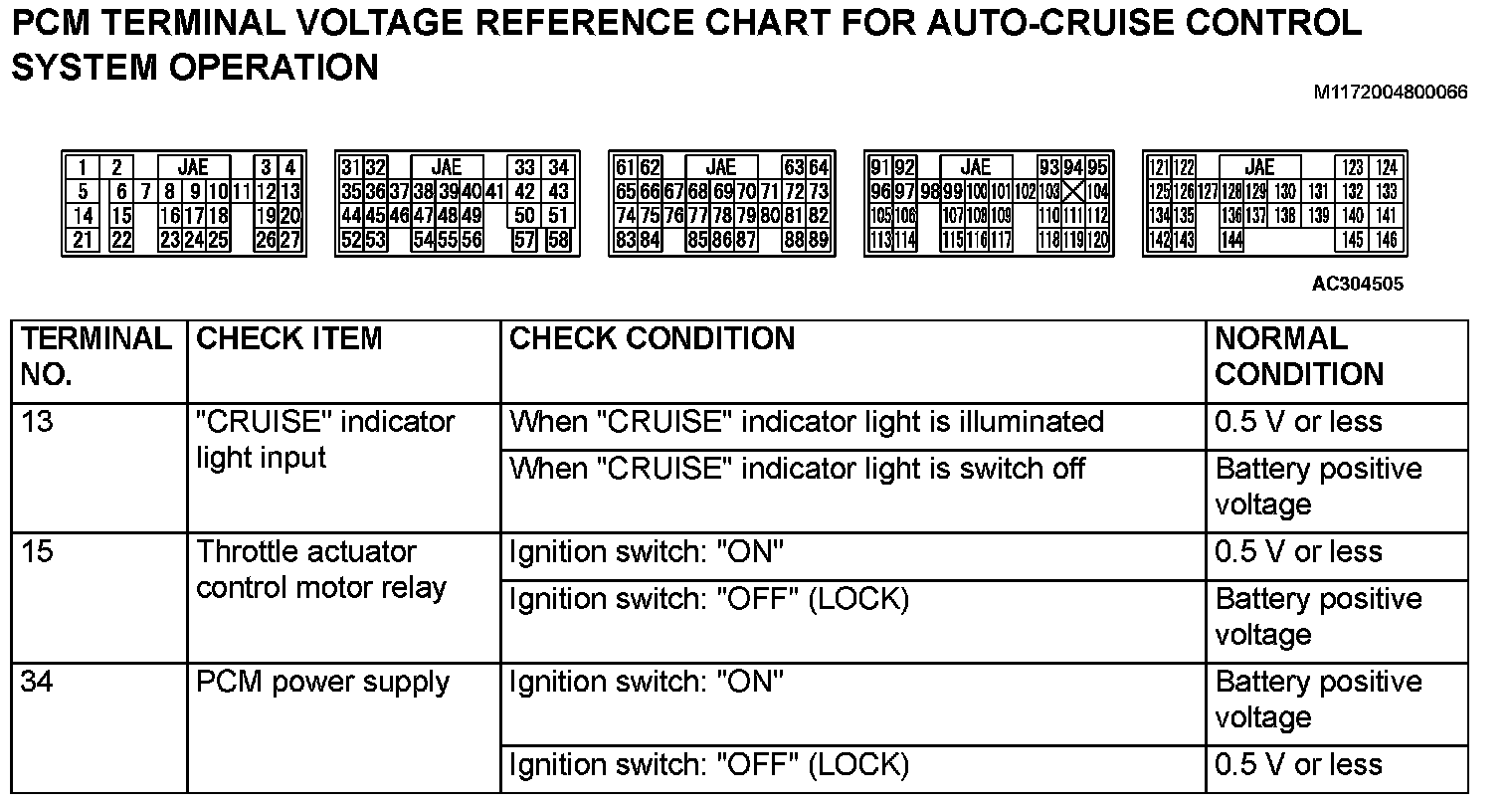

PCM Terminal Voltage Reference Chart For Auto-Cruise Control System Operation - Part 1:

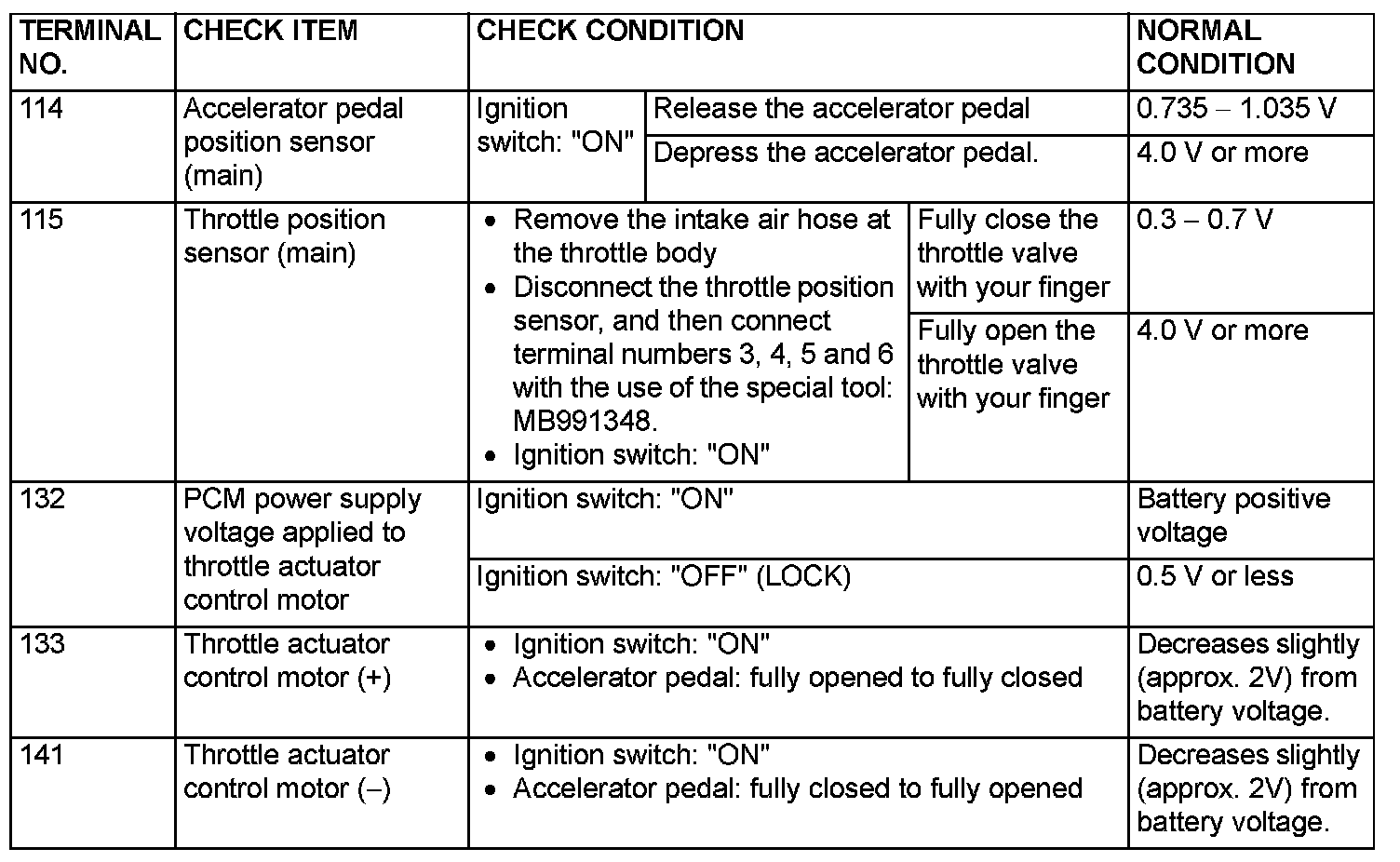

PCM Terminal Voltage Reference Chart For Auto-Cruise Control System Operation - Part 2:



PCM Terminal Voltage Reference Chart For Auto-Cruise Control System Operation - Part 3:
