Cruise Control

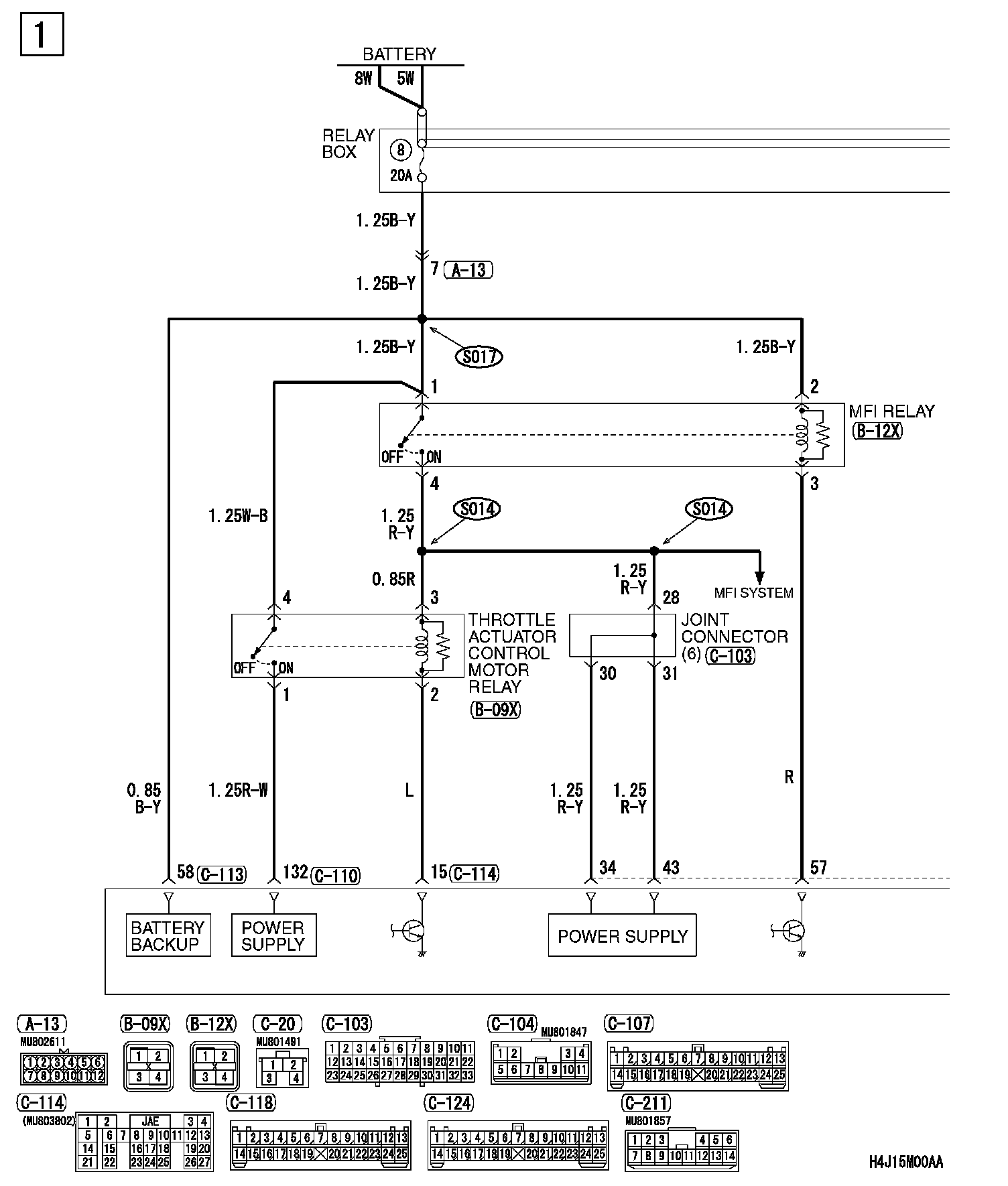

Auto-Cruise Control System Part 1:

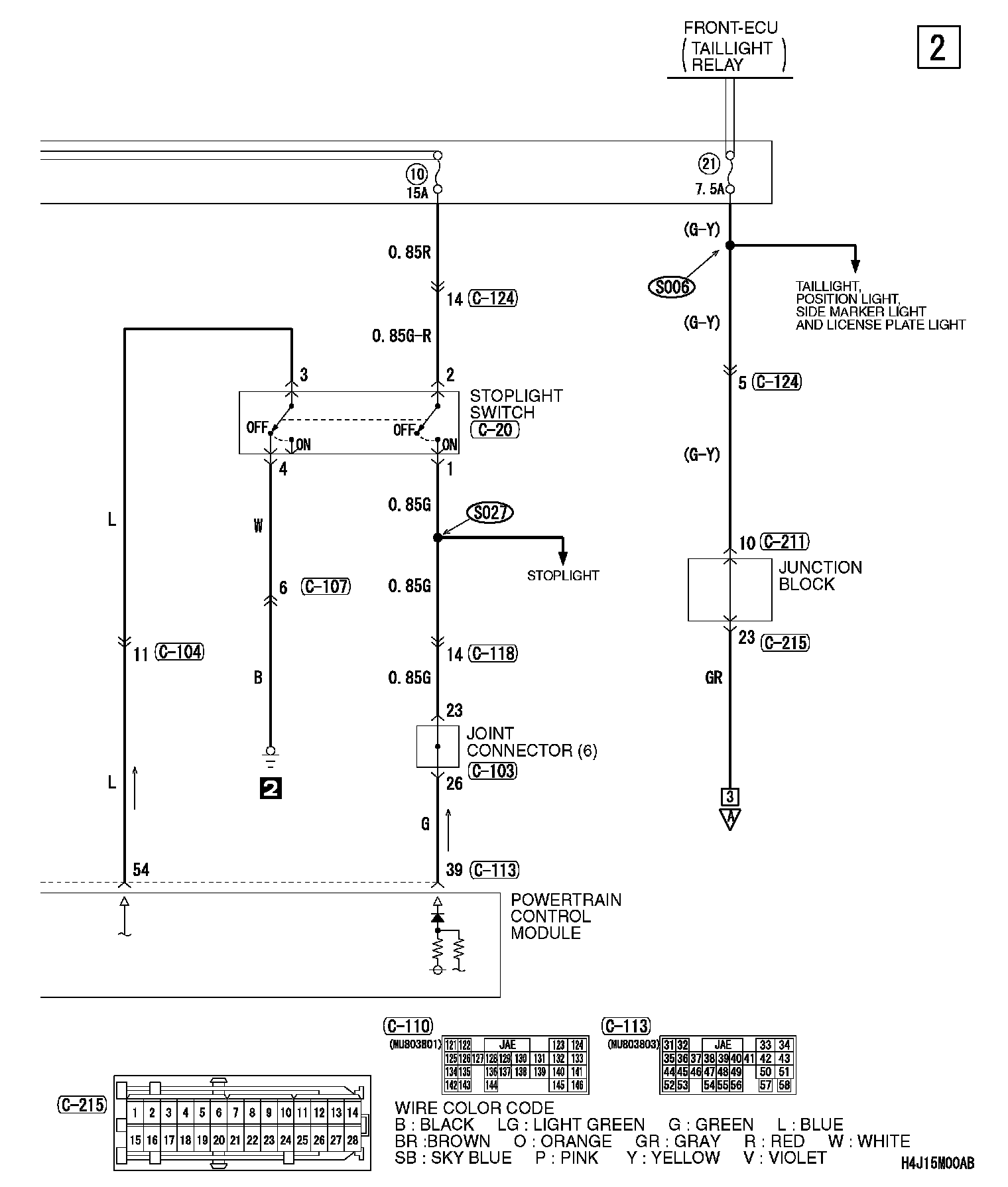

Auto-cruise Control System Part 2:

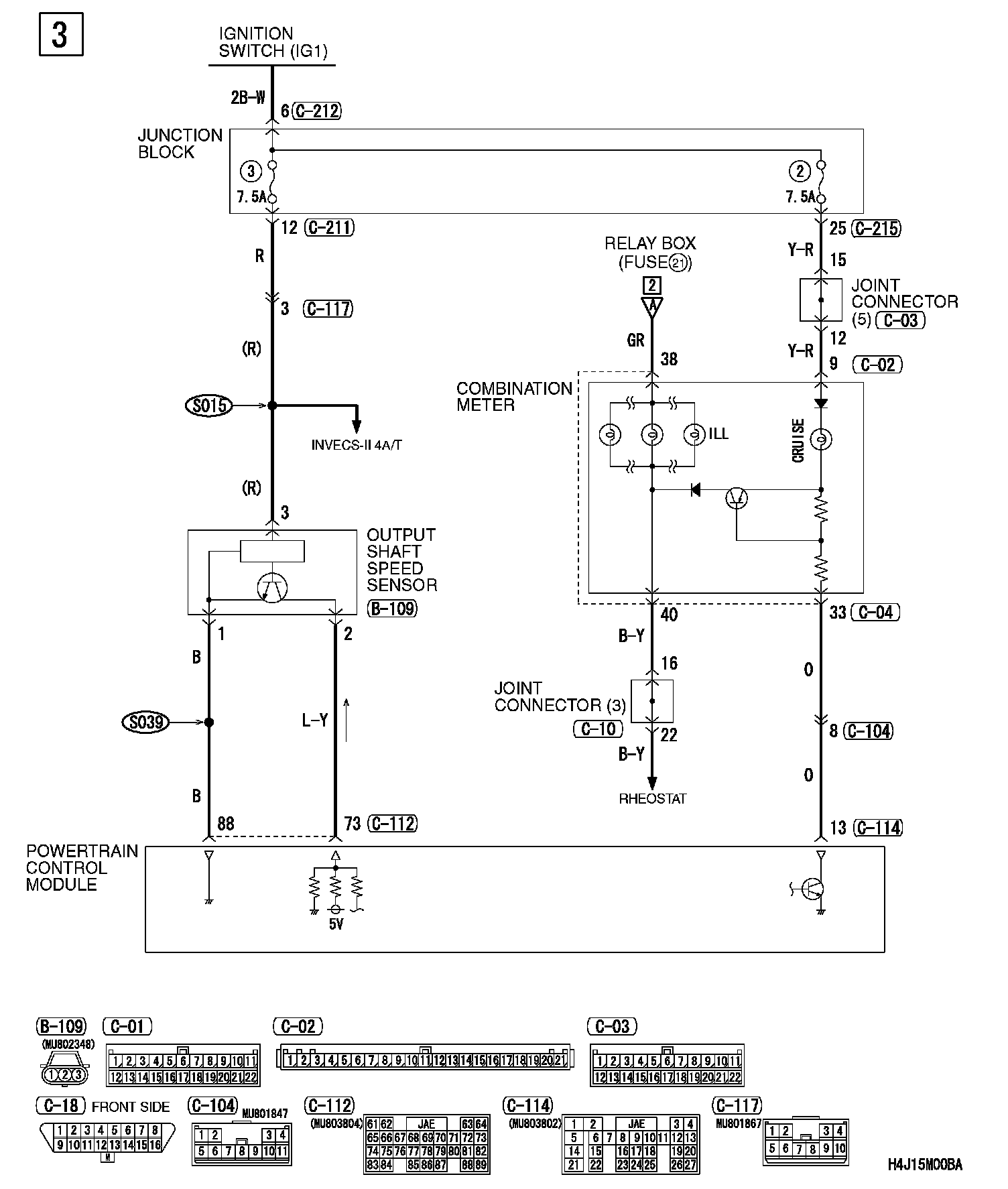

Auto-Cruise Control System Part 3:

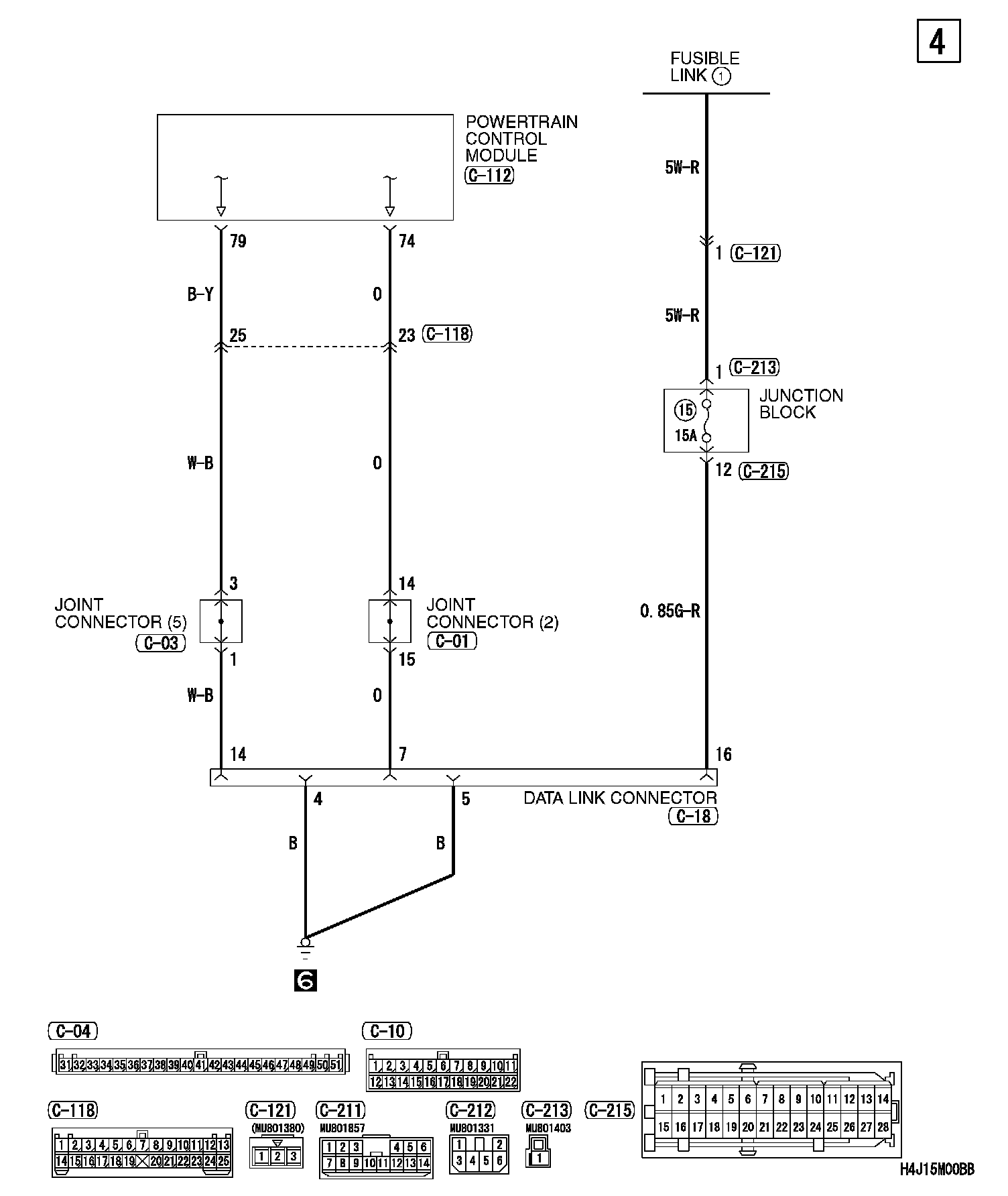

Auto-cruise Control System Part 4:

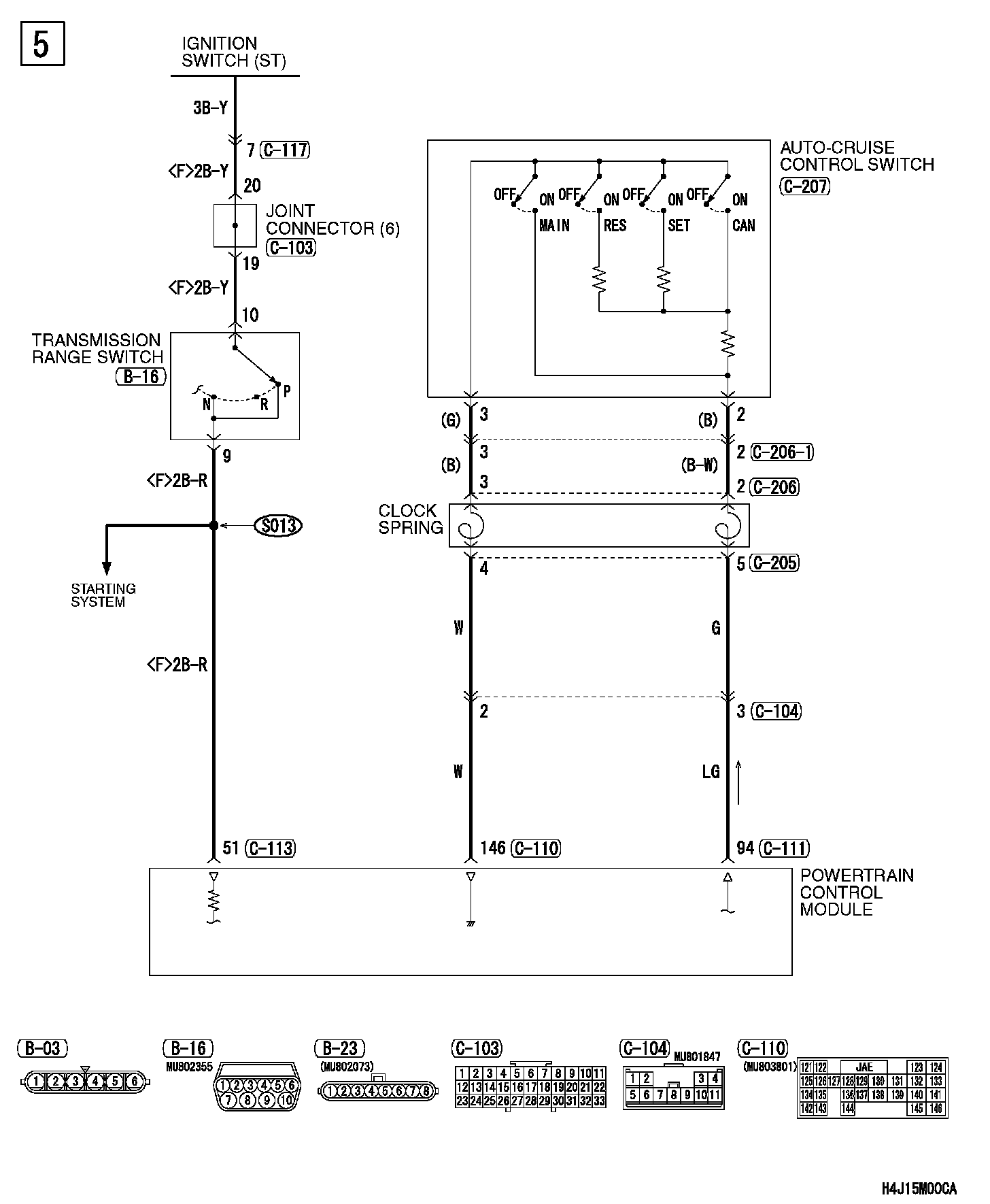

Auto-cruise Control System Part 5:

Auto-Cruise Control System Part 6:

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
