Rear Wiper and Washer

REAR WIPER AND WASHER

REMOVAL AND INSTALLATION

Removal Steps 1-4:

INSTALLATION SERVICE POINTS

]]A[[ REAR WIPER ARM AND BLADE ASSEMBLY INSTALLATION

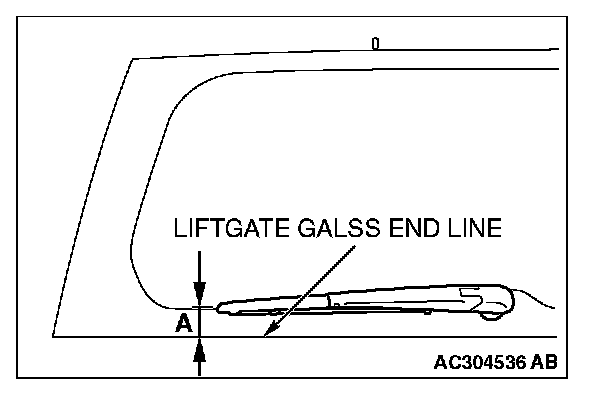

Before installing the rear wiper arm and blade assembly, operate the rear wiper motor so that the motor stops at the predetermined park position. Install the rear wipe arm and blade assembly and adjust the rear wiper blade position so that the blade end stops at the predetermined position (standard position).

Standard value: (A) 42 ± 5 mm (1.68 ± 0.20 inch)

]]B[[ WIPER BLADE INSTALLATION

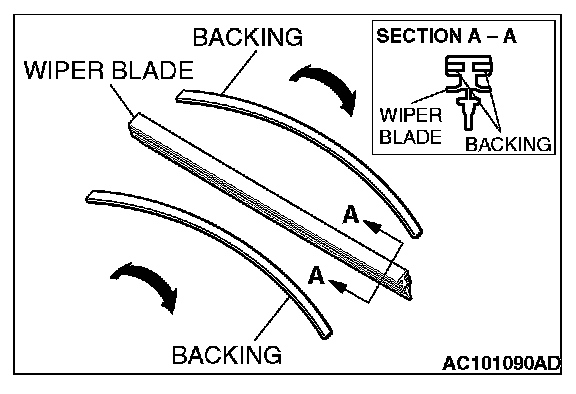

CAUTION: Use a curved backing like that shown for the backing of a wiper blade to ensure sustained wiper wiping performance.
